LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

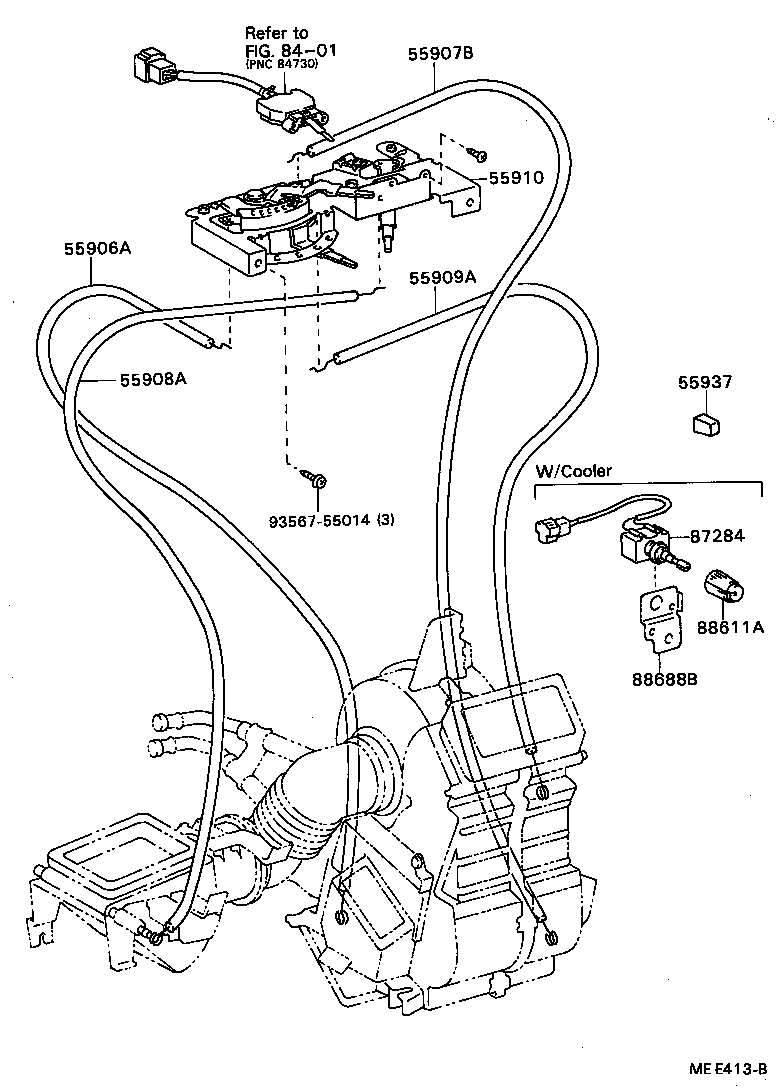

ILLUST NO. 1 OF 2(8405- )

Click highlighted areas on diagram

diagram 55906A 55907B 55908A 55909A 55910 55937 8401 87284 88611A 88688B 9356755014
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-87602

LD2#

 1
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-87603

LD2#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-87603

LD2#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-87601

LD2#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55902-87601

LD2#

 1
55937 - KNOB, HEATER CONTROL LEVER
55937-87205

LD2#

 4
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-87601

LD2#

 1
88611A - KNOB, COOLER CONTROL SWITCH
88623-87601

LD2#

 1
88688B - BRACKET, AIR CONDITIONER CONTROL
88649-87612

LD2#

 1
Common parts
93567-55014
Linked diagrams
8401

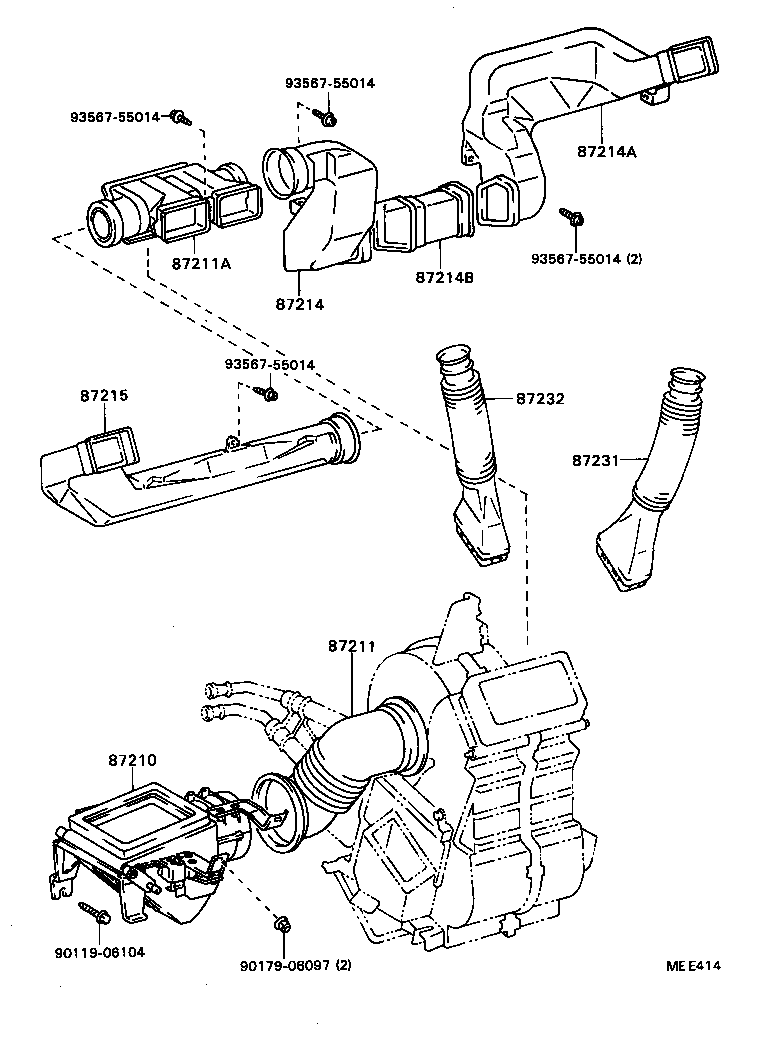

ILLUST NO. 2 OF 2(8405- )

Click highlighted areas on diagram

diagram 87210 87211 87211A 87214 87214A 87214B 87215 87231 87232 9011906104 9017906097 9356755014 9356755014 9356755014 9356755014
Part # Description Qty Price
87210 - DAMPER ASSY, AIR
87210-87601

LD2#

 1
87211 - DUCT, AIR, NO.1
87211-87602

LD2#

 1
87211A - DUCT, AIR, NO.2
55835-87602

LD2#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55084-87601

LD2#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55086-87601

LD2#

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55844-87601

LD2#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-87601

LD2#

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-87604

LD2#

 2
87232 - HOSE, HEATER DEFROSTER, LH
87231-87604

LD2#

 2
Common parts
90119-06104
90179-06097
93567-55014
