LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

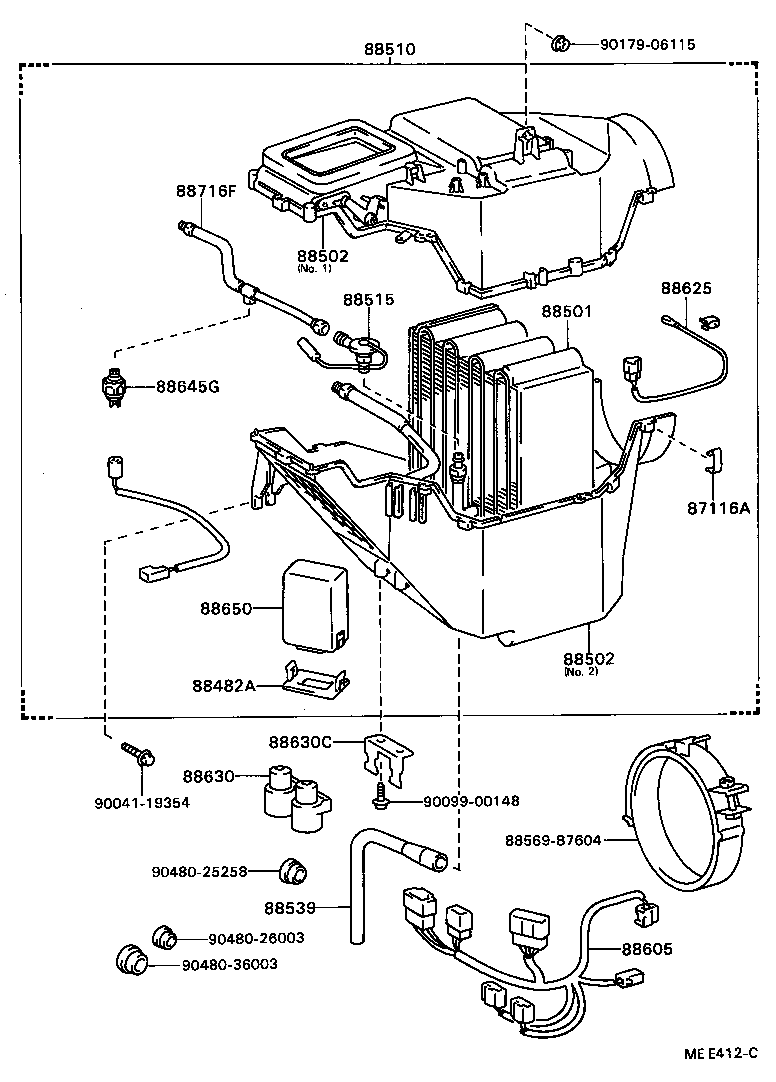

Click highlighted areas on diagram

diagram 87116A 88482A 88501 88502 88502 88510 88515 88539 8856987604 88605 88625 88630 88630C 88645G 88650 88716F 9004119354 9009900148 9017906115 9048025258 9048026003 9048036003
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LD2#

 9
88482A - COVER
88482-87601

LD2#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-87601

LD2#

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88521-87602

LD2#

NO.2

 1
88521-87601

LD2#

NO.1

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88521-87602

LD2#

NO.2

 1
88521-87601

LD2#

NO.1

 1
88510 - UNIT ASSY, COOLER
88510-87607

LD2#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

LD2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-87604

LD2#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-87612

LD2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

LD2#

 1
88630 - RELAY ASSY, COOLER
88630-95702

LD2#

 2
88630C - BRACKET, COOLER RELAY
88688-87612

LD2#

 1
88645G - SWITCH, PRESSURE
88645-12020

LD2#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87601

LD2#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-87601

LD2#

 1
Common parts
88569-87604
90041-19354
90099-00148
90179-06115
90480-25258
90480-26003
90480-36003
