LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

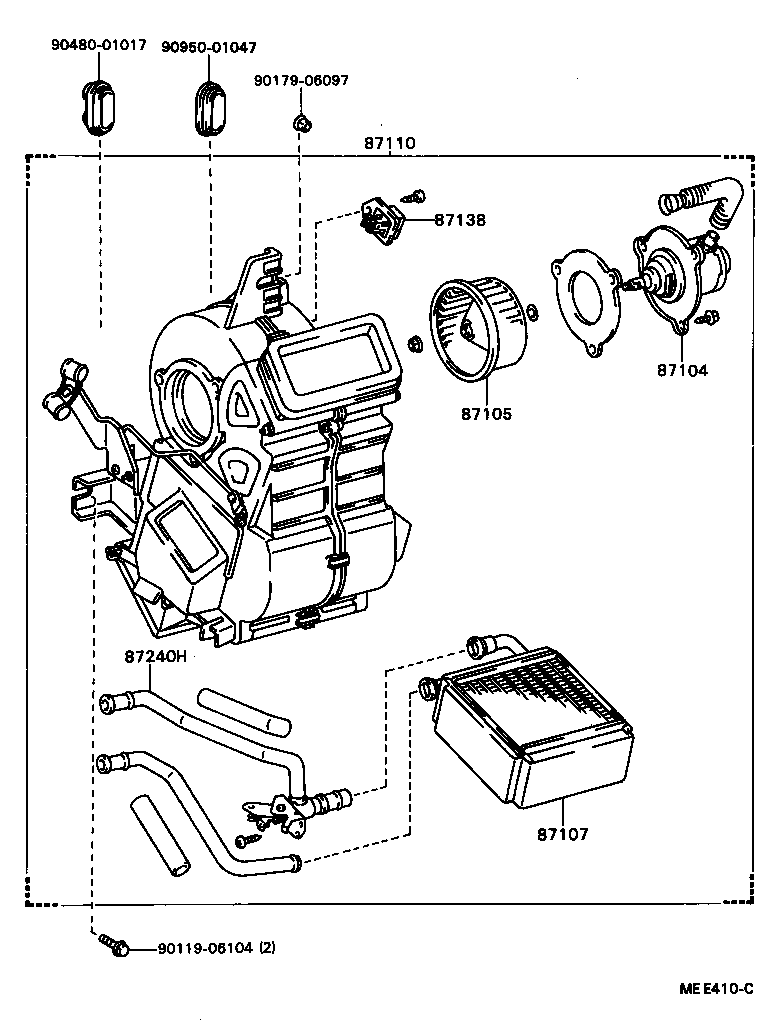

ILLUST NO. 1 OF 2(8405- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 87240H 9011906104 9017906097 9048001017 9095001047
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-87604

LD2#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12030

LD2#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-87604

LD2#

 1
87110 - HEATER ASSY
87110-87615

LD2#

 1
87138 - RESISTOR, HEATER BLOWER
87138-12090

LD2#

 1
87240H - VALVE ASSY, WATER UNIT
87240-87611

LD2#

RR HEATER

 1
87240-87609

LD2#

FR HEATER

 1
Common parts
90119-06104
90179-06097
90480-01017
90950-01047

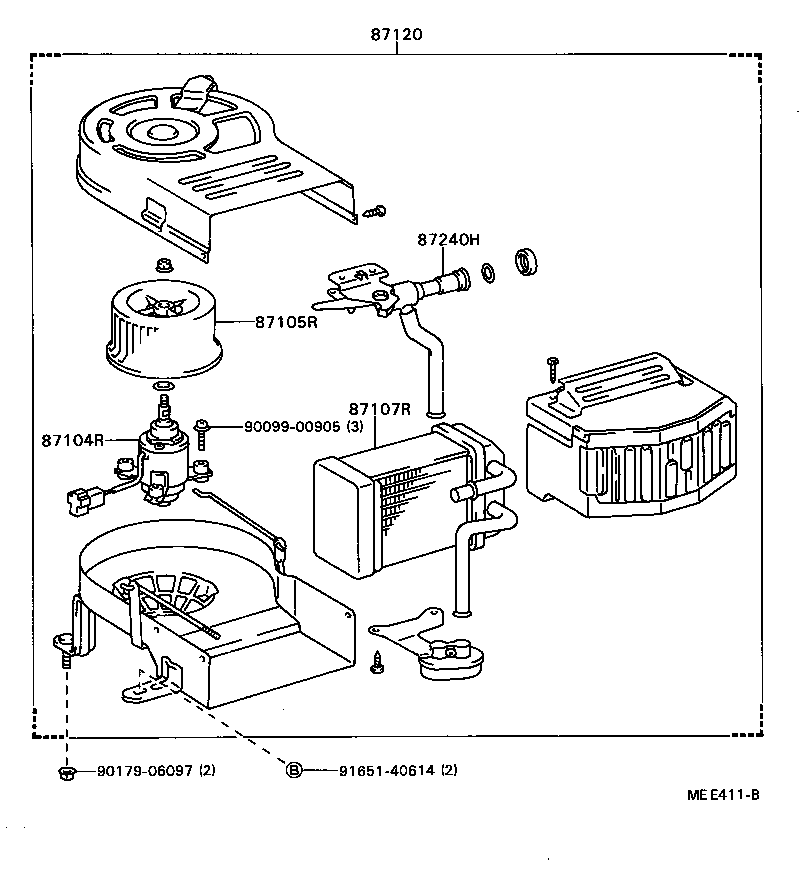

ILLUST NO. 2 OF 2(8405- )

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87240H 9009900905 9017906097 9165140614
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

LD2#

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

LD2#

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-87606

LD2#

 1
87120 - HEATER ASSY, REAR
87110-87618

LD2#

 1
87240H - VALVE ASSY, WATER UNIT
87240-87611

LD2#

RR HEATER

 1
87240-87609

LD2#

FR HEATER

 1
Common parts
90099-00905
90179-06097
91651-40614
