LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

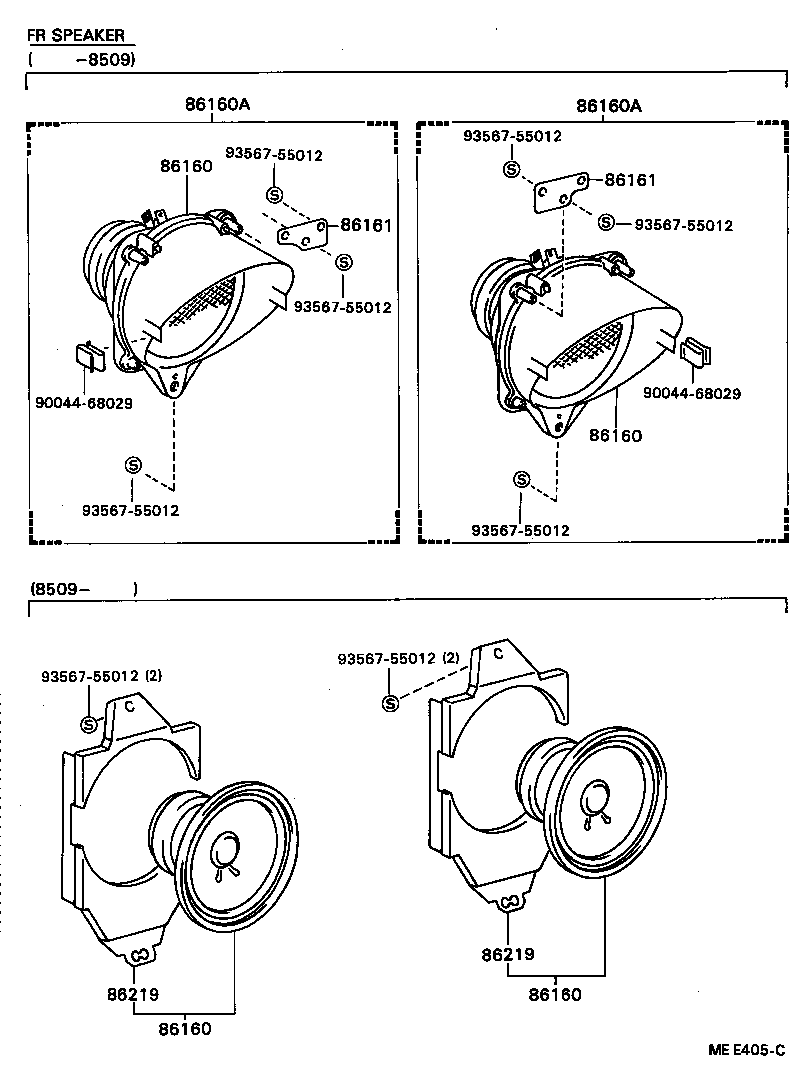

ILLUST NO. 1 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87604 |
LD20 |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87604 |
LD20 |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87604 |
LD20 |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87604 |
LD20 |
2 | ||
| 86160A - SPEAKER SET, FRONT | ||||
| 86150-29075 |
LD20 |
1 | ||
| 86160A - SPEAKER SET, FRONT | ||||
| 86150-29075 |
LD20 |
1 | ||
| 86161 - BRACKET, SPEAKER, FRONT NO.1 | ||||
| 86219-87602 |
LD20 |
2 | ||
| 86161 - BRACKET, SPEAKER, FRONT NO.1 | ||||
| 86219-87602 |
LD20 |
2 | ||
| Common parts | ||||
| 90044-68029 | ||||
| 93567-55012 | ||||

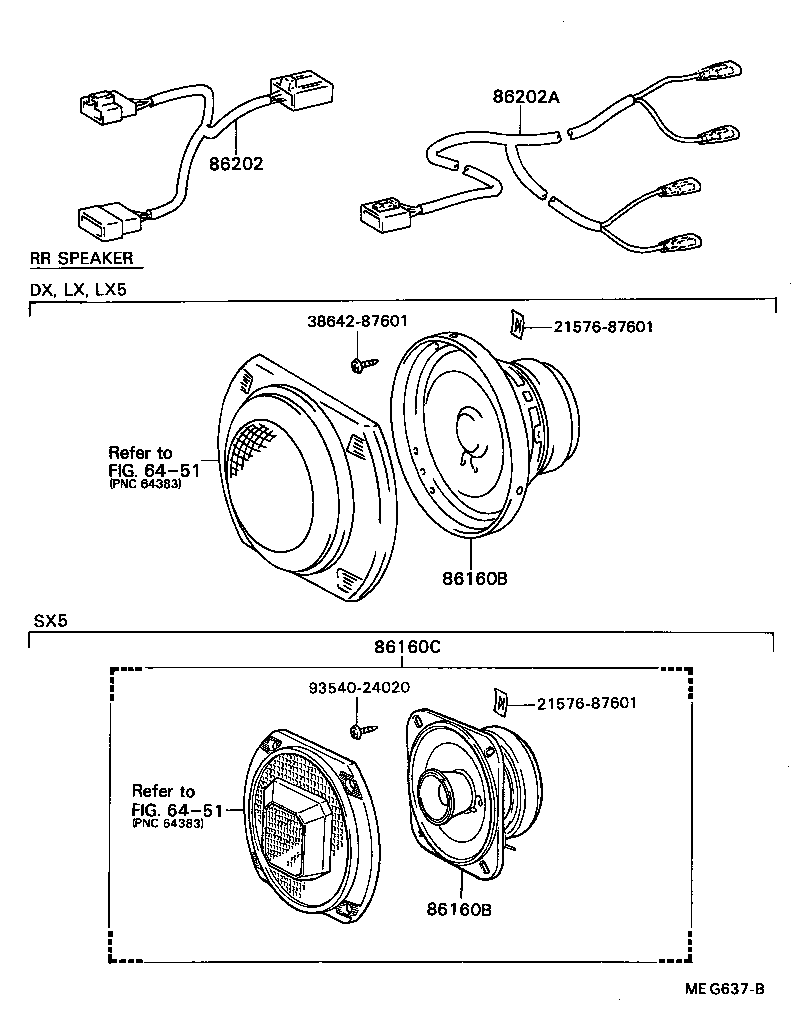

ILLUST NO. 2 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-87610 |
LD2#..DX,LX,LX5 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-87610 |
LD2#..DX,LX,LX5 |
2 | ||
| 86202 - WIRE, SPEAKER, NO.1 | ||||
| 86202-87604 |
LD20 |
1 | ||
| 86202-87602 |
LD2# |
1 | ||
| 86202A - WIRE, SPEAKER, NO.2 | ||||
| 86205-87601 |
LD2# |
1 | ||
| Common parts | ||||
| 21576-87601 | ||||
| 38642-87601 | ||||
| 93540-24020 | ||||
| Linked diagrams | ||||
| 6451 | ||||
