LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

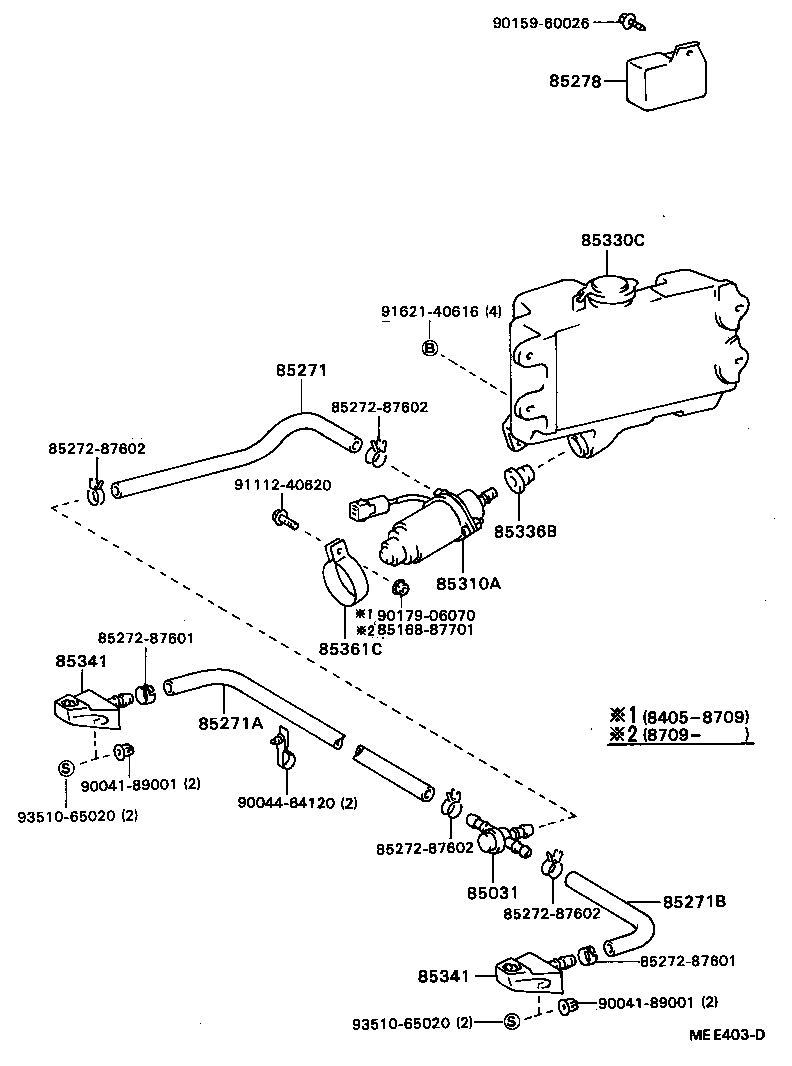

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-12010 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90445-14022 |
LD2#..LX,LX5,SX5 *H,L=350 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85271-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85271-87602 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-87101 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85310-22070 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85330C - JAR ASSY, HEADLAMP CLEANER WASHER | ||||
| 85330-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85336B - PACKING, HEADLAMP CLEANER WASHER | ||||
| 85336-10010 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-87601 |
LD2#..LX,LX5,SX5 |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85044-87601 |
LD2#..LX,LX5,SX5 |
2 | ||
| 85361C - BRACKET, WASHER | ||||
| 85361-16050 |
LD2#..LX,LX5,SX5 |
1 | ||
| Common parts | ||||
| 85168-87701 | ||||
| 85272-87601 | ||||
| 85272-87602 | ||||
| 90041-89001 | ||||
| 90044-64120 | ||||
| 90159-60026 | ||||
| 90179-06070 | ||||
| 91112-40620 | ||||
| 91621-40616 | ||||
| 93510-65020 | ||||
