LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

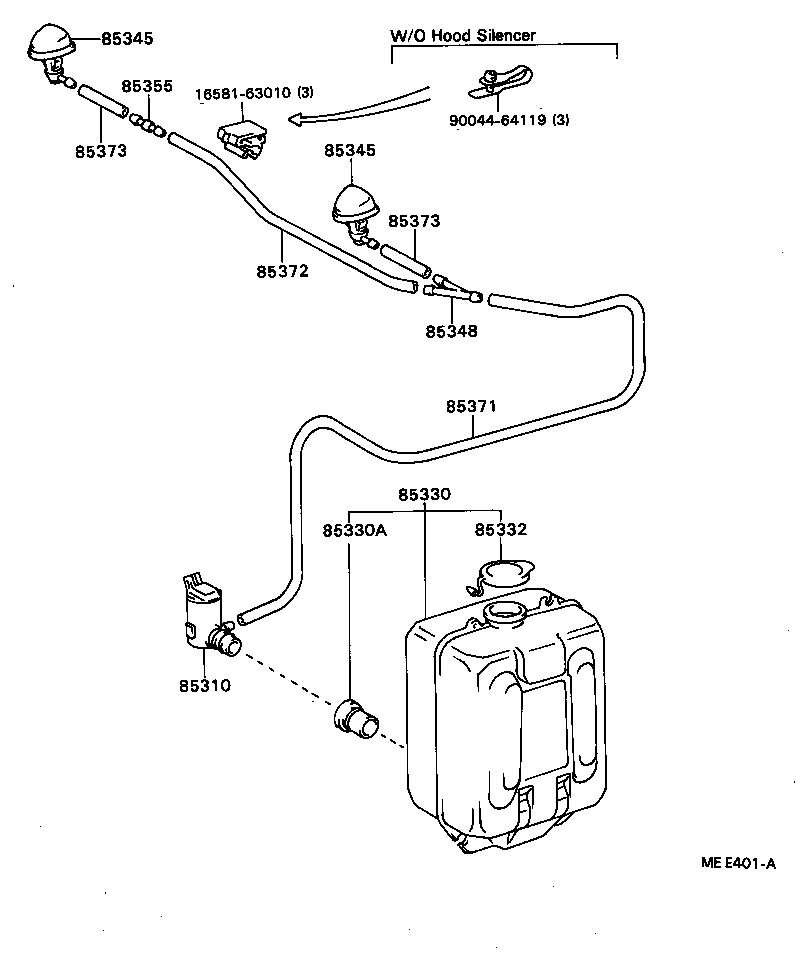

Click highlighted areas on diagram

diagram 1658163010 85310 85330 85330A 85332 85345 85345 85348 85355 85371 85372 85373 85373 9004464119
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

LD2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-87603

LD2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

LD2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-30050

LD2#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87603

LD2#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-87603

LD2#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LD2#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

LD2#

 1
85031-14080

LD2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

LD2#

*H,L=910

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

LD2#

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LD2#

*H,L=50

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LD2#

*H,L=50

 2
Common parts
16581-63010
90044-64119
