LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

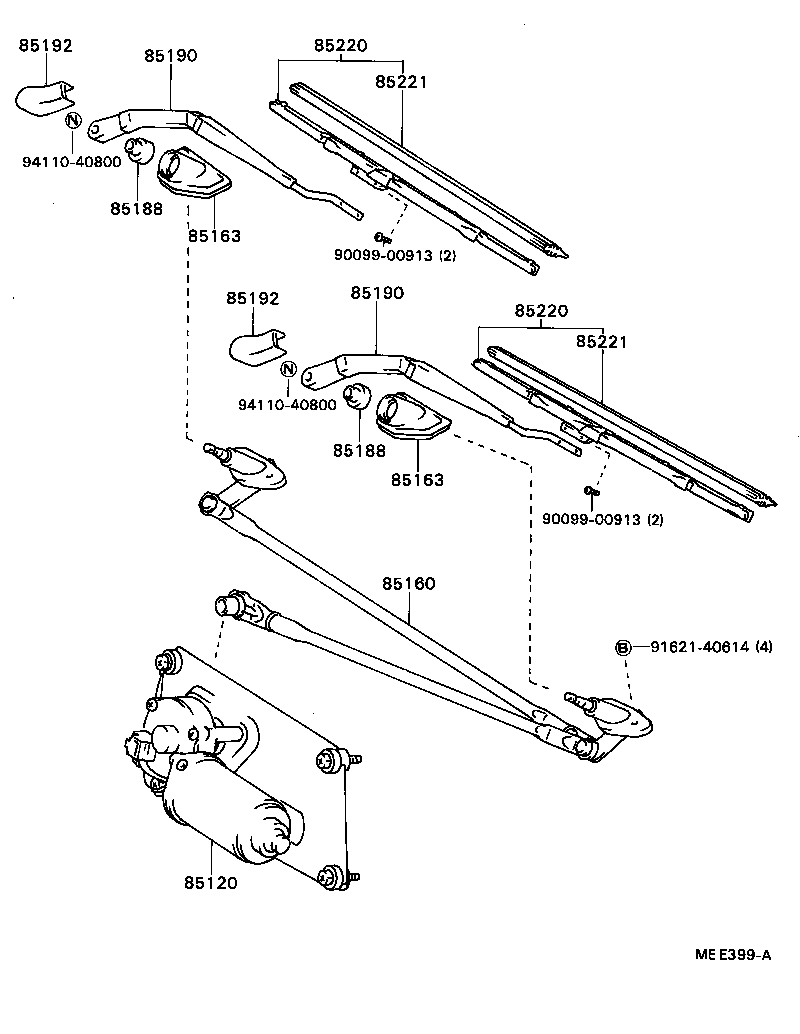

Click highlighted areas on diagram

diagram 85120 85160 85163 85163 85188 85188 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9162140614 9411040800 9411040800
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-87608

LD2#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-87605

LD2#..V,WG

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85176-87601

LD2#

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85176-87601

LD2#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85247-87601

LD2#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85247-87601

LD2#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87605

LD2#..V,WG

RH

 1
85210-87601

LD2#..V,WG

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87605

LD2#..V,WG

RH

 1
85210-87601

LD2#..V,WG

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-87601

LD2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-87601

LD2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22380

LD2#..V,WG

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22380

LD2#..V,WG

 2
85221 - BLADE, WINDSHIELD WIPER
85221-89103

LD2#..V,WG

 2
85221 - BLADE, WINDSHIELD WIPER
85221-89103

LD2#..V,WG

 2
Common parts
90099-00913
91621-40614
94110-40800
