LD20V-MN (1984)
Toyota Blizzard

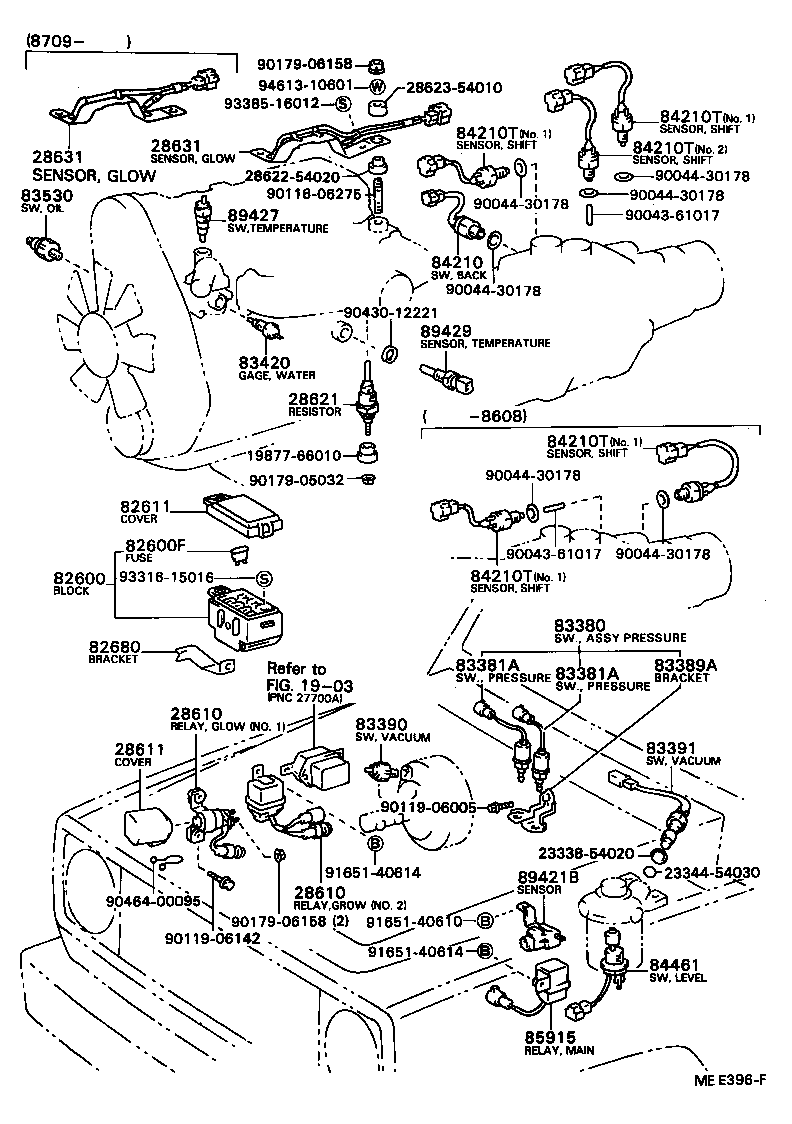

ILLUST NO. 1 OF 4(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54080 |
2L#..LD2# NO.1 |
1 | ||
| 28610-54090 |
2L#..LD2# NO.2 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54080 |
2L#..LD2# NO.1 |
1 | ||
| 28610-54090 |
2L#..LD2# NO.2 |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-54011 |
2L#..LD2# |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-54031 |
2L..LD20 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54010 |
2L#..LD2# |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-54010 |
2L#..LD2# |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-87610 |
LD2# COWL SIDE,NO.1 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LD2# 10A,10A |
2 | ||
| 90982-07011 |
LD2# 30A,ç·‘,30A |
1 | ||
| 90982-09005 |
LD2# 7.5A,7.5A |
2 | ||
| 90982-09003 |
LD2# 15A,15A |
10 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
LD2# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22060 |
LD20 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LD2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
LD20 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-87601 |
LD2# |
1 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-87603 |
LD20 NO.1 |
2 | ||
| 84220-87604 |
LD2# NO.1 |
2 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-87603 |
LD20 NO.1 |
2 | ||
| 84220-87604 |
LD2# NO.1 |
2 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-87603 |
LD20 NO.1 |
2 | ||
| 84220-87604 |
LD2# NO.1 |
2 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-87603 |
LD20 NO.1 |
2 | ||
| 84220-87604 |
LD2# NO.1 |
2 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-87603 |
LD20 NO.1 |
2 | ||
| 84220-87604 |
LD2# NO.1 |
2 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
LD2# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-14050 |
LD2# |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 83430-96440 |
LD2# W/COOLER |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
LD2# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 90043-61017 | ||||
| 90044-30178 | ||||
| 90116-06275 | ||||
| 90119-06005 | ||||
| 90119-06142 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90464-00095 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 93316-15016 | ||||
| 93385-16012 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 1903 | ||||

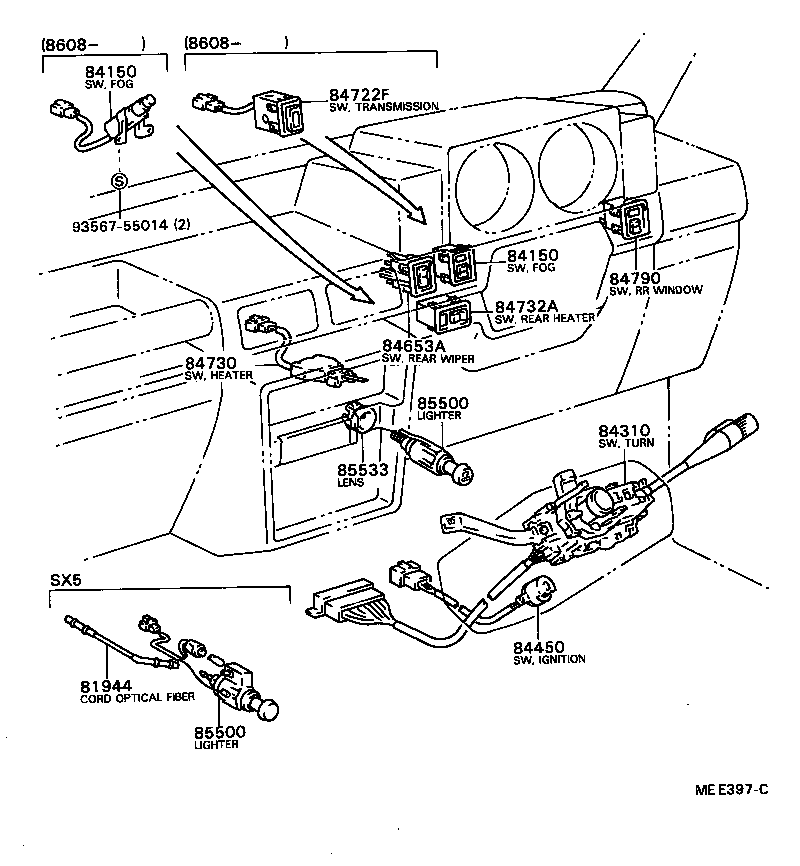

ILLUST NO. 2 OF 4(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-87602 |
LD2# |
1 | ||
| 84160-87703 |
LD20..DSL |
1 | ||
| 84160-87703 |
LD2# |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-87602 |
LD2# |
1 | ||
| 84160-87703 |
LD20..DSL |
1 | ||
| 84160-87703 |
LD2# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-87606 |
LD2#..V,WG |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-87604 |
LD2# |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84650-87701 |
LD2#..V,WG |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84223-87601 |
LD2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-87602 |
LD2# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-87603 |
LD2# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-87702 |
LD2#..V,WG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87603 |
LD2#..DX,LX,LX5 |
1 | ||
| 85500-87703 |
LD20 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87603 |
LD2#..DX,LX,LX5 |
1 | ||
| 85500-87703 |
LD20 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87601 |
LD20 |
1 | ||
| Common parts | ||||
| 93567-55014 | ||||

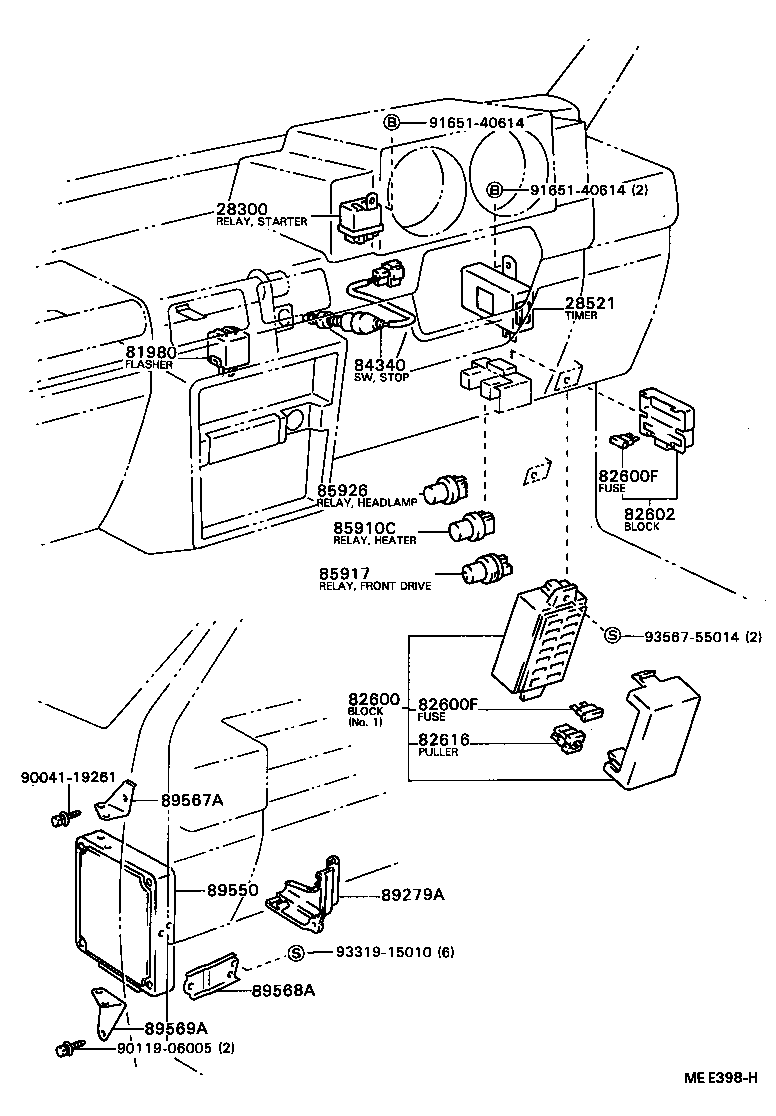

ILLUST NO. 3 OF 4(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L#..LD2# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54181 |
2L..LD20 |
1 | ||
| 28521-54180 |
2L..LD20 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-87704 |
LD2# |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-87610 |
LD2# COWL SIDE,NO.1 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LD2# 10A,10A |
2 | ||
| 90982-07011 |
LD2# 30A,ç·‘,30A |
1 | ||
| 90982-09005 |
LD2# 7.5A,7.5A |
2 | ||
| 90982-09003 |
LD2# 15A,15A |
10 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
LD2# 10A,10A |
2 | ||
| 90982-07011 |
LD2# 30A,ç·‘,30A |
1 | ||
| 90982-09005 |
LD2# 7.5A,7.5A |
2 | ||
| 90982-09003 |
LD2# 15A,15A |
10 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-87701 |
LD2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-87601 |
LD2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LD2# |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02004 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-19261 | ||||
| 90119-06005 | ||||
| 91651-40614 | ||||
| 93319-15010 | ||||
| 93567-55014 | ||||

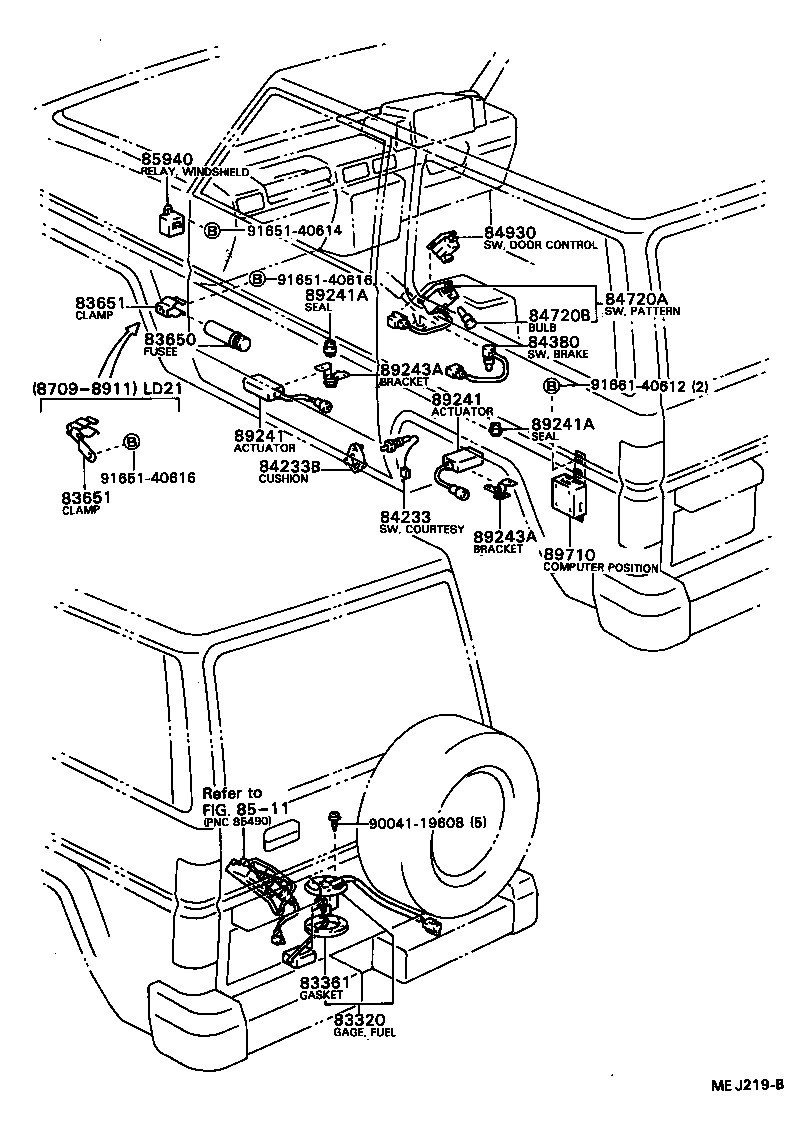

ILLUST NO. 4 OF 4(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 77501-87606 |
LD2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-87201 |
LD2# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
LD2# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90044-65032 |
LD20 |
1 | ||
| 90044-65032 |
LD2# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90044-65032 |
LD20 |
1 | ||
| 90044-65032 |
LD2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LD2# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
LD2# |
2 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87604 |
LD2# |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-87602 |
LD2#..LX,LX5,SX5 |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 90049-51072 |
LD2#..LX,LX5,SX5 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-87201 |
LD2# |
1 | ||
| 89241 - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-87603 |
LD2#..LX,LX5,SX5 FR OR RR |
4 | ||
| 89241-87601 |
LD20..LX FR |
2 | ||
| 89241-87602 |
LD20..LX RR |
2 | ||
| 89241 - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-87603 |
LD2#..LX,LX5,SX5 FR OR RR |
4 | ||
| 89241-87601 |
LD20..LX FR |
2 | ||
| 89241-87602 |
LD20..LX RR |
2 | ||
| 89241A - SEAL, DUST | ||||
| 90043-03069 |
LD2#..LX,LX5,SX5 |
4 | ||
| 89241A - SEAL, DUST | ||||
| 90043-03069 |
LD2#..LX,LX5,SX5 |
4 | ||
| 89243A - BRACKET, ABSORBER, CONTROL ACTUATOR | ||||
| 89245-87601 |
LD2#..LX,LX5,SX5 RR |
2 | ||
| 89244-87601 |
LD2#..LX,LX5,SX5 FR,LH |
1 | ||
| 89243-87601 |
LD2#..LX,LX5,SX5 FR,RH |
1 | ||
| 89243A - BRACKET, ABSORBER, CONTROL ACTUATOR | ||||
| 89245-87601 |
LD2#..LX,LX5,SX5 RR |
2 | ||
| 89244-87601 |
LD2#..LX,LX5,SX5 FR,LH |
1 | ||
| 89243-87601 |
LD2#..LX,LX5,SX5 FR,RH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| Common parts | ||||
| 90041-19608 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91661-40612 | ||||
| Linked diagrams | ||||
| 8511 | ||||
