LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

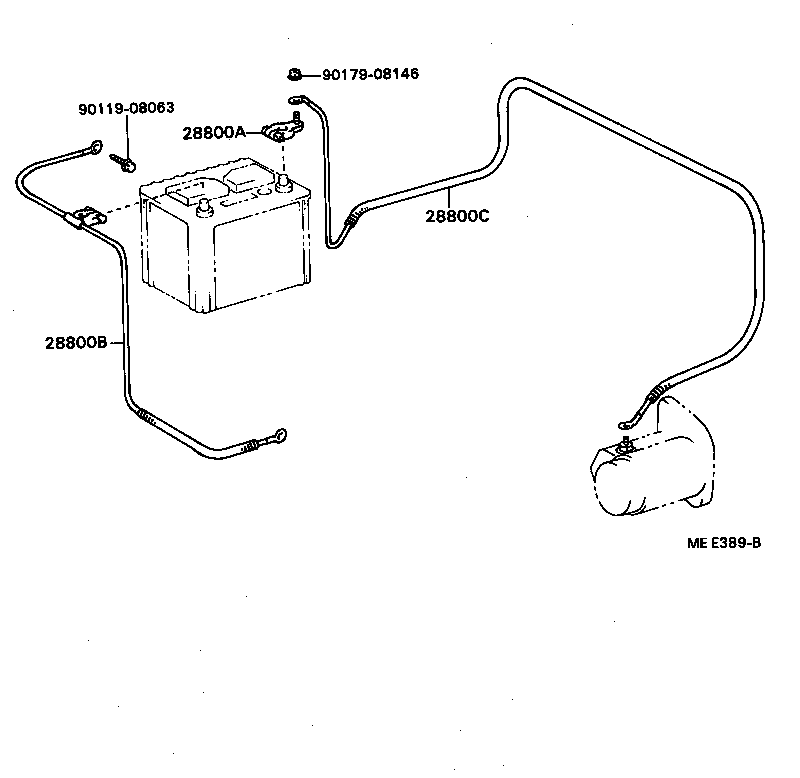

Click highlighted areas on diagram

diagram 28800A 28800B 28800C 9011908063 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

2L#..LD2#

 1
28800B - CABLE, BATTERY TO GROUND
82123-87601

2L#..LD2#

 1
82123-87603

2L#..LD2#

W/WINCH

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-87601

2L..LD20

 1
82122-87610

2L..LD20

 1
Common parts
90119-08063
90179-08146
