LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-8709)

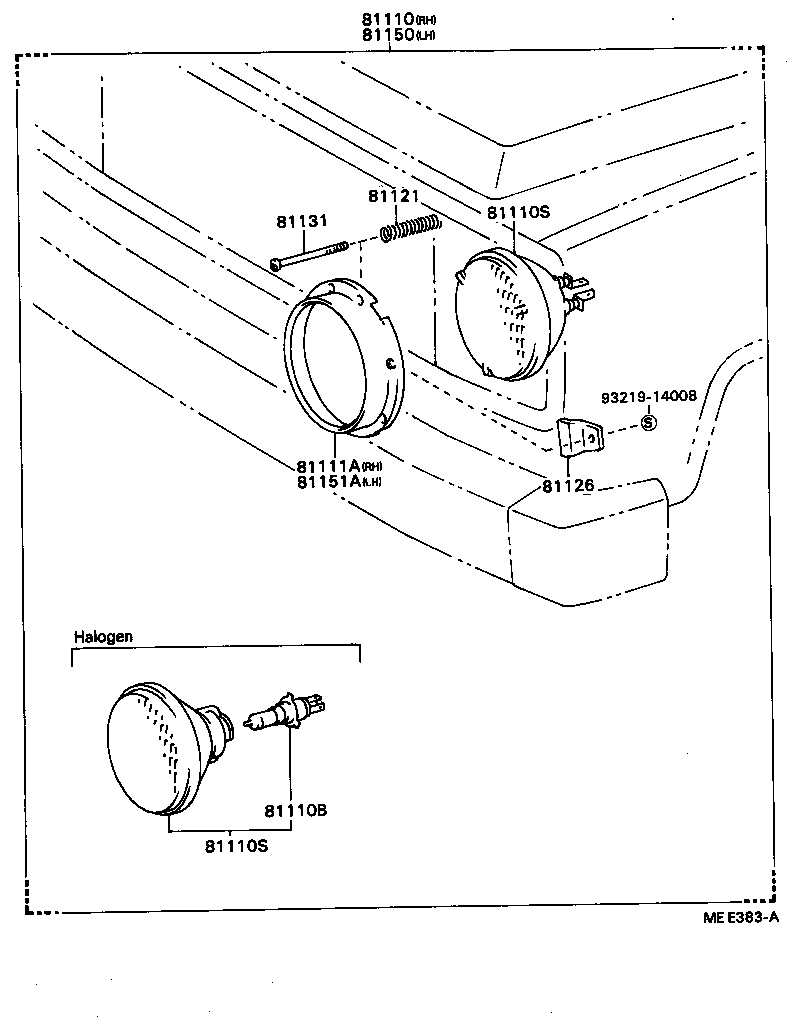

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111A 81121 81126 81131 81150 81151A 9321914008
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-87696

LD20..DSL

12V 50/40W

 1
81110-87628

LD20

12V 60/55W,HALOGEN

 1
81110-87698

LD2#

12V 60/55W,HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51066

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-51066

LD20

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90981-13015

LD20

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90049-50028

LD20..DSL

12V 50/40W

 2
90049-50037

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-50059

LD20

12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90049-50028

LD20..DSL

12V 50/40W

 2
90049-50037

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-50059

LD20

12V 60/55W,HALOGEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-87203

LD2#

 1
81121 - SPRING, HEADLAMP TENSION
81121-87602

LD2#

 6
81126 - PLATE, HEADLAMP
81115-87202

LD2#

 6
81131 - SCREW, HEADLAMP ADJUSTING
81131-87602

LD2#

 6
81150 - HEADLAMP ASSY, LH
81110-87628

LD20

12V 60/55W,HALOGEN

 1
81110-87698

LD2#

12V 60/55W,HALOGEN

 1
81110-87696

LD20..DSL

12V 50/40W

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-87203

LD2#

 1
Common parts
93219-14008

(8709- )

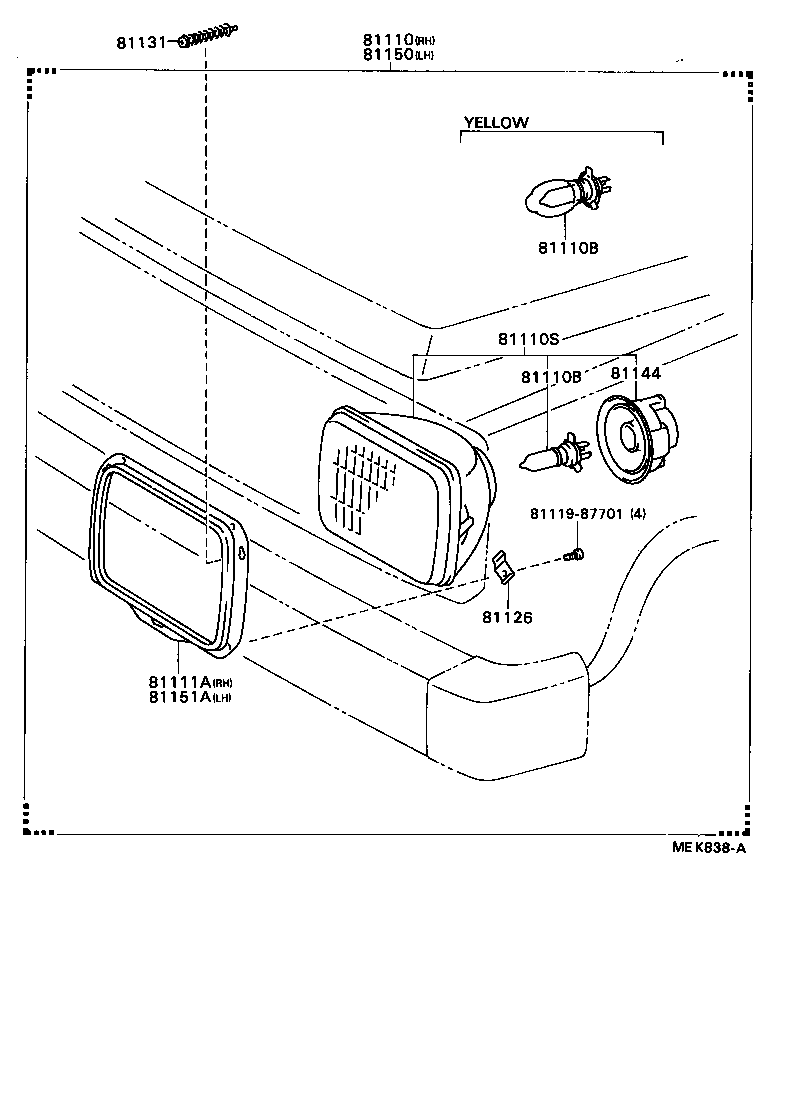

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110S 81111A 8111987701 81126 81131 81144 81150 81151A
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-87696

LD20..DSL

12V 50/40W

 1
81110-87628

LD20

12V 60/55W,HALOGEN

 1
81110-87698

LD2#

12V 60/55W,HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51066

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-51066

LD20

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90981-13015

LD20

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51066

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-51066

LD20

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90981-13015

LD20

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90049-50028

LD20..DSL

12V 50/40W

 2
90049-50037

LD2#

12V 60/55W,*HAL,*WH,12V 60/55W,HALOGEN

 2
90049-50059

LD20

12V 60/55W,HALOGEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-87203

LD2#

 1
81126 - PLATE, HEADLAMP
81115-87202

LD2#

 6
81131 - SCREW, HEADLAMP ADJUSTING
81131-87602

LD2#

 6
81150 - HEADLAMP ASSY, LH
81110-87628

LD20

12V 60/55W,HALOGEN

 1
81110-87698

LD2#

12V 60/55W,HALOGEN

 1
81110-87696

LD20..DSL

12V 50/40W

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-87203

LD2#

 1
Common parts
81119-87701
