LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

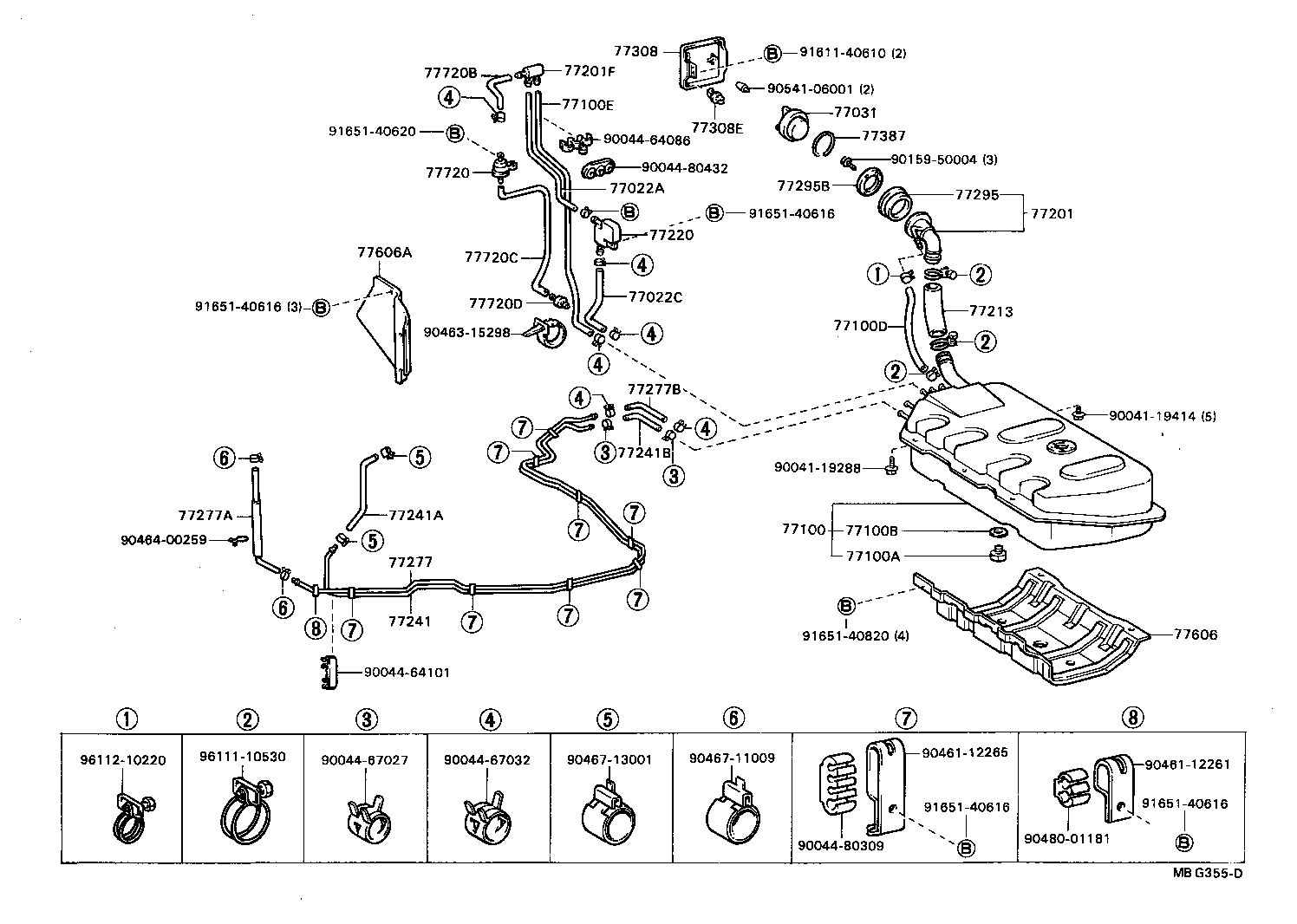

Click highlighted areas on diagram

diagram 77022A 77022C 77031 77100 77100A 77100B 77100D 77100E 77201 77201F 77213 77220 77241 77241A 77241B 77277 77277A 77277B 77295 77295B 77308 77308E 77387 77606 77606A 77720 77720B 77720C 77720D 9004119288 9004119414 9004464086 9004464101 9004467027 9004467032 9004480309 9004480432 9015950004 9046112261 9046112265 9046315298 9046400259 9046711009 9046713001 9048001181 9054106001 9161140610 9165140616 9165140616 9165140616 9165140616 9165140620 9165140820 9611110530 9611210220
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90044-45705

LD2#

 1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
90044-45703

LD2#

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

LD2#

 1
77100 - TANK ASSY, FUEL
77100-87619

LD2#

 1
77100A - PLUG(FOR FUEL TANK)
90043-41011

LD2#

 1
77100B - GASKET(FOR FUEL TANK)
90044-30120

LD2#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90044-45702

LD2#

 1
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90044-45704

LD2#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-87605

LD2#

 1
77201F - WAY, 3(FOR FUEL TANK)
90044-13046

LD2#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-87603

LD2#

 1
77220 - SEPARATOR ASSY, FUEL EVAPORATIVE & CHECK VALVE
77273-87703

LD2#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-87614

LD2#

 1
77251-87618

LD2#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08060

LD2#

*H,L=440,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77259-87601

LD2#

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-87604

LD2#

 1
77255-87610

LD2#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-87602

LD2#

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77259-87603

LD2#

 1
77295 - SHIELD, FUEL FILLER PIPE
77291-12020

LD2#

 1
77295B - SHIELD, FUEL TANK FILLER PIPE
77292-12030

LD2#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-87601

LD2#

 1
77308E - PLATE, FUEL INLET BOX
61726-87101

LD2#

 1
77387 - RING, FUEL INLET BOX
77391-16010

LD2#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-87603

LD2#

 1
77606A - PROTECTOR, FUEL TANK FILLER PIPE
77277-87601

LD2#

 1
77720 - VALVE SUB-ASSY, SAFETY
77720-87609

LD2#

 1
77720B - HOSE, FUEL, NO.1(FOR SAFETY VALVE)
90044-45753

LD2#

 1
77720C - HOSE, FUEL, NO.2(FOR SAFETY VALVE)
90044-46388

LD2#

 1
77720D - WAY, 2(FOR SAFETY VALVE)
90044-12033

LD2#

 1
Common parts
90041-19288
90041-19414
90044-64086
90044-64101
90044-67027
90044-67032
90044-80309
90044-80432
90159-50004
90461-12261
90461-12265
90463-15298
90464-00259
90467-11009
90467-13001
90480-01181
90541-06001
91611-40610
91651-40616
91651-40620
91651-40820
96111-10530
96112-10220
