LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-8509)

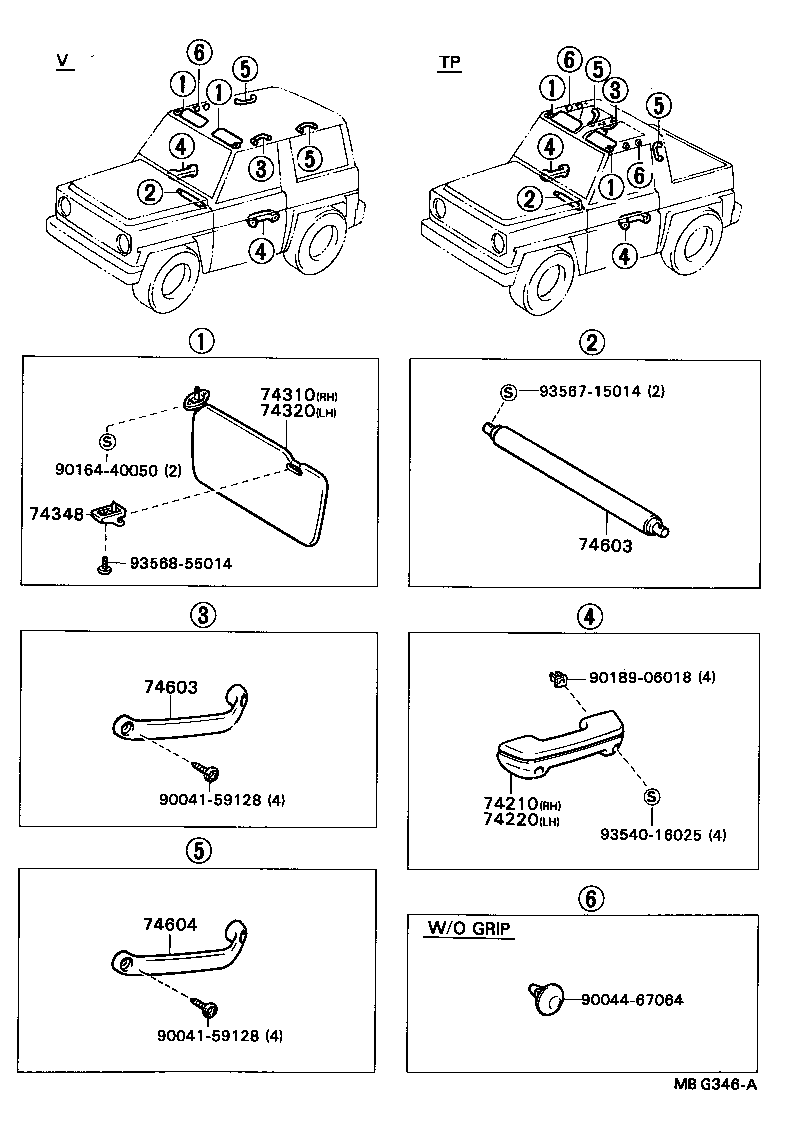

Click highlighted areas on diagram

diagram 74210 74220 74310 74320 74348 74603 74603 74604 9004159128 9004159128 9004467064 9016440050 9018906018 9354016025 9356715014 9356855014
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8710243

LD20

SHADOW GRAY,SHADOW GRAY

 1
74210-8770313

LD2#

SHADOW GRAY,SHADOW GRAY

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8710243

LD20

SHADOW GRAY,SHADOW GRAY

 1
74210-8770313

LD2#

SHADOW GRAY,SHADOW GRAY

 1
74310 - VISOR ASSY, RH
74310-87608

LD20

 1
74310-8762803

LD2#..(V,WG)..(DX,LX,LX5)

SHADOW GRAY,GRAY

 1
74310-8762003

LD2#..DX,LX,LX5

SHADOW GRAY,SHADOW GRAY

 1
74320 - VISOR ASSY, LH
74320-8762103

LD2#..DX,LX,LX5

SHADOW GRAY,SHADOW GRAY

 1
74320-8762703

LD2#..(V,WG)..(DX,LX,LX5)

SHADOW GRAY,GRAY

 1
74320-87611

LD20

 1
74348 - HOLDER, VISOR
74348-87101

LD20

 2
74348-8710123

LD2#..DX,LX,LX5

SHADOW GRAY,SHADOW GRAY

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002043

LD2#..(V,WG)..(DX,LX,LX5)

SHADOW GRAY,SHADOW GRAY

 1
74811-8720253

LD20

SHADOW GRAY,SHADOW GRAY

 1
74603-87601

LD2#

W/INSTRUMENT

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002043

LD2#..(V,WG)..(DX,LX,LX5)

SHADOW GRAY,SHADOW GRAY

 1
74811-8720253

LD20

SHADOW GRAY,SHADOW GRAY

 1
74603-87601

LD2#

W/INSTRUMENT

 1
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002043

LD2#..DX,LX,LX5

SHADOW GRAY,SHADOW GRAY

 2
74811-8720253

LD20

SHADOW GRAY,SHADOW GRAY

 2
Common parts
90041-59128
90044-67064
90164-40050
90189-06018
93540-16025
93567-15014
93568-55014
