LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

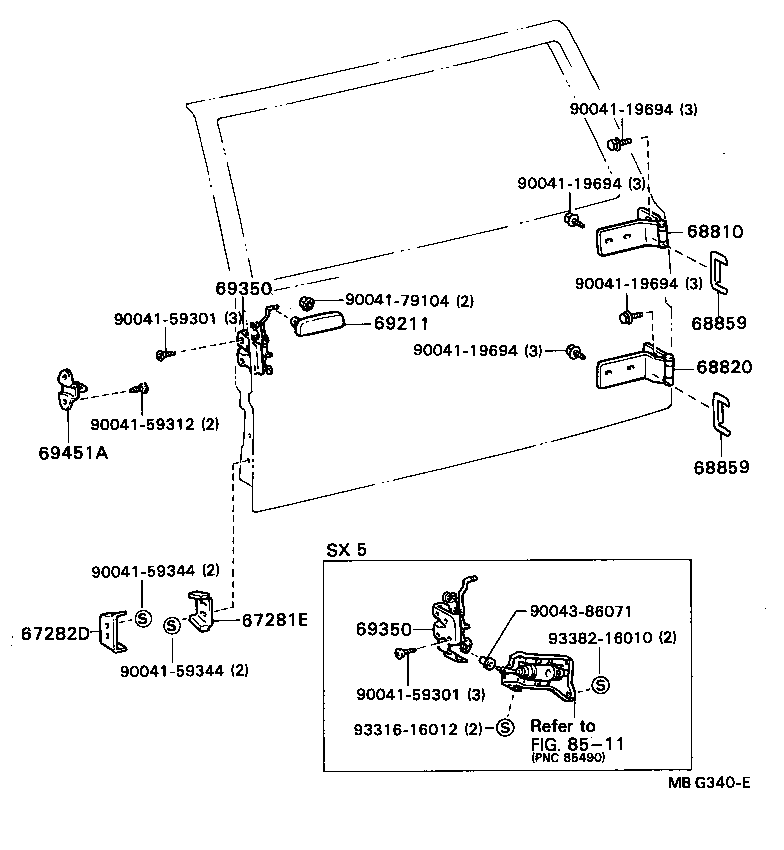

Click highlighted areas on diagram

diagram 67281E 67282D 68810 68820 68859 68859 69211 69350 69350 69451A 8511 9004119694 9004119694 9004119694 9004119694 9004159301 9004159301 9004159312 9004159344 9004159344 9004179104 9004386071 9331616012 9338216010
Part # Description Qty Price
67281E - STOPPER, BACK DOOR DOWN MALE
67281-87602

LD2#

 1
67282D - STOPPER, BACK DOOR DOWN FEMALE
67282-87601

LD2#

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-87602

LD20

 1
68820 - HINGE ASSY, BACK DOOR, LOWER
68820-87602

LD2#

 1
69211 - HANDLE, BACK DOOR OUTSIDE, RH
69210-87203

LD20

 1
69210-87603

LD2#

 1
69210-87604

LD2#

 1
69350 - LOCK ASSY, BACK DOOR
69350-87602

LD20

 1
69350 - LOCK ASSY, BACK DOOR
69350-87602

LD20

 1
69451A - PLATE, DOOR LOCK STRIKER
69410-87501

LD2#

 1
Common parts
90041-19694
90041-59301
90041-59312
90041-59344
90041-79104
90043-86071
93316-16012
93382-16010
Linked diagrams
8511
