LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8911)V ; (8405-8911)V ; (8509-9002)LX5 ; (8509-9002)LX5

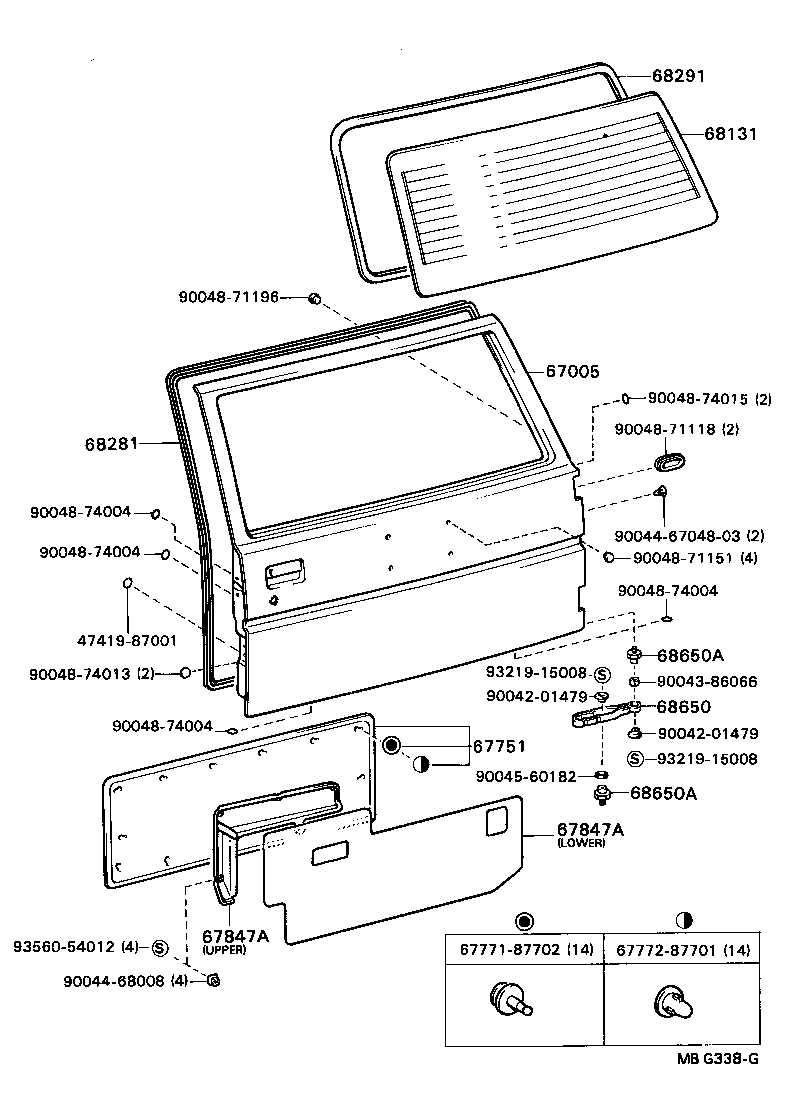

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-87604 |
LD2#..(V,WG)..(DX,LX,LX5) W/RR WIPER |
1 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64780-87607 |
LD2#..(V,WG)..(LX,LX5) |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-87603 |
LD2#..V,WG LOWER,W/RR WIPER |
1 | ||
| 67847-87608 |
LD2#..V,WG LOWER,W/RR WIPER |
1 | ||
| 67847-87601 |
LD2#..DX,LX,LX5 UPPER |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-87603 |
LD2#..V,WG LOWER,W/RR WIPER |
1 | ||
| 67847-87608 |
LD2#..V,WG LOWER,W/RR WIPER |
1 | ||
| 67847-87601 |
LD2#..DX,LX,LX5 UPPER |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-87605 |
LD20..V..LX..DSL *TEM,T=3.5 |
1 | ||
| 68131-87612 |
LD20..V..LX..DSL *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 68281 - WEATHERSTRIP, BACK DOOR, LOWER | ||||
| 67881-87602 |
LD20..V |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-87603 |
LD2#..V,WG |
1 | ||
| 68650 - CHECK ASSY, BACK DOOR | ||||
| 68650-87601 |
LD2# |
1 | ||
| 68650-87602 |
LD2# |
1 | ||
| 68650A - PIN(FOR BACK DOOR CHECK) | ||||
| 68617-87601 |
LD2# |
2 | ||
| 68650A - PIN(FOR BACK DOOR CHECK) | ||||
| 68617-87601 |
LD2# |
2 | ||
| Common parts | ||||
| 47419-87001 | ||||
| 67771-87702 | ||||
| 67772-87701 | ||||
| 90042-01479 | ||||
| 90043-86066 | ||||
| 90044-6704803 | ||||
| 90044-68008 | ||||
| 90045-60182 | ||||
| 90048-71118 | ||||
| 90048-71151 | ||||
| 90048-71196 | ||||
| 90048-74004 | ||||
| 90048-74013 | ||||
| 90048-74015 | ||||
| 93219-15008 | ||||
| 93560-54012 | ||||
