LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

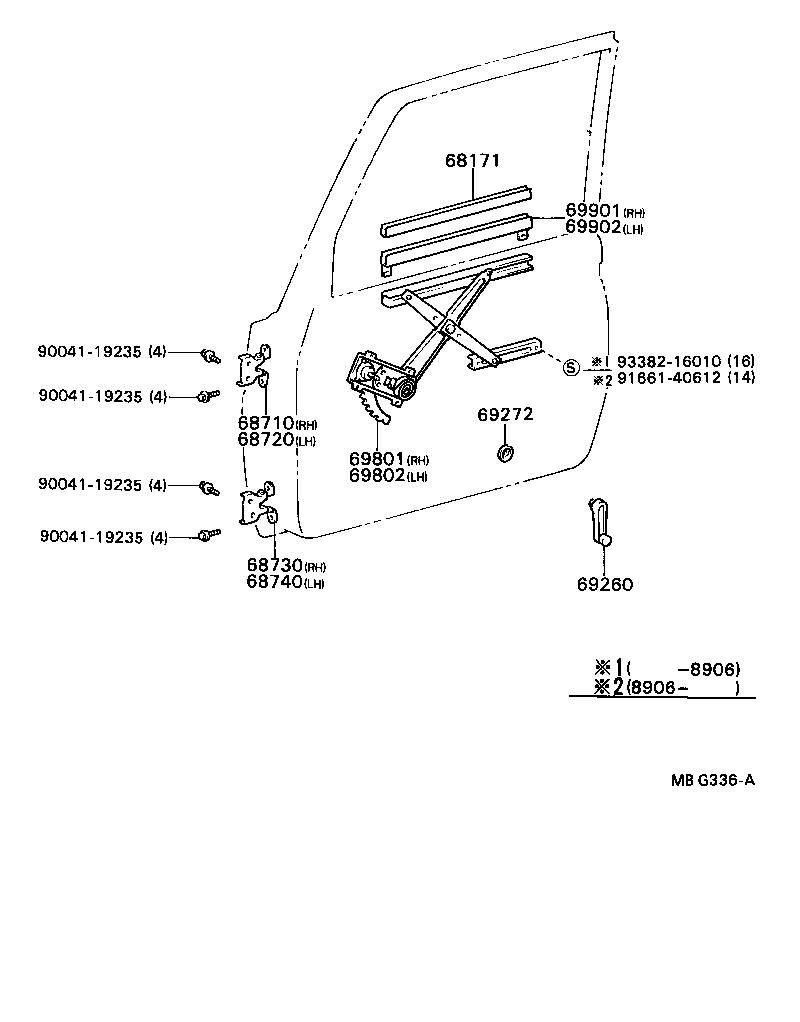

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69272 69801 69802 69901 69902 9004119235 9004119235 9004119235 9004119235 9166140612 9338216010
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-87601

LD2#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-87203

LD2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-87203

LD2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-87205

LD2#

 1
68730-87702

LD2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-87702

LD2#

 1
68740-87205

LD2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004033

LD2#

SHADOW GRAY,SHADOW GRAY

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-87601

LD2#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-87603

LD2#

 1
69810-87602

LD20

 1
69810-87605

LD2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-87605

LD2#

 1
69820-87602

LD20

 1
69820-87603

LD2#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-87601

LD2#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-87601

LD2#

 1
Common parts
90041-19235
91661-40612
93382-16010
