LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8911)V ; (8509-9002)LX5

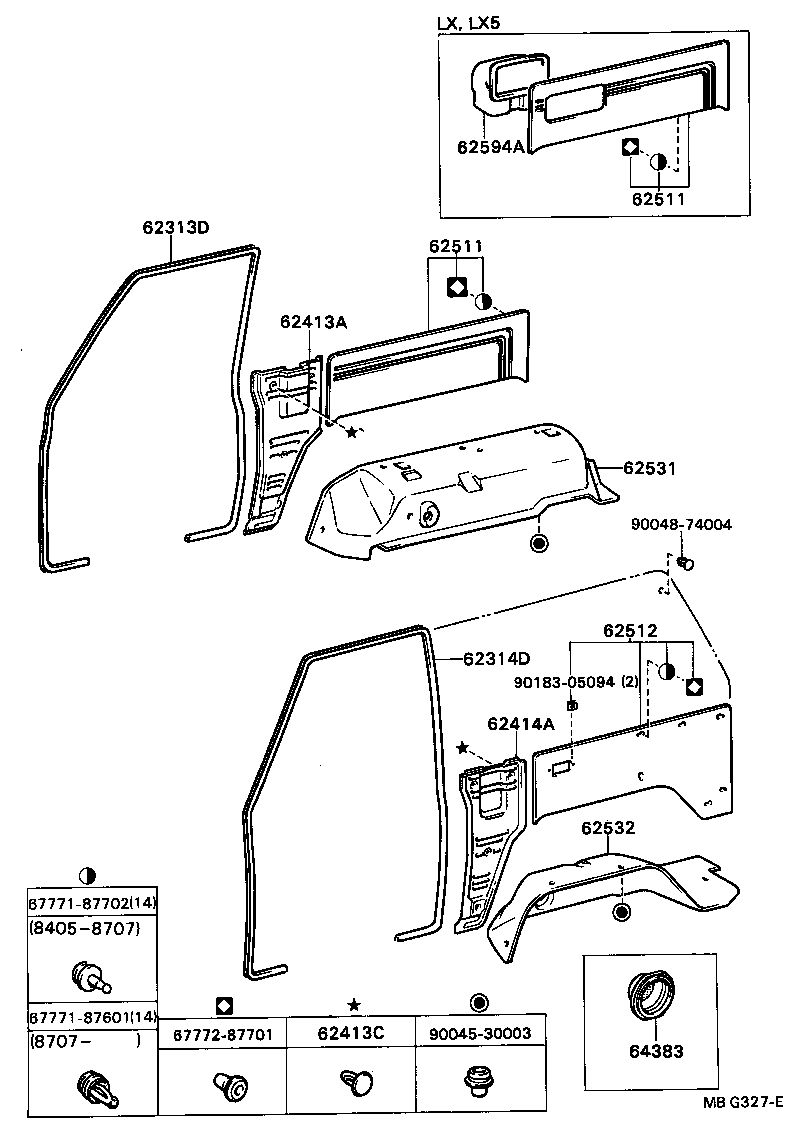

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-87601 |
LD20..V |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-87601 |
LD20..V |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-87602 |
LD20..LX |
1 | ||
| 62413-8760703 |
LD2#..LX,LX5,SX5 GRAY,GRAY |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-1001713 |
LD2# GRAY,GRAY |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-87602 |
LD20..LX |
1 | ||
| 62414-8760703 |
LD2#..LX,LX5,SX5 GRAY,GRAY |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-87609 |
LD2#..(V,WG)..(LX,LX5) |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-87609 |
LD2#..(V,WG)..(LX,LX5) |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-87603 |
LD2#..(V,WG)..(LX,LX5) |
1 | ||
| 62531 - COVER, WHEEL HOUSE TRIM, RH | ||||
| 62610-8760804 |
LD20..V..LX BLUE,BLUE |
1 | ||
| 62610-8763403 |
LD20..V..LX GRAY,GRAY |
1 | ||
| 62610-8763404 |
LD20..V..LX BLUE,BLUE |
1 | ||
| 62610-8760802 |
LD20..V..LX RED,RED |
1 | ||
| 62532 - COVER, WHEEL HOUSE TRIM, LH | ||||
| 62620-8760202 |
LD20..V..LX RED,RED |
1 | ||
| 62620-8760204 |
LD20..V..LX BLUE,BLUE |
1 | ||
| 62620-8763403 |
LD20..V..LX GRAY,GRAY |
1 | ||
| 62620-8763404 |
LD20..V..LX BLUE,BLUE |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62690-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 64383 - GRILLE, SPEAKER, REAR | ||||
| 64383-87601 |
LD20 |
2 | ||
| Common parts | ||||
| 67771-87601 | ||||
| 67771-87702 | ||||
| 67772-87701 | ||||
| 90045-30003 | ||||
| 90048-74004 | ||||
| 90183-05094 | ||||
