LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-8509)V

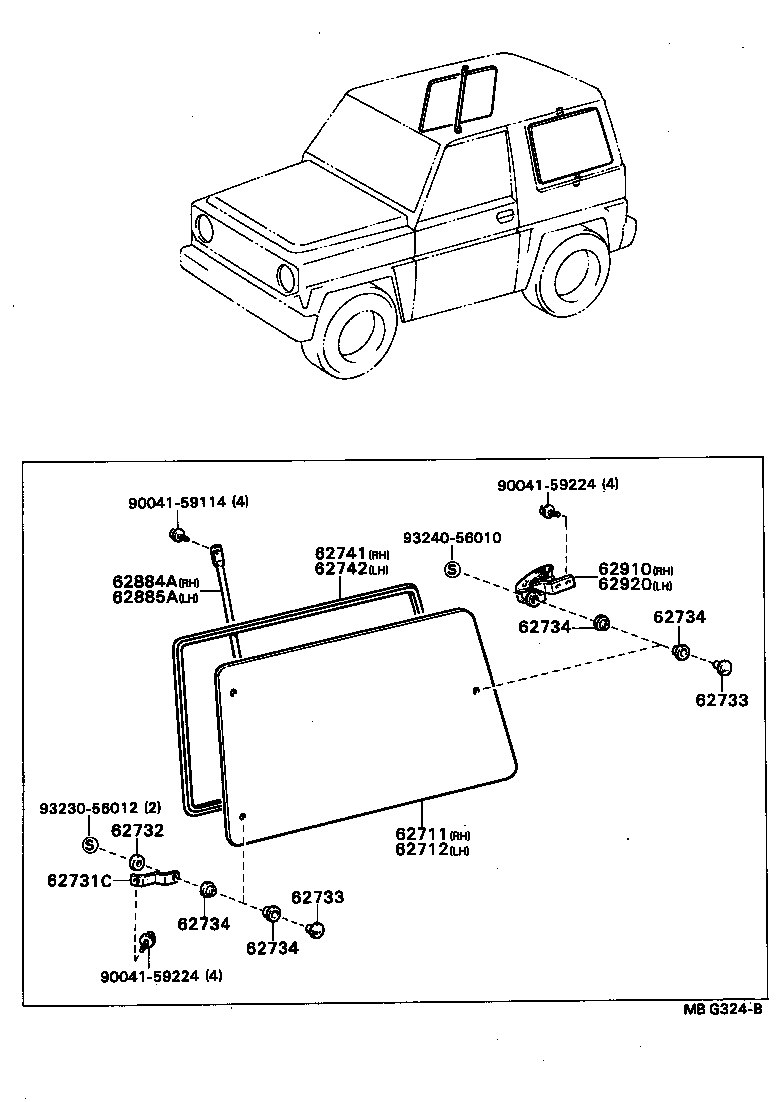

Click highlighted areas on diagram

diagram 62711 62712 62731C 62732 62733 62733 62734 62734 62734 62734 62741 62742 62884A 62885A 62910 62920 9004159114 9004159224 9004159224 9323056012 9324056010
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-87604

LD20..V..LX..DSL

*TEM,厚さ=4.0,*TEM,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-87604

LD20..V..LX..DSL

*TEM,厚さ=4.0,*TEM,T=4.0

 1
62731C - HINGE, QUARTER WINDOW, RH
62731-87602

LD2#..V,WG

 4
62732 - PLATE, QUARTER OR SIDE WINDOW HINGE FINISH
62732-87001

LD20..V

 4
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62733-12010

LD20..V

 6
62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE
62733-12010

LD20..V

 6
62734 - SPACER, QUARTER WINDOW HINGE
62734-12010

LD20..V

 12
62734 - SPACER, QUARTER WINDOW HINGE
62734-12010

LD20..V

 12
62734 - SPACER, QUARTER WINDOW HINGE
62734-12010

LD20..V

 12
62734 - SPACER, QUARTER WINDOW HINGE
62734-12010

LD20..V

 12
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-87603

LD20..V

 1
62741-87607

LD20..V

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-87607

LD20..V

 1
62741-87603

LD20..V

 1
62884A - GUARD, QUARTER WINDOW, RH
62884-87601

LD20..V

 1
62885A - GUARD, QUARTER WINDOW, LH
62884-87601

LD20..V

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-87601

LD2#..V,WG

 1
62920 - LOCK ASSY, QUARTER WINDOW, LH
62910-87601

LD2#..V,WG

 1
Common parts
90041-59114
90041-59224
93230-56012
93240-56010
