LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8911)V

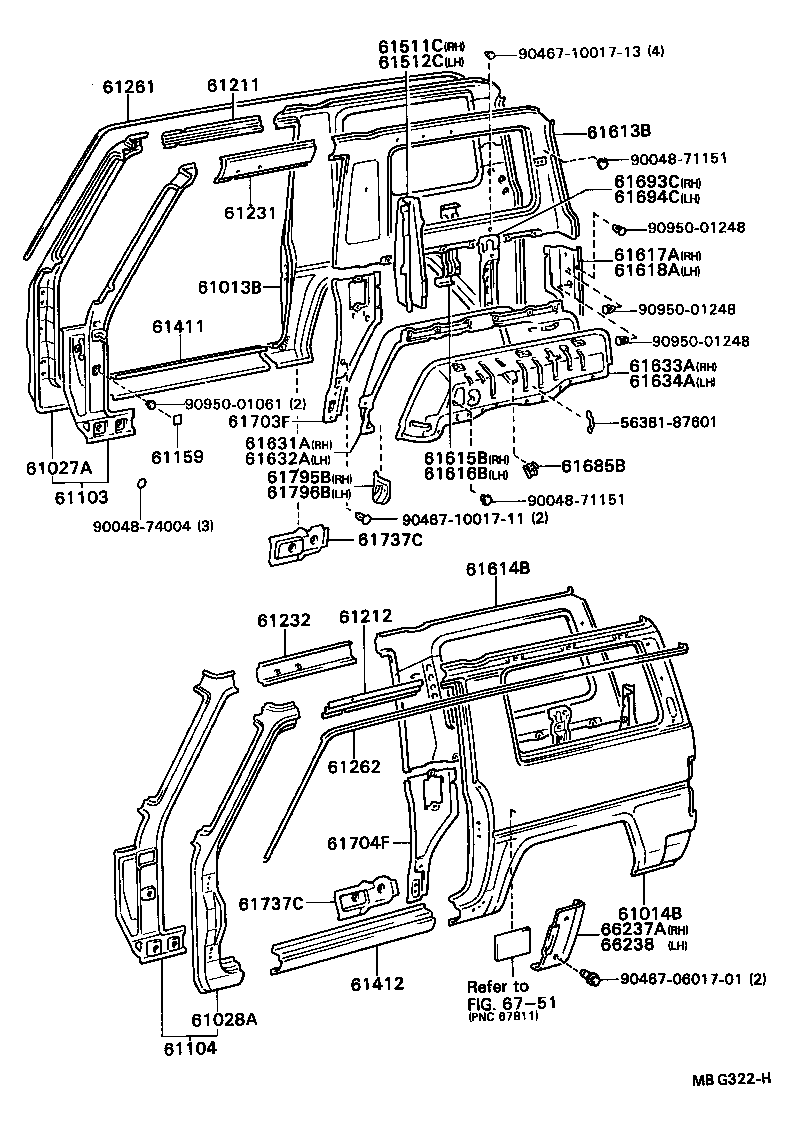

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013B - PANEL SUB-ASSY, QUARTER, OUTER RH | ||||
| 61013-87610 |
LD2#..V,WG |
1 | ||
| 61014B - PANEL SUB-ASSY, QUARTER, OUTER LH | ||||
| 61014-87610 |
LD2#..V,WG |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-87601 |
LD2#..V,WG |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-87601 |
LD2#..V,WG |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-87601 |
LD20..V |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-87612 |
LD20..V |
1 | ||
| 61022-87601 |
LD2#..(V,WG)..(DX,LX,LX5) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-87605 |
LD2#..V,WG |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-87605 |
LD2#..V,WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-87605 |
LD20..V |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-87604 |
LD20..V |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-87601 |
LD2#..V,WG |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-87601 |
LD2#..V,WG |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-87601 |
LD2# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61411-87601 |
LD2# |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61517-87601 |
LD2#..V,WG |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-87601 |
LD2#..V,WG |
1 | ||
| 61613B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61613-87901 |
LD20..V |
1 | ||
| 61614B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61614-87901 |
LD20..V |
1 | ||
| 61615B - REINFORCEMENT, QUARTER PANEL, OUTER FRONT | ||||
| 61615-87601 |
LD2#..V,WG |
1 | ||
| 61616B - REINFORCEMENT, QUARTER PANEL, OUTER REAR | ||||
| 61615-87601 |
LD2#..V,WG |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-87601 |
LD20..V |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-87601 |
LD20..V |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-87601 |
LD2# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-87601 |
LD2# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-87601 |
LD20 |
1 | ||
| 61607-87617 |
LD20 |
1 | ||
| 61607-87620 |
LD20 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-87612 |
LD20 |
1 | ||
| 61608-87615 |
LD20 |
1 | ||
| 61608-87601 |
LD20 |
1 | ||
| 61685B - BRACKET, REAR SEAT BACK STOPPER | ||||
| 61685-87601 |
LD20 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-87602 |
LD20 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-87602 |
LD20 |
1 | ||
| 61703F - PANEL SUB-ASSY, QUARTER, INNER FRONT RH | ||||
| 61703-87602 |
LD2#..V,WG |
1 | ||
| 61704F - PANEL SUB-ASSY, QUARTER, INNER FRONT LH | ||||
| 61704-87602 |
LD2#..V,WG |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61738-87601 |
LD2# LH |
1 | ||
| 61737-87601 |
LD2# RH |
1 | ||
| 61737C - REINFORCEMENT, QUARTER, INNER | ||||
| 61738-87601 |
LD2# LH |
1 | ||
| 61737-87601 |
LD2# RH |
1 | ||
| 61795B - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61795-87601 |
LD2# |
1 | ||
| 61796B - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61796-87601 |
LD2# |
1 | ||
| Common parts | ||||
| 56381-87601 | ||||
| 90048-71151 | ||||
| 90048-74004 | ||||
| 90467-0601701 | ||||
| 90467-1001711 | ||||
| 90467-1001713 | ||||
| 90950-01061 | ||||
| 90950-01248 | ||||
| Linked diagrams | ||||
| 6751 | ||||
