LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-8509)

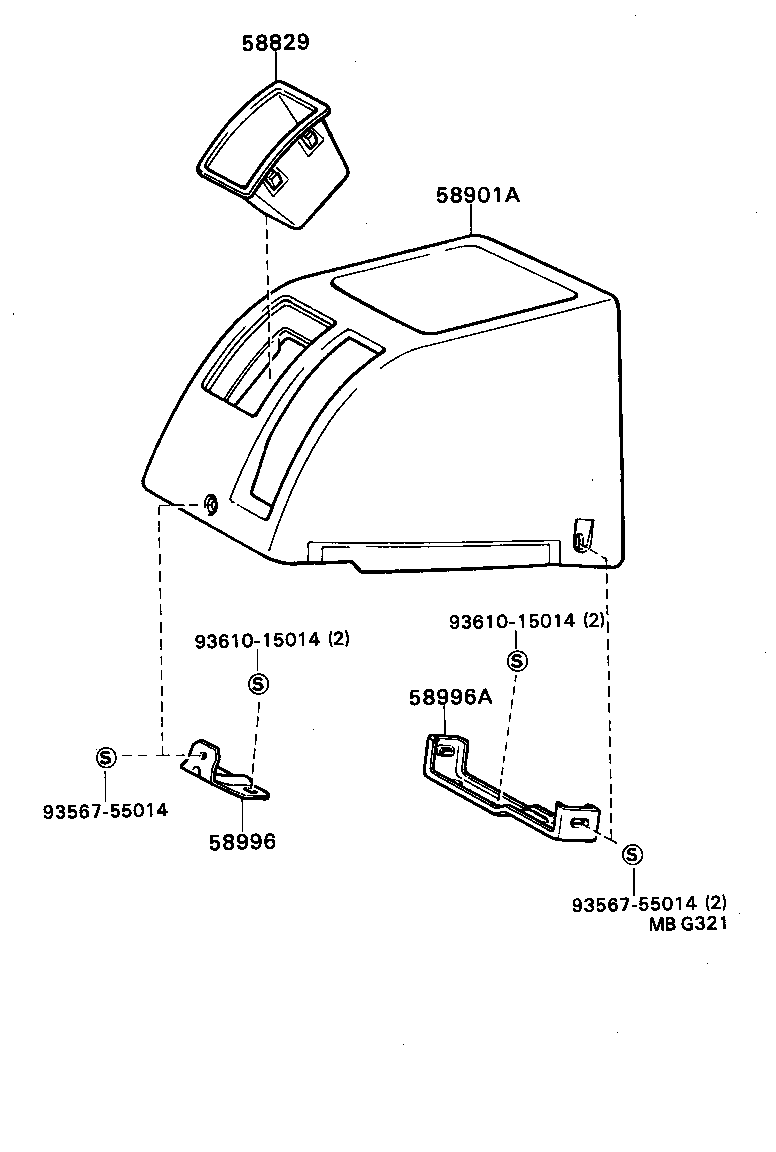

Click highlighted areas on diagram

diagram 58829 58901A 58996 58996A 9356755014 9356755014 9361015014 9361015014
Part # Description Qty Price
58829 - POCKET, CONSOLE BOX
58825-87601

LD20..LX

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-87601

LD20..LX

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-87602

LD2#..LX,LX5,SX5

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-87602

LD2#..LX,LX5,SX5

 1
Common parts
93567-55014
93610-15014
