LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)V,WG

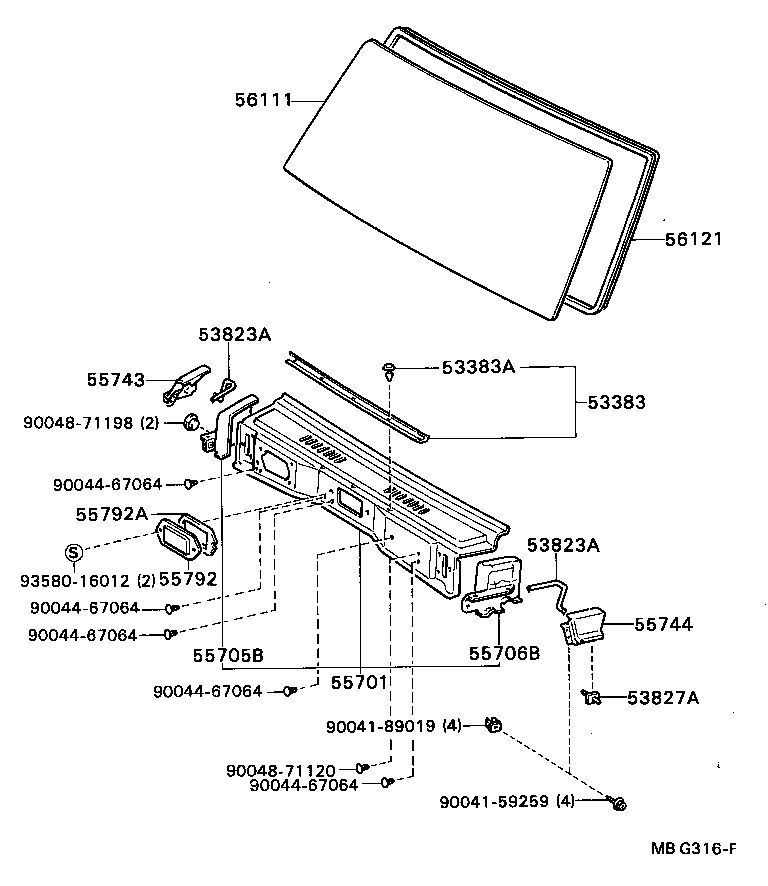

Click highlighted areas on diagram

diagram 53383 53383A 53823A 53823A 53827A 55701 55705B 55706B 55743 55744 55792 55792A 56111 56121 9004159259 9004189019 9004467064 9004467064 9004467064 9004467064 9004467064 9004871120 9004871198 9358016012
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-87602

LD2#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08011

LD2#

 3
53823A - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-87603

LD2#

 2
53823A - PROTECTOR, FRONT SIDE PANEL, NO.2
53823-87603

LD2#

 2
53827A - RETAINER, FRONT SIDE PANEL SET
53827-95700

LD2#

 4
55701 - PANEL SUB-ASSY, COWL
55701-87619

LD2#..V,WG

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-87601

LD2#

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-87609

LD2#

 1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55707-87609

LD2#

 1
55744 - PANEL, COWL TOP OUTSIDE CORNER, LH
55708-87601

LD2#

 1
55792 - COVER, WIPER MOTOR SERVICE HOLE
55796-87601

LD20

 1
56111 - GLASS, WINDSHIELD
56111-87610

LD20..V..LX..DSL

*ZT,T=5.0

 1
56111-87616

LD20..LX..DSL

*LAM,T=5.3,*LAM,T=5.3

 1
56111-87616

LD20..V..LX..DSL

*LAM,T=5.3,*LAM,T=5.3

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-87603

LD2#..V,WG

 1
Common parts
90041-59259
90041-89019
90044-67064
90048-71120
90048-71198
93580-16012
