LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

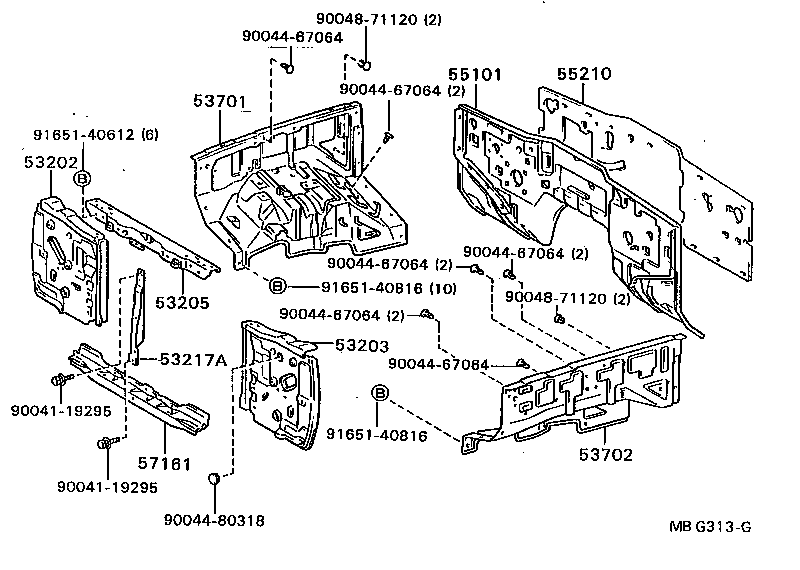

Click highlighted areas on diagram

diagram 53202 53203 53205 53217A 53701 53702 55101 55210 57161 9004119295 9004119295 9004467064 9004467064 9004467064 9004467064 9004467064 9004467064 9004480318 9004871120 9004871120 9165140612 9165140816 9165140816
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-87626

LD2#

 1
53202-87624

LD2#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-87616

LD2#

 1
53203-87614

LD2#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-87603

LD2#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-87602

LD2#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-87609

LD2#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-87612

LD2#

 1
55101 - PANEL SUB-ASSY, DASH
55101-87633

LD20

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-87603

LD20..DSL

 1
57161 - CROSSMEMBER, FRONT
57104-87601

LD2#

 1
Common parts
90041-19295
90044-67064
90044-80318
90048-71120
91651-40612
91651-40816
