LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-9002)

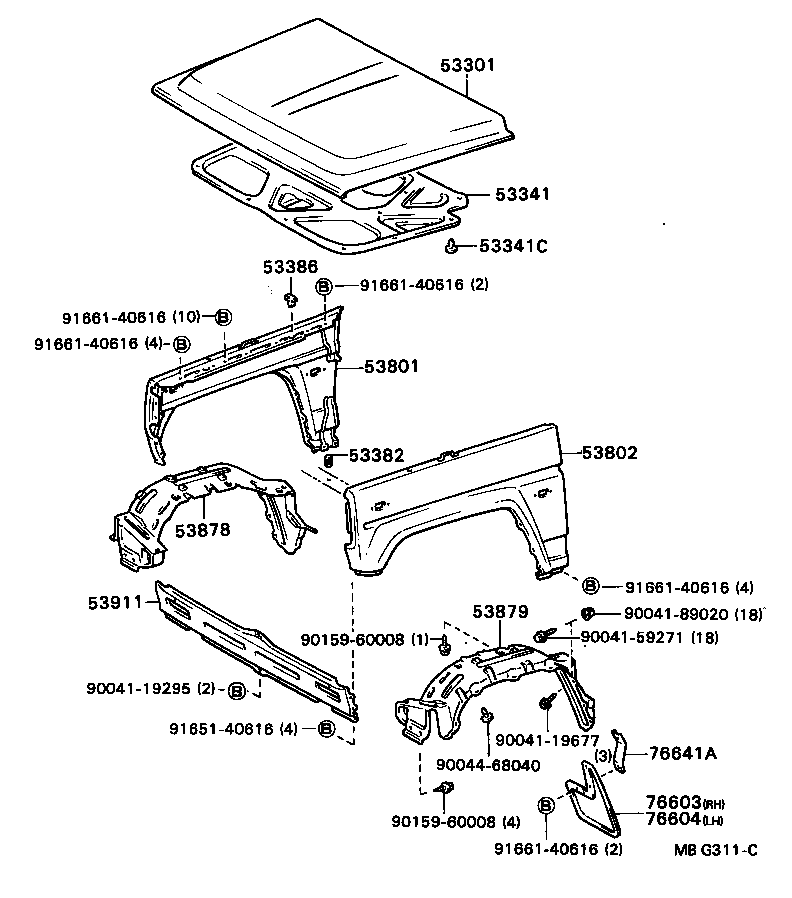

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-87607 |
LD2# |
1 | ||
| 53341 - SILENCER, HOOD, NO.1 | ||||
| 53341-87602 |
LD2# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-0900401 |
LD20..DSL BLACK |
17 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53381-87701 |
LD2# |
2 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-87602 |
LD2# |
4 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-87623 |
LD2#..V,WG W/FENDER MIRROR |
1 | ||
| 53801-87621 |
LD2#..V,WG W/DOOR MIRROR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-87621 |
LD2#..V,WG W/DOOR MIRROR |
1 | ||
| 53802-87623 |
LD2#..V,WG W/FENDER MIRROR |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-87601 |
LD2# |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-87601 |
LD2# |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-87604 |
LD2#..LX,LX5,SX5 W/HEADLAMP CLEANER |
1 | ||
| 53911-87603 |
LD2# |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-87601 |
LD2# |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-87601 |
LD2# |
1 | ||
| 76641A - BRACKET, FRONT MUDGUARD | ||||
| 76641-87601 |
LD2# |
2 | ||
| Common parts | ||||
| 90041-19295 | ||||
| 90041-19677 | ||||
| 90041-59271 | ||||
| 90041-89020 | ||||
| 90044-68040 | ||||
| 90159-60008 | ||||
| 91651-40616 | ||||
| 91661-40616 | ||||
