LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

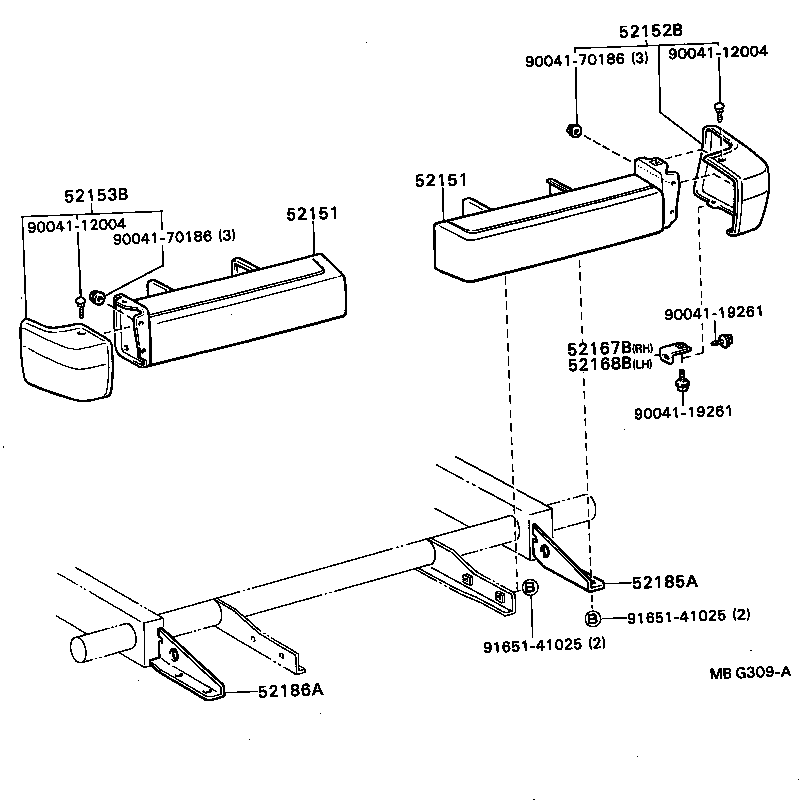

Click highlighted areas on diagram

diagram 52151 52151 52152B 52153B 52167B 52168B 52185A 52186A 9004112004 9004112004 9004119261 9004119261 9004170186 9004170186 9165141025 9165141025
Part # Description Qty Price
52151 - BUMPER ASSY, REAR
52106-87601

LD2#..DX,LX,LX5

RH

 1
52106-87601

LD2#

RH

 1
52107-87601

LD2#..DX,LX,LX5

LH

 1
52107-87601

LD2#

LH

 1
52151 - BUMPER ASSY, REAR
52106-87601

LD2#..DX,LX,LX5

RH

 1
52106-87601

LD2#

RH

 1
52107-87601

LD2#..DX,LX,LX5

LH

 1
52107-87601

LD2#

LH

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-87680

LD2#

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-87680

LD2#

 1
52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52167-87601

LD2#

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52167-87601

LD2#

 1
52185A - BRACKET, REAR BUMPER SIDE, RH
52182-87605

LD2#

 1
52186A - BRACKET, REAR BUMPER SIDE, LH
52183-87605

LD2#

 1
Common parts
90041-12004
90041-19261
90041-70186
91651-41025
