LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

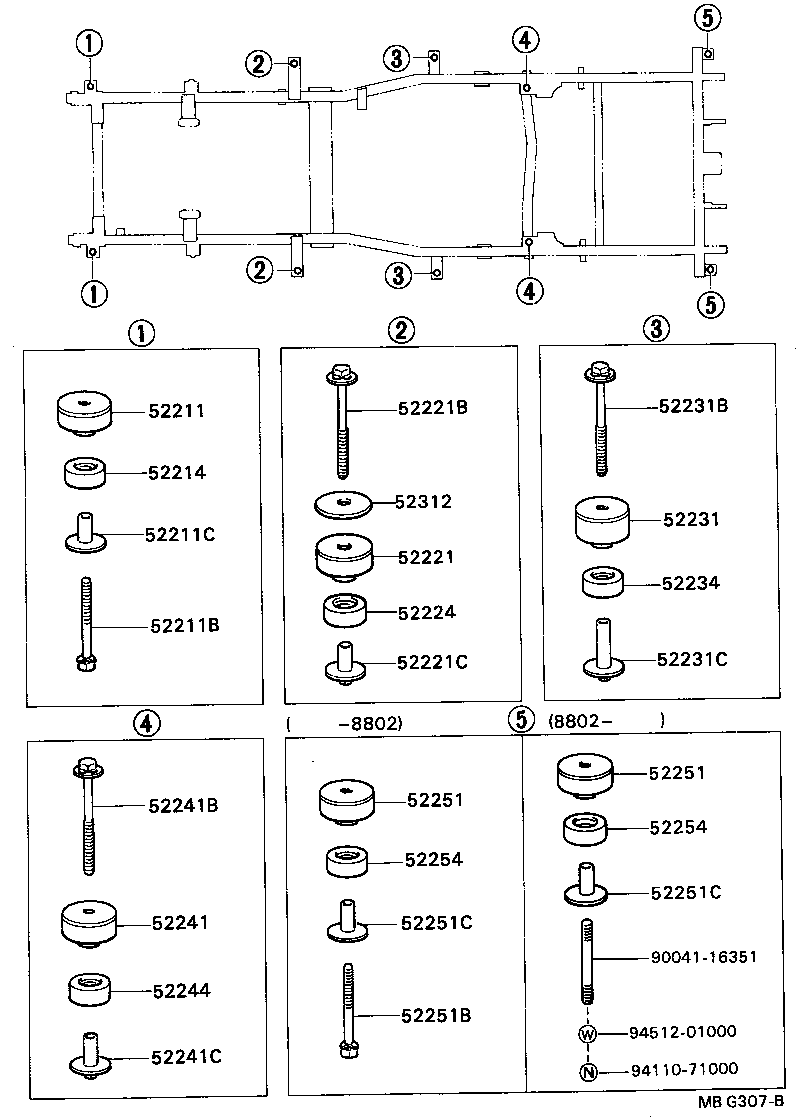

Click highlighted areas on diagram

diagram 52211 52211B 52211C 52214 52221 52221B 52221C 52224 52231 52231B 52231C 52234 52241 52241B 52241C 52244 52251 52251 52251B 52251C 52251C 52254 52254 52312 9004116351 9411071000 9451201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52223-87603

LD2#

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90041-19398

LD2#

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-87602

LD20

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52224-87604

LD2#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52223-87603

LD20..V

 2
52223-87602

LD20

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90041-19374

LD2#

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
52211-87601

LD20

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52224-87603

LD20..V

 2
52224-87602

LD20

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52223-87605

LD20..V

 2
52231B - BOLT(FOR BODY MOUNT NO.3 CUSHION)
90041-19374

LD2#

 2
52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION)
52248-87603

LD2#

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52224-87606

LD2#..V,WG

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52223-87603

LD20

 2
52241B - BOLT(FOR BODY MOUNT NO.4 CUSHION)
90041-19374

LD2#

 2
52241C - SPACER(FOR BODY MOUNT NO.4 CUSHION)
52211-87601

LD20

 2
52244 - CUSHION, BODY MOUNT, NO.4 LOWER
52224-87604

LD20

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52223-87602

LD2#

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52223-87602

LD2#

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90041-19398

LD2#

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
52211-87602

LD20

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
52211-87602

LD20

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52224-87602

LD2#

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52224-87602

LD2#

 2
Common parts
90041-16351
94110-71000
94512-01000
