LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

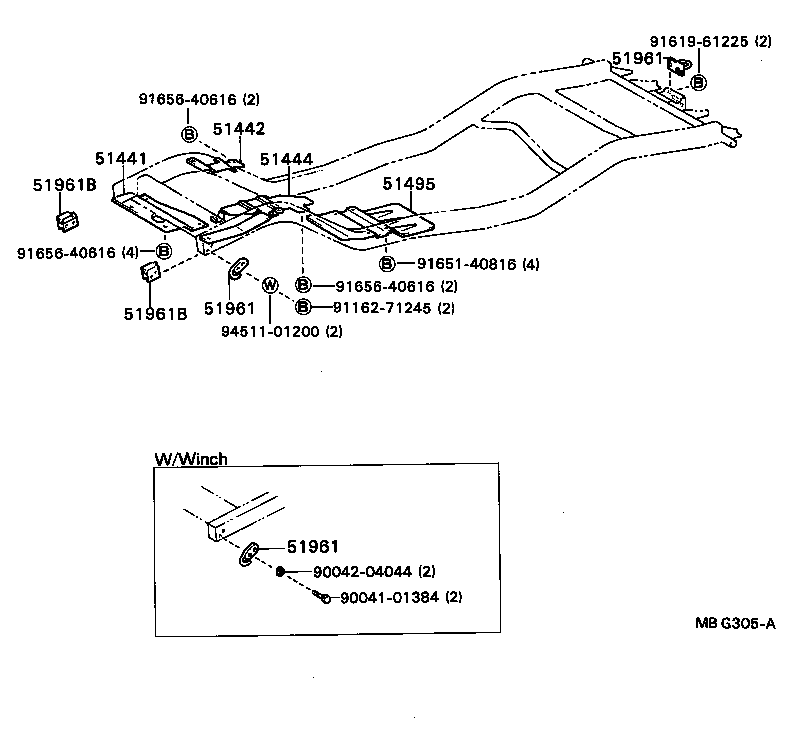

Click highlighted areas on diagram

diagram 51441 51442 51444 51495 51961 51961 51961 51961B 51961B 9004101384 9004204044 9116271245 9161961225 9165140816 9165640616 9165640616 9165640616 9451101200
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-87610

LD2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-87612

LD2#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-87620

LD2#

 1
51495 - COVER, TRANSMISSION UNDER
51495-87601

LD2#

 1
51961 - HOOK, NO.1
51961-87601

LD2#

FR

 1
51965-87603

LD2#

RR

 1
51961 - HOOK, NO.1
51961-87601

LD2#

FR

 1
51965-87603

LD2#

RR

 1
51961 - HOOK, NO.1
51961-87601

LD2#

FR

 1
51965-87603

LD2#

RR

 1
51961B - PLATE, FRONT HOOK SET
51950-87601

LD2#

RH

 1
51960-87601

LD2#

LH

 1
51961B - PLATE, FRONT HOOK SET
51950-87601

LD2#

RH

 1
51960-87601

LD2#

LH

 1
Common parts
90041-01384
90042-04044
91162-71245
91619-61225
91651-40816
91656-40616
94511-01200
