LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

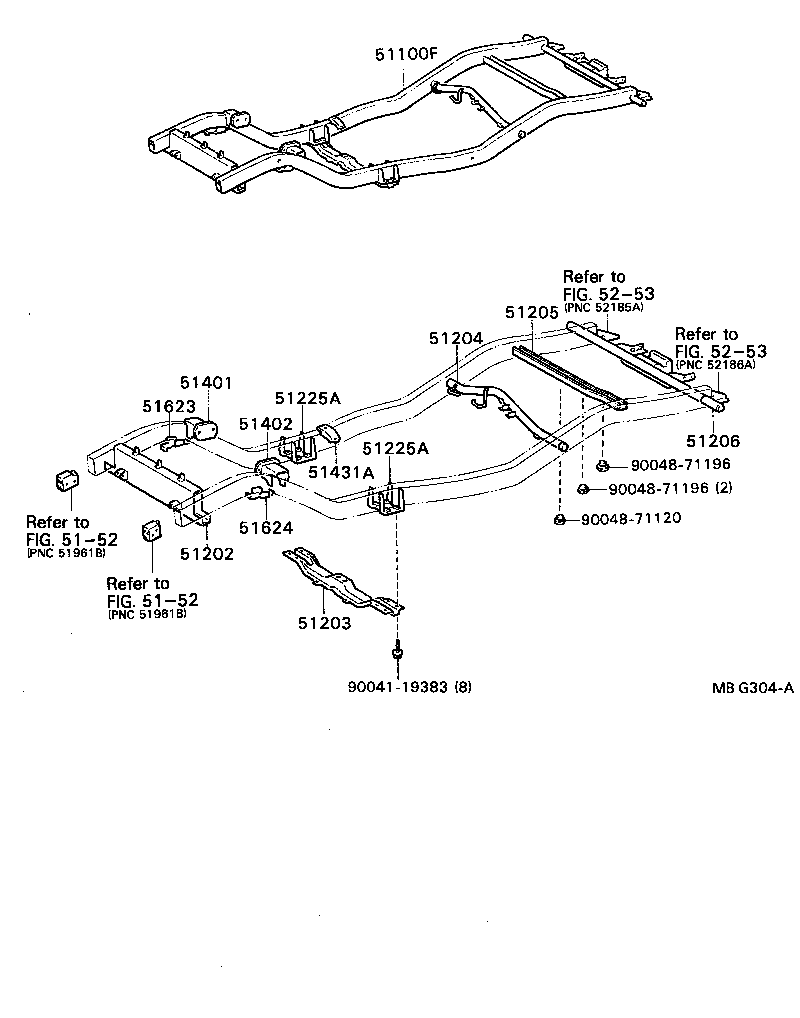

Click highlighted areas on diagram

diagram 51100F 51202 51203 51204 51205 51206 51225A 51225A 51401 51402 51431A 5152 5152 51623 51624 5253 5253 9004119383 9004871120 9004871196 9004871196
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51002-87653

LD20

 1
51003-87606

LD2#..LX,LX5,SX5

W/3 STAGE ABSORBER

 1
51002-87660

LD20..LX

W/3 STAGE ABSORBER

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-87603

LD2#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-87602

LD2#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-87609

LD2#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-87603

LD2#

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-87602

LD2#

 1
51225A - BRACKET, CROSSMEMBER, NO.2
51225-87603

LD2#

 2
51225A - BRACKET, CROSSMEMBER, NO.2
51225-87603

LD2#

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-87608

LD2#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-87608

LD2#

 1
51431A - BRACKET, ENGINE REAR SUPPORT, RH
51431-87602

LD2#

 1
51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH
51603-87601

LD2#

 1
51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH
51612-87602

LD2#

 1
Common parts
90041-19383
90048-71120
90048-71196
Linked diagrams
5152
5253
