LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

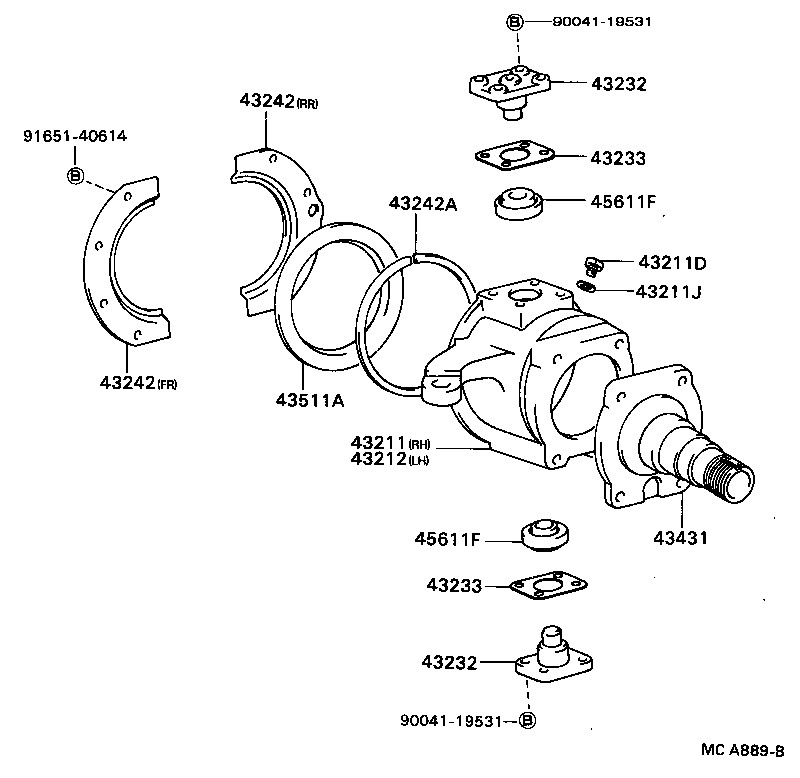

Click highlighted areas on diagram

diagram 43211 43211D 43211J 43212 43232 43232 43233 43233 43242 43242 43242A 43431 43511A 45611F 45611F 9004119531 9004119531 9165140614
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-87603

LD2#

 1
43211D - PLUG (FOR STEERING KNUCKLE)
90341-18049

LD2#

 2
43211J - GASKET (FOR STEERING KNUCKLE FILLER PLUG)
12157-10010

LD2#

 2
43212 - KNUCKLE, STEERING, LH
43212-87603

LD2#

 1
43232 - CAP, STEERING KNUCKLE BEARING
43232-87603

LD2#

UPR

 2
43233-87603

LD2#

LWR

 2
43232 - CAP, STEERING KNUCKLE BEARING
43232-87603

LD2#

UPR

 2
43233-87603

LD2#

LWR

 2
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
90045-65045

LD2#

厚さ=0.10,T=0.10

 4
90045-65049

LD2#

厚さ=0.30,T=0.30

 4
90045-65047

LD2#

厚さ=0.20,T=0.20

 4
90045-65046

LD2#

厚さ=0.15,T=0.15

 4
90045-65048

LD2#

厚さ=0.25,T=0.25

 4
43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1
90045-65045

LD2#

厚さ=0.10,T=0.10

 4
90045-65049

LD2#

厚さ=0.30,T=0.30

 4
90045-65047

LD2#

厚さ=0.20,T=0.20

 4
90045-65046

LD2#

厚さ=0.15,T=0.15

 4
90045-65048

LD2#

厚さ=0.25,T=0.25

 4
43242 - PLATE, OIL SEAL COVER, OUTER
43241-87606

LD2#

RR,LH

 1
43241-87604

LD2#

FR

 2
43241-87605

LD2#

RR,RH

 1
43242 - PLATE, OIL SEAL COVER, OUTER
43241-87606

LD2#

RR,LH

 1
43241-87604

LD2#

FR

 2
43241-87605

LD2#

RR,RH

 1
43242A - PLATE, OIL SEAL COVER, INNER
43242-87603

LD2#

 2
43431 - SPINDLE, STEERING KNUCKLE
43401-87604

LD2#

 2
43511A - SEAL, DUST (FOR FRONT AXLE HUB)
90043-18004

LD20

 2
45611F - BEARING(FOR STEERING KNUCKLE ARM)
90043-66026

LD2#

 4
45611F - BEARING(FOR STEERING KNUCKLE ARM)
90043-66026

LD2#

 4
Common parts
90041-19531
91651-40614
