LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

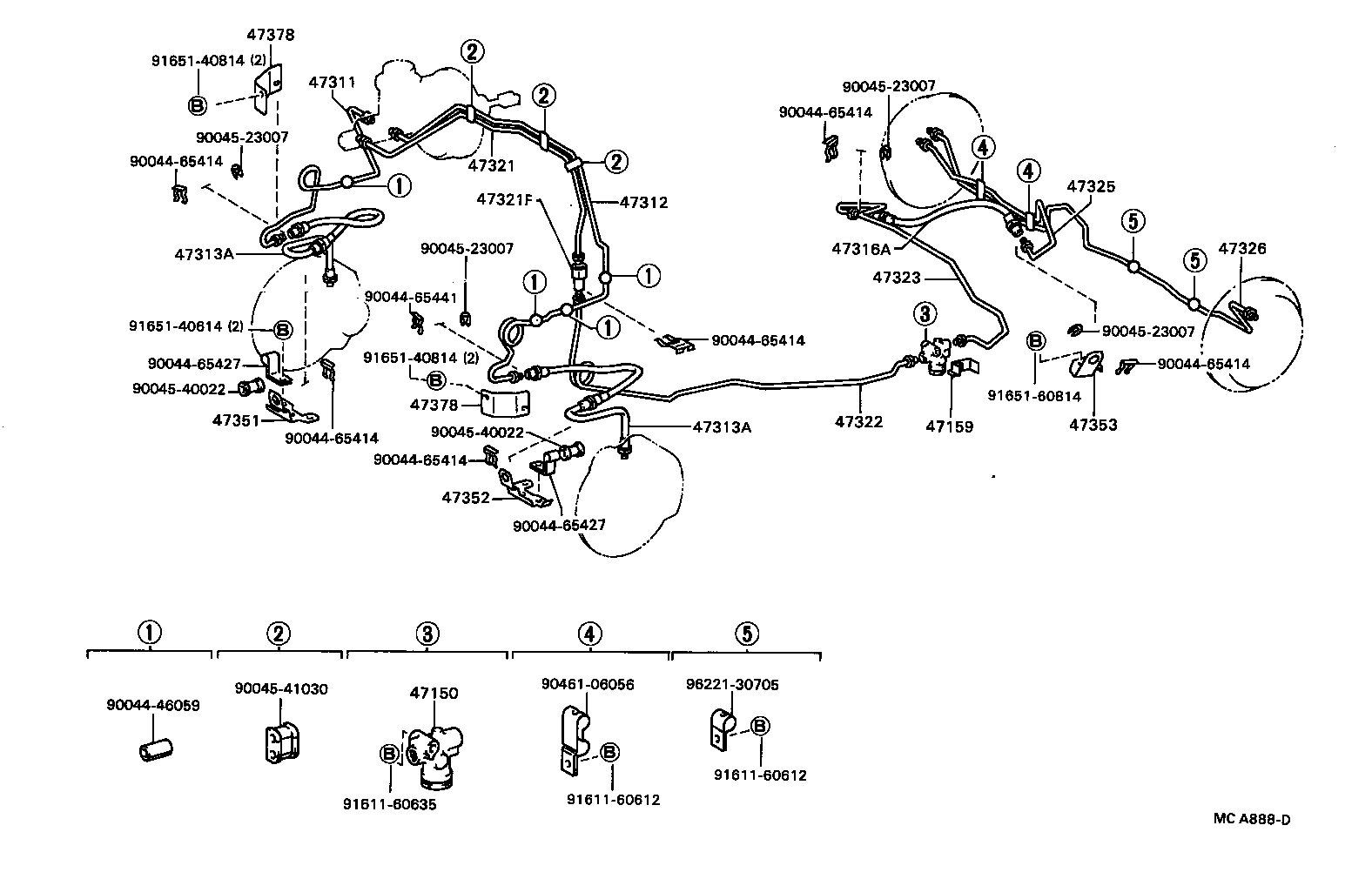

Click highlighted areas on diagram

diagram 47150 47159 47311 47312 47313A 47313A 47316A 47321 47321F 47322 47323 47325 47326 47351 47352 47353 47378 47378 9004446059 9004465414 9004465414 9004465414 9004465414 9004465414 9004465414 9004465427 9004465427 9004465441 9004523007 9004523007 9004523007 9004523007 9004540022 9004540022 9004541030 9046106056 9161160612 9161160612 9161160635 9165140614 9165140814 9165140814 9165160814 9622130705
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-87603

LD2#

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-87605

LD2#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-87616

LD2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-87610

LD20..DSL

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22098

LD2#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22098

LD2#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90049-22048

LD2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-87604

LD20..DSL

 1
47321F - UNION(FOR REAR BRAKE TUBE)
90044-04004

LD2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-87608

LD2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-87605

LD2#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-87601

LD2#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-87601

LD2#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47354-87602

LD2#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47355-87604

LD2#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47356-87602

LD2#

 1
47378 - PROTECTOR, BRAKE TUBE
47342-87603

LD2#

LH

 1
47341-87605

LD2#

RH

 1
47378 - PROTECTOR, BRAKE TUBE
47342-87603

LD2#

LH

 1
47341-87605

LD2#

RH

 1
Common parts
90044-46059
90044-65414
90044-65427
90044-65441
90045-23007
90045-40022
90045-41030
90461-06056
91611-60612
91611-60635
91651-40614
91651-40814
91651-60814
96221-30705
