LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

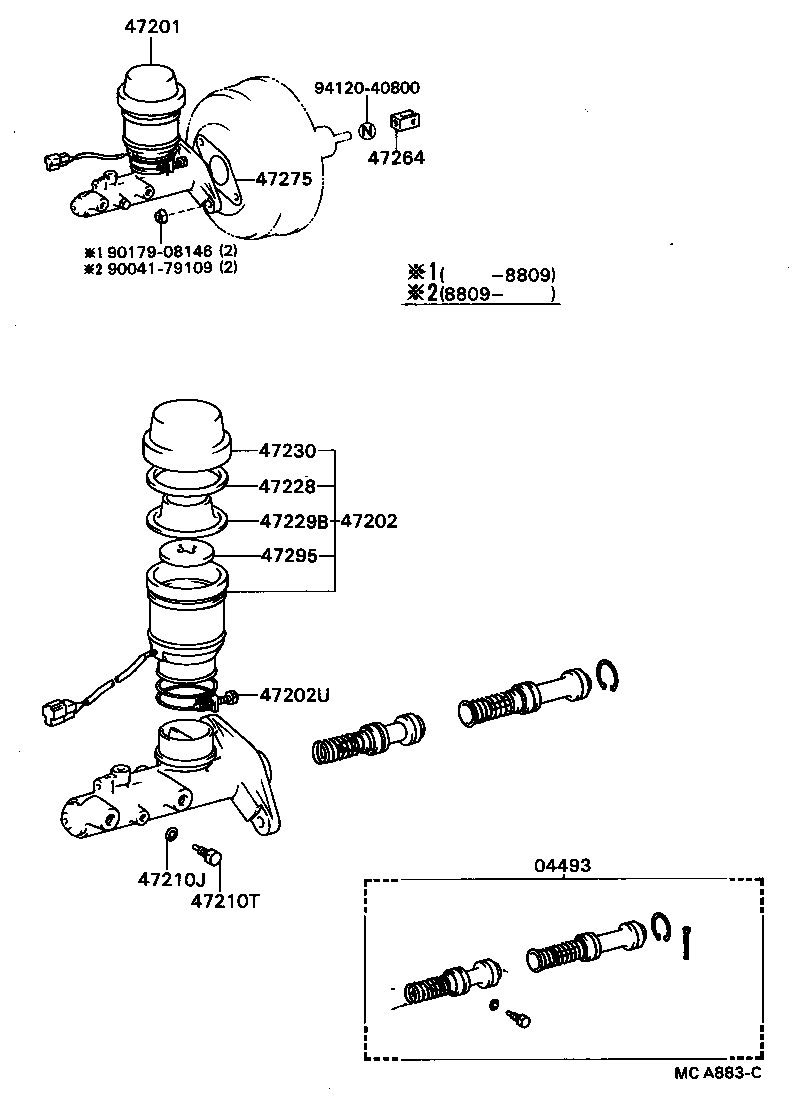

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-87605 |
LD2# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-87608 |
LD2# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-87606 |
LD2# |
1 | ||
| 47202U - CLAMP(FOR MASTER CYLINDER RESERVOIR SET) | ||||
| 90044-60061 |
LD2# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90044-30194 |
LD2# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90041-13022 |
LD2# |
1 | ||
| 47228 - SPACER, RESERVOIR CAP | ||||
| 47228-87601 |
LD20 |
1 | ||
| 47229B - DIAPHRAGM, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47229-87602 |
LD20 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47225-87607 |
LD20 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12050 |
LD2# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12010 |
LD2# |
1 | ||
| 47295 - FLOAT, SWITCH OPERATING | ||||
| 47295-87601 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-79109 | ||||
| 90179-08146 | ||||
| 94120-40800 | ||||
