LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

Click highlighted areas on diagram

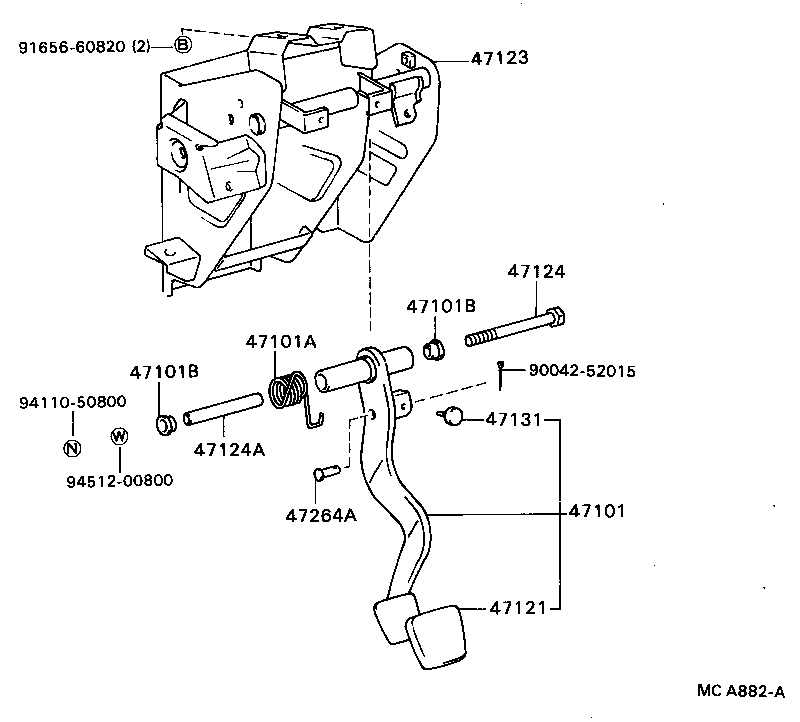

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9004252015 9165660820 9411050800 9451200800
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-87608

LD20

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90045-08184

LD2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-15082

LD2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-15082

LD2#

 2
47121 - PAD, BRAKE PEDAL
31321-87701

LD2#

 1
47123 - BRACKET, BRAKE PEDAL
55106-87607

LD20..DSL

 1
55106-87603

LD20..DSL

 1
47124 - SHAFT, BRAKE PEDAL
90041-01370

LD2#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90045-60119

LD2#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

LD2#

 1
47264A - PIN(FOR PUSH ROD)
90042-40068

LD2#

 1
90042-40070

LD2#

 1
Common parts
90042-52015
91656-60820
94110-50800
94512-00800
