LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

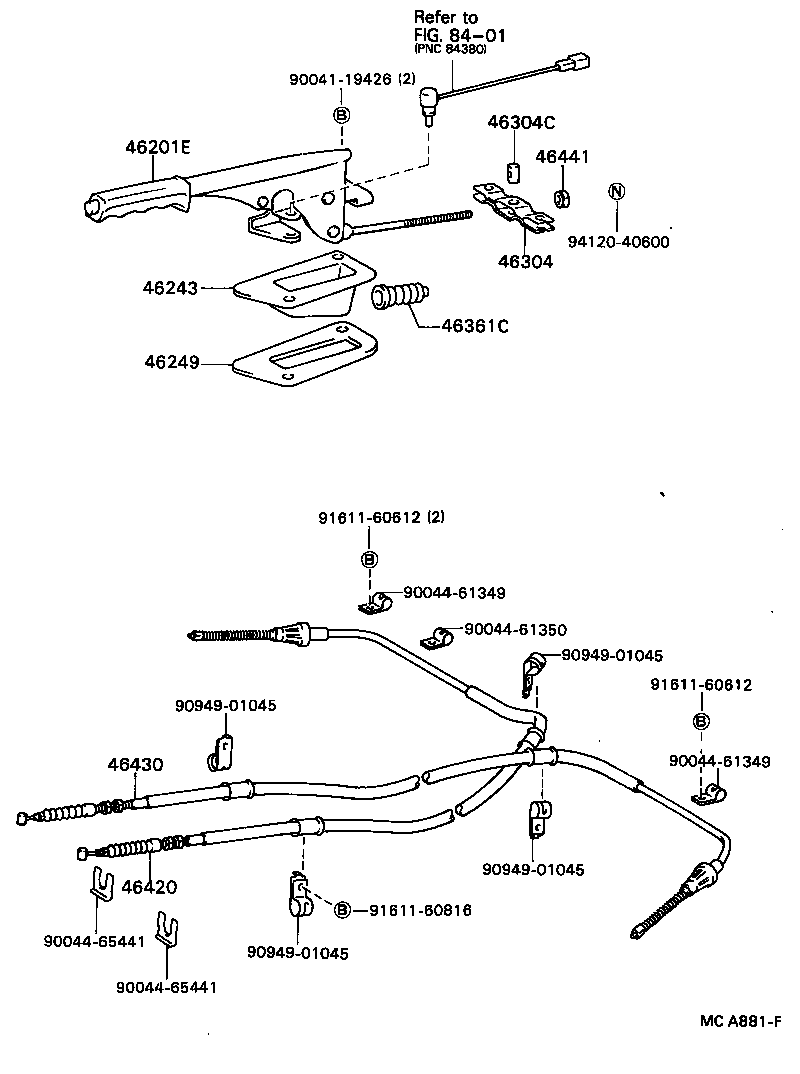

Click highlighted areas on diagram

diagram 46201E 46243 46249 46304 46304C 46361C 46420 46430 46441 8401 9004119426 9004461349 9004461349 9004461350 9004465441 9004465441 9094901045 9094901045 9094901045 9094901045 9161160612 9161160612 9161160816 9412040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-87607

LD2#

 1
46201-87605

LD2#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-87602

LD2#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-87601

LD2#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-87601

LD2#

 1
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
46343-87601

LD2#

 1
46361C - GROMMET(FOR PARKING BRAKE PULL ROD)
46432-87601

LD2#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46410-87609

LD2#

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46420-87601

LD2#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87601

LD2#

 1
Common parts
90041-19426
90044-61349
90044-61350
90044-65441
90949-01045
91611-60612
91611-60816
94120-40600
Linked diagrams
8401
