LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

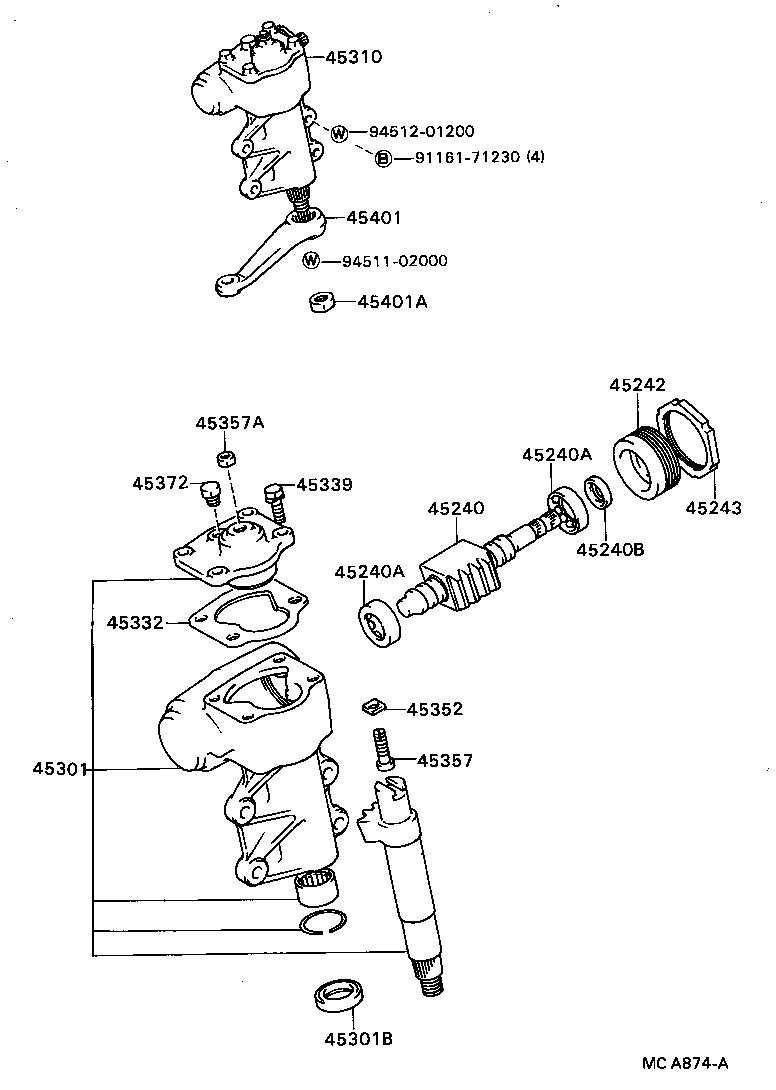

ILLUST NO. 2 OF 3(8405- )DSL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45220-87609 |
LD20..DSL |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90043-63101 |
LD20..DSL |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90043-63101 |
LD20..DSL |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90043-11117 |
LD20..DSL |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-87602 |
LD20..DSL |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-87602 |
LD20..DSL |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-87608 |
LD20..DSL |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90043-11168 |
LD20..DSL |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-87605 |
LD20..DSL |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-87604 |
LD20..DSL |
1 | ||
| 45339 - BOLT, STEERING GEAR HOUSING | ||||
| 45339-87602 |
LD20..DSL |
4 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-87602 |
LD20..DSL 厚さ=2.05,T=2.05 |
1 | ||
| 45352-87602 |
LD20..DSL 厚さ=2.00,T=2.00 |
1 | ||
| 45353-87602 |
LD20..DSL 厚さ=1.95,T=1.95 |
1 | ||
| 45355-87602 |
LD20..DSL 厚さ=2.10,T=2.10 |
1 | ||
| 45356-87602 |
LD20..DSL 厚さ=2.15,T=2.15 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-87605 |
LD20..DSL |
1 | ||
| 45357A - NUT, SECTOR SHAFT ADJUSTING | ||||
| 45358-87602 |
LD20..DSL |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90043-45019 |
LD20..DSL |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-87613 |
LD20..DSL |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90041-70231 |
LD20..DSL |
1 | ||
| Common parts | ||||
| 91161-71230 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
ILLUST NO. 2 OF 3(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-87601 |
LD2# |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-60020 |
LD2# |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-60011 |
LD2# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-87601 |
LD2# |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-87613 |
LD2# |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90041-70231 |
LD2# |
1 | ||
| Common parts | ||||
| 91161-71230 | ||||
| 94115-51200 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
ILLUST NO. 3 OF 3(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
LD2# |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LD2# |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LD2# |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
LD2# |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LD2# |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LD2# |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
LD2# |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
LD2# |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
LD2# |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LD2# |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-87601 |
LD2# |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
LD2# |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
LD2# |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LD2# 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 90301-33002 |
LD2# 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 96711-19010 |
LD2# 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LD2# 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 90301-33002 |
LD2# 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 96711-19010 |
LD2# 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LD2# 内径=65.0,外径=70.0,OD=70,T=2.5 |
1 | ||
| 90301-33002 |
LD2# 内径=33.7,外径=40.7,OD=40.7,T=3.5 |
1 | ||
| 96711-19010 |
LD2# 外径=13.6,内径=9.8,OD=13,T=1.9 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
LD2# 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
LD2# 内径=32,外径=40,OD=40.0,T=3 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
LD2# 内径=31.7,外径=34.1,厚さ=4,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
LD2# 内径=32,外径=40,OD=40.0,T=3 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
LD2# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
LD2# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LD2# |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LD2# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-87601 |
LD2# |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
LD2# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
LD2# |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
LD2# |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60010 |
LD2# |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60010 |
LD2# |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
LD2# |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
LD2# |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
LD2# |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22004 |
LD2# |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
LD2# |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LD2# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-87601 |
LD2# |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
LD2# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LD2# |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
ILLUST NO. 1 OF 3(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-87680 |
LD2# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90041-71031 |
LD2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90041-71031 |
LD2# |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-87601 |
LD2# |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-87601 |
LD2# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-87680 |
LD2# |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-87682 |
LD2# |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90041-71031 |
LD2# |
2 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90041-71031 |
LD2# |
2 | ||
| 45450C - SEAL, DUST(FOR RELAY ROD) | ||||
| 45479-87601 |
LD2# |
2 | ||
| 45450C - SEAL, DUST(FOR RELAY ROD) | ||||
| 45479-87601 |
LD2# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-87682 |
LD2# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-87603 |
LD2# |
1 | ||
| 45461A - NUT(FOR STEERING TIE ROD LOCK) | ||||
| 90041-70232 |
LD2# LH |
1 | ||
| 90041-70236 |
LD2# RH |
1 | ||
| 45461A - NUT(FOR STEERING TIE ROD LOCK) | ||||
| 90041-70232 |
LD2# LH |
1 | ||
| 90041-70236 |
LD2# RH |
1 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD2# |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD2# |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD2# |
4 | ||
| 45487 - BAND, STEERING LINK JOINT DUST SEAL | ||||
| 45487-87601 |
LD2# |
4 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90041-06008 |
LD2# |
2 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-87605 |
LD2# |
1 | ||
| Common parts | ||||
| 90042-52022 | ||||
| 91161-51255 | ||||
| 91161-71255 | ||||
| 94110-51000 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 95381-03030 | ||||
| 96451-00600 | ||||
| 96456-00609 | ||||
