LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )LD20 ; (8509- )LX5

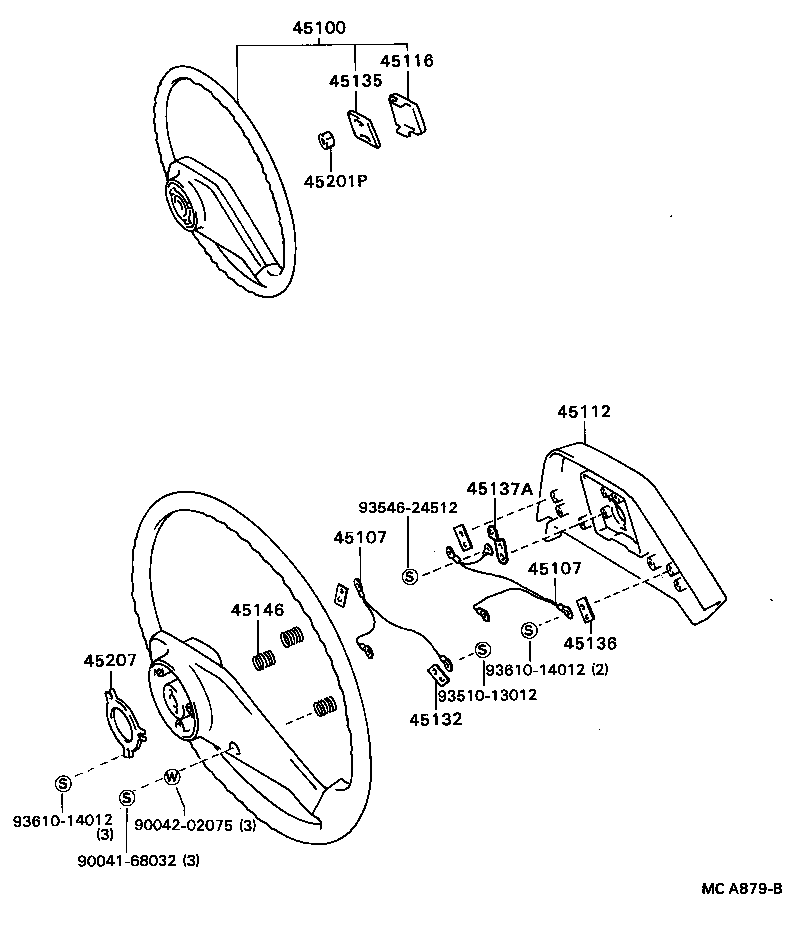

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-87605 |
LD2#..DX,LX,LX5 |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45108-87601 |
LD2#..DX,LX,LX5 LWR |
1 | ||
| 45107-87601 |
LD2#..DX,LX,LX5 UPR |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45108-87601 |
LD2#..DX,LX,LX5 LWR |
1 | ||
| 45107-87601 |
LD2#..DX,LX,LX5 UPR |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-87601 |
LD2#..DX,LX,LX5 |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-87604 |
LD2#..DX,LX,LX5 |
1 | ||
| 45132 - PLATE, HORN BUTTON BACK | ||||
| 45132-87601 |
LD2#..DX,LX,LX5 |
2 | ||
| 45135 - CUSHION, HORN BUTTON | ||||
| 45135-87603 |
LD2#..DX,LX,LX5 |
1 | ||
| 45136 - PLATE, HORN BUTTON CONTACT | ||||
| 45136-87602 |
LD2#..DX,LX,LX5 |
2 | ||
| 45137A - PLATE, HORN BUTTON CONTACT, NO.2 | ||||
| 45137-87603 |
LD2#..DX,LX,LX5 |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-87601 |
LD2#..DX,LX,LX5 |
3 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
LD2# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-87704 |
LD2#..DX,LX,LX5 |
1 | ||
| Common parts | ||||
| 90041-68032 | ||||
| 90042-02075 | ||||
| 93510-13012 | ||||
| 93546-24512 | ||||
| 93610-14012 | ||||
