LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

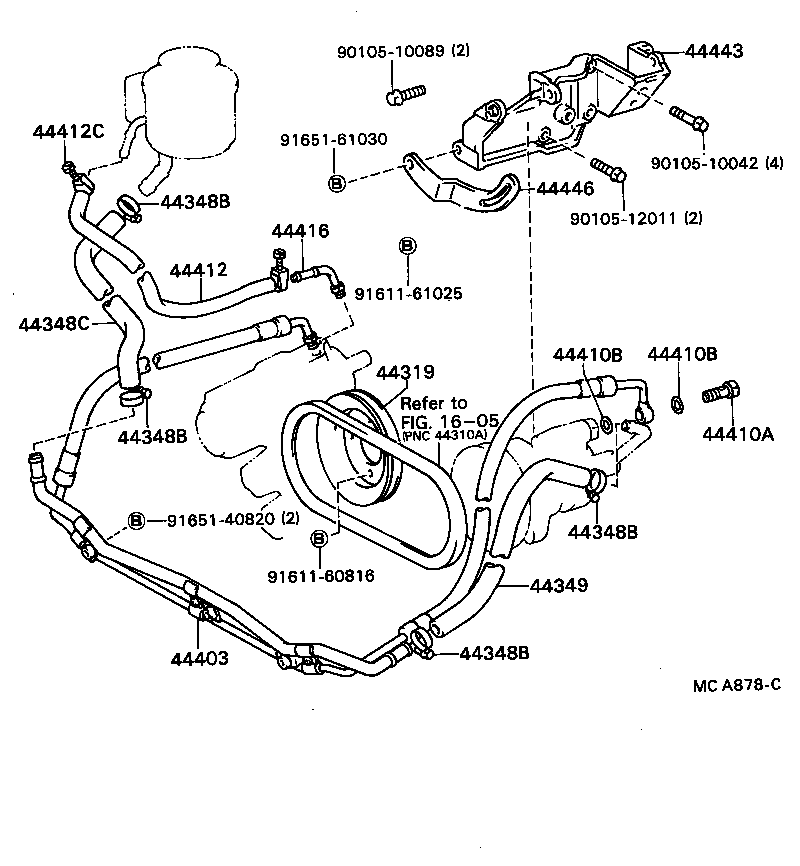

Click highlighted areas on diagram

diagram 1605 44319 44348B 44348B 44348B 44348B 44348C 44349 44403 44410A 44410B 44410B 44412 44412C 44416 44443 44446 9010510042 9010510089 9010512011 9161160816 9161161025 9165140820 9165161030
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30020

LD2#

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LD2#

 4
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LD2#

 4
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LD2#

 4
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LD2#

 4
44348C - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-87603

LD2#

 1
44349 - HOSE, OIL RESERVOIR TO PUMP, NO.2
44349-87601

LD2#

 1
44403 - TUBE SUB-ASSY, PRESSURE FEED, NO.1
44403-87603

LD2#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16005

LD2#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

LD2#

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

LD2#

 2
44412 - HOSE, RETURN
44412-87606

LD2#

 1
44412C - CLAMP(FOR RETURN HOSE)
90460-01001

LD2#

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-87603

LD2#

 1
44443 - BRACKET, PUMP
44443-22020

LD2#

 1
44446 - STRUT, ADJUSTING
44446-30050

LD2#

 1
Common parts
90105-10042
90105-10089
90105-12011
91611-60816
91611-61025
91651-40820
91651-61030
Linked diagrams
1605
