LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

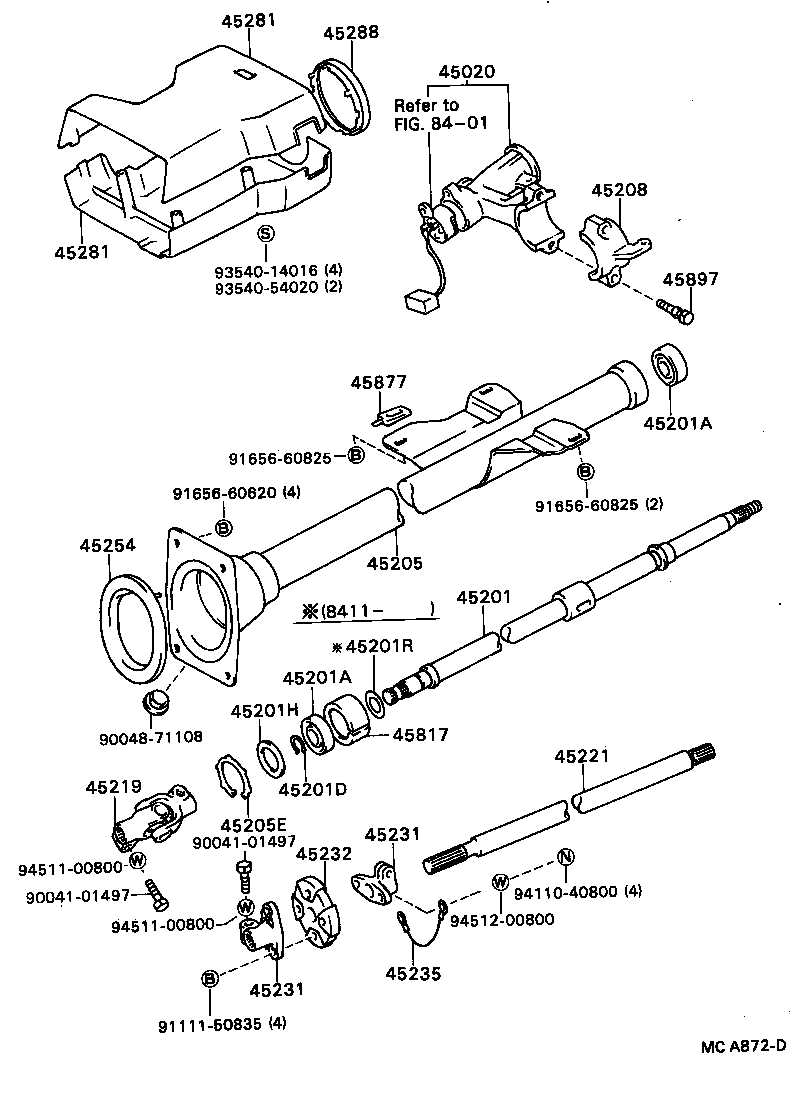

(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-87605 |
LD2#..V,WG |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-87606 |
LD20 |
1 | ||
| 45201-87604 |
LD20 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90043-63089 |
LD2# UPR |
1 | ||
| 90043-63116 |
LD2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90043-63089 |
LD2# UPR |
1 | ||
| 90043-63116 |
LD2# LWR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96150-01700 |
LD2# |
1 | ||
| 45201H - WASHER, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90042-01451 |
LD2# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-87601 |
LD20..LX |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90045-21069 |
LD2# |
1 | ||
| 45208 - HOUSING SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45281-87602 |
LD2# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45230-87601 |
LD2# |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-87604 |
LD20..DSL;LD21..LX5 |
1 | ||
| 45221-87605 |
LD2# W/POWER STEERING |
1 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87602 |
LD2# LWR |
1 | ||
| 45231-87601 |
LD20 UPR |
1 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87602 |
LD2# LWR |
1 | ||
| 45231-87601 |
LD20 UPR |
1 | ||
| 45232 - COUPLING, MAIN SHAFT FLEXIBLE | ||||
| 45232-87602 |
LD2# |
1 | ||
| 45235 - EARTH, FLEXIBLE COUPLING | ||||
| 45235-87501 |
LD2# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-87601 |
LD2# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87707 |
LD2# LWR |
1 | ||
| 45286-87707 |
LD2# UPR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87707 |
LD2# LWR |
1 | ||
| 45286-87707 |
LD2# UPR |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-87701 |
LD2# |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
LD2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-87601 |
LD2# |
2 | ||
| Common parts | ||||
| 90041-01497 | ||||
| 90048-71108 | ||||
| 91111-50835 | ||||
| 91656-60620 | ||||
| 91656-60825 | ||||
| 93540-14016 | ||||
| 93540-54020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

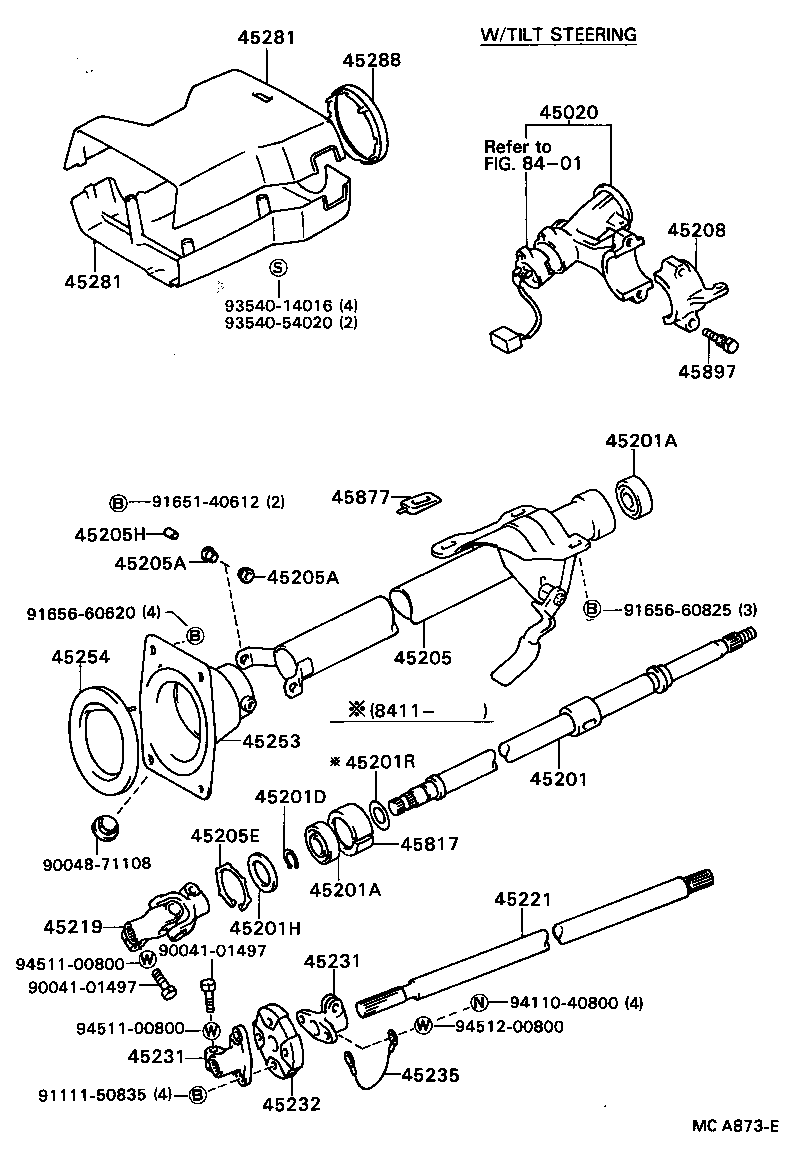

(8405- )LX
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-87605 |
LD2#..V,WG |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-87606 |
LD20 |
1 | ||
| 45201-87604 |
LD20 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90043-63089 |
LD2# UPR |
1 | ||
| 90043-63116 |
LD2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90043-63089 |
LD2# UPR |
1 | ||
| 90043-63116 |
LD2# LWR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96150-01700 |
LD2# |
1 | ||
| 45201H - WASHER, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90042-01451 |
LD2# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-87601 |
LD20..LX |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90043-86065 |
LD2#..LX,LX5,SX5 |
4 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90043-86065 |
LD2#..LX,LX5,SX5 |
4 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90045-21069 |
LD2# |
1 | ||
| 45205H - COLLAR(FOR STEERING COLUMN TUBE) | ||||
| 90043-89043 |
LD2#..LX,LX5,SX5 |
2 | ||
| 45208 - HOUSING SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45281-87602 |
LD2# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45230-87601 |
LD2# |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-87604 |
LD20..DSL;LD21..LX5 |
1 | ||
| 45221-87605 |
LD2# W/POWER STEERING |
1 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87602 |
LD2# LWR |
1 | ||
| 45231-87601 |
LD20 UPR |
1 | ||
| 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING | ||||
| 45231-87602 |
LD2# LWR |
1 | ||
| 45231-87601 |
LD20 UPR |
1 | ||
| 45232 - COUPLING, MAIN SHAFT FLEXIBLE | ||||
| 45232-87602 |
LD2# |
1 | ||
| 45235 - EARTH, FLEXIBLE COUPLING | ||||
| 45235-87501 |
LD2# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-87601 |
LD2# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87707 |
LD2# LWR |
1 | ||
| 45286-87707 |
LD2# UPR |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-87707 |
LD2# LWR |
1 | ||
| 45286-87707 |
LD2# UPR |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-87701 |
LD2# |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
LD2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-87601 |
LD2# |
2 | ||
| Common parts | ||||
| 90041-01497 | ||||
| 90048-71108 | ||||
| 91111-50835 | ||||
| 91651-40612 | ||||
| 91656-60620 | ||||
| 91656-60825 | ||||
| 93540-14016 | ||||
| 93540-54020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
