LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

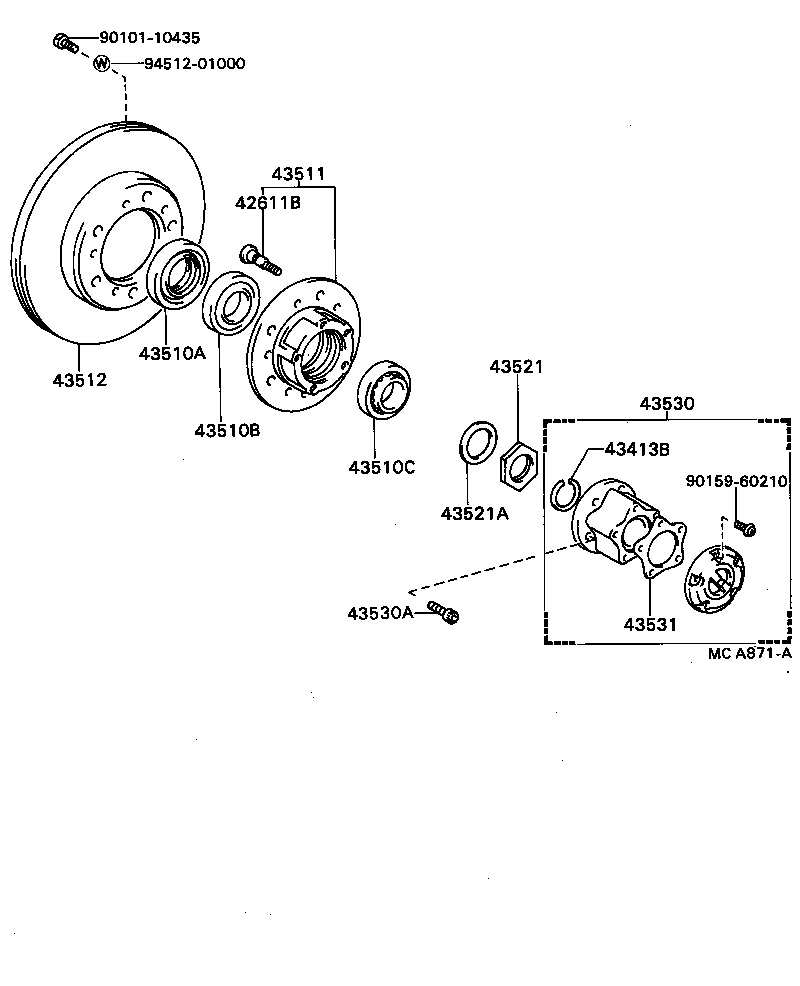

Click highlighted areas on diagram

diagram 42611B 43413B 43510A 43510B 43510C 43511 43512 43521 43521A 43530 43530A 43531 9010110435 9015960210 9451201000
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90049-12027

LD2#

 10
43413B - RING, DRIVE SHAFT SNAP
90045-20075

LD2#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90043-11080

LD2#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90043-66015

LD2#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90043-66014

LD2#

 2
43511 - HUB, FRONT AXLE
43502-87605

LD2#

 2
43512 - DISC, FRONT
43512-87603

LD2#

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-87601

LD2#

 4
43521A - WASHER, CLAW (FOR FRONT WHEEL ADJUSTING NUT)
90042-14006

LD2#

 2
43530 - HUB ASSY, FREE WHEEL
43530-87683

LD2#

 2
43530A - BOLT (FOR FREE WHEEL HUB)
90041-10018

LD20..DSL

W/ALUMI WHEEL

 10
90041-10014

LD2#

 10
43531 - GASKET, FREE WHEEL HUB
43531-87601

LD2#

 1
Common parts
90101-10435
90159-60210
94512-01000
