LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

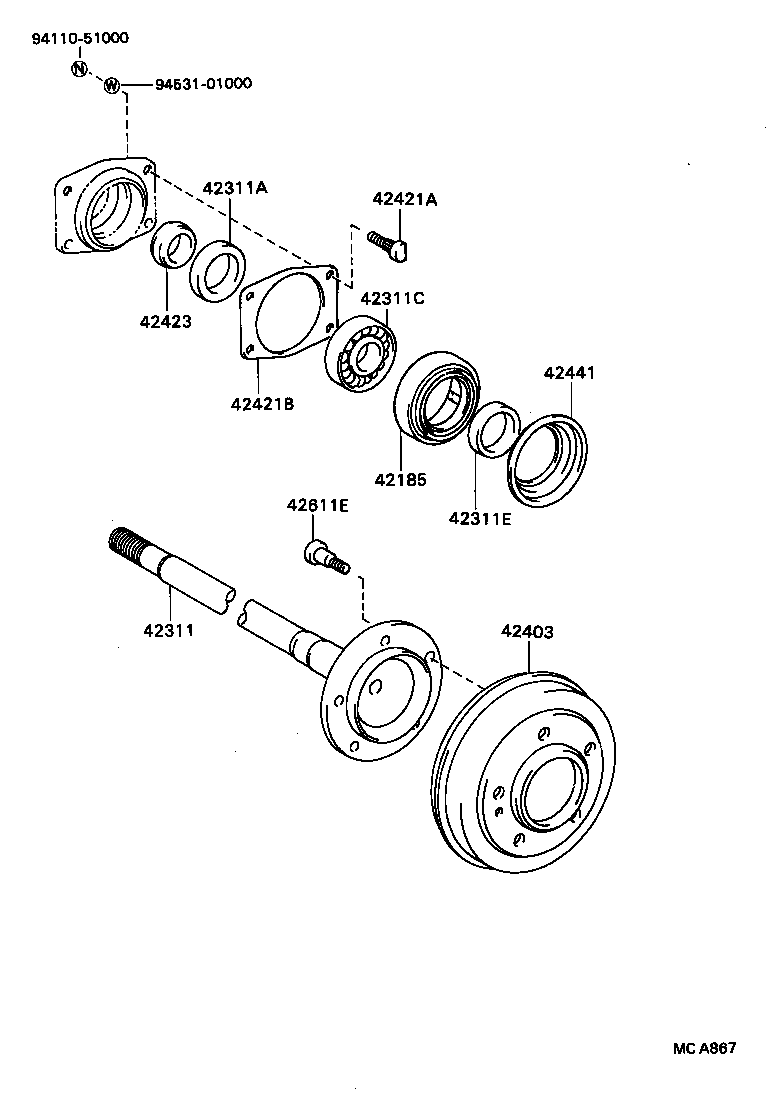

Click highlighted areas on diagram

diagram 42185 42311 42311A 42311C 42311E 42403 42421A 42421B 42423 42441 42611E 9411051000 9453101000
Part # Description Qty Price
42185 - GASKET, REAR AXLE HOUSING END
42185-87601

LD2#

 2
42311 - SHAFT, REAR AXLE
42311-87604

LD2#

RH

 1
42312-87604

LD2#

LH

 1
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

LD2#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90043-63100

LD2#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90043-11166

LD2#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
43512-87602

LD2#

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90041-14028

LD2#

 8
42421B - SHIM (FOR REAR AXLE BEARING CASE)
90045-65051

LD2#

T=0.25

 1
90045-65052

LD2#

T=0.50

 1
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-87601

LD2#

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42442-87602

LD2#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12025

LD2#

 10
Common parts
94110-51000
94531-01000
