LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

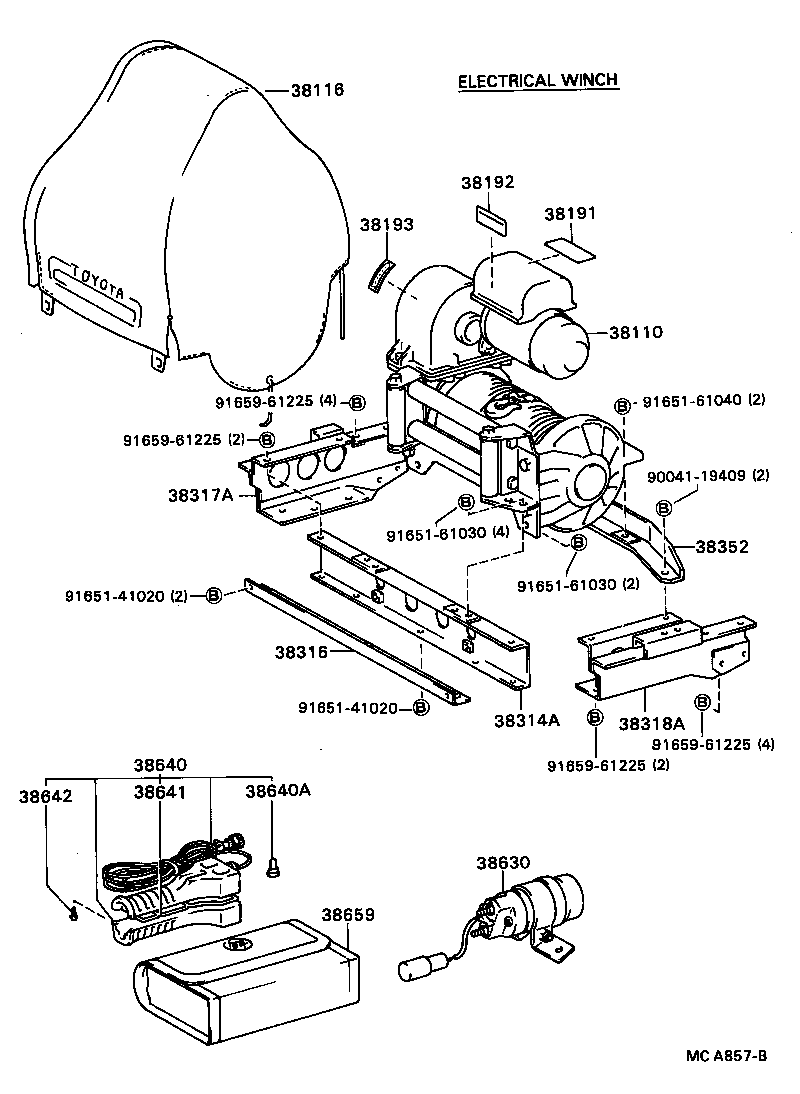

ILLUST NO. 1 OF 4(8405- )

Click highlighted areas on diagram

diagram 38110 38116 38191 38192 38193 38314A 38316 38317A 38318A 38352 38630 38640 38640A 38641 38642 38659 9004119409 9165141020 9165141020 9165161030 9165161030 9165161040 9165961225 9165961225 9165961225 9165961225
Part # Description Qty Price
38110 - WINCH ASSY
38110-87605

LD2#

MECHANICAL

 1
38110-60051

LD2#

ELECTRICAL

 1
38116 - COVER, WINCH
38116-87605

LD2#

MECHANICAL

 1
38116-87608

LD2#

ELECTRICAL

 1
38191 - PLATE, WINCH CAUTION, NO.1
38191-87605

LD2#

MECHANICAL

 1
38191-60040

LD2#

ELECTRICAL

 1
38192 - PLATE, WINCH CAUTION, NO.2
38192-60020

LD2#

ELECTRICAL

 1
38193 - PLATE, WINCH CAUTION, NO.3
38193-60020

LD2#

ELECTRICAL

 1
38314A - CROSSMEMBER, WINCH SUPPORT, FRONT
38314-87603

LD2#

 1
38316 - REINFORCEMENT, WINCH SUPPORT, FRONT
38316-87603

LD2#

 1
38317A - EXTENSION, WINCH SUPPORT, RH
38317-87605

LD2#

 1
38318A - EXTENSION, WINCH SUPPORT, LH
38318-87603

LD2#

 1
38352 - SUPPORT, WINCH BASE
38352-87602

LD2#

ELECTRICAL

 1
38630 - SWITCH ASSY, MAGNET, NO.1
38630-87602

LD2#

ELECTRICAL

 1
38640 - SWITCH ASSY, WINCH CONTROL
38640-60010

LD2#

ELECTRICAL

 1
38640A - BULB (FOR WINCH CONTROL SWITCH)
90981-11024

LD2#

12V 1.4W,ELECTRICAL

 2
38641 - GASKET (FOR WINCH CONTROL SWITCH)
38641-60010

LD2#

ELECTRICAL

 1
38642 - SCREW (FOR WINCH CONTROL SWITCH)
38642-60010

LD2#

ELECTRICAL

 8
38659 - COVER, WINCH CONTROL SWITCH
38659-60010

LD2#

ELECTRICAL

 1
Common parts
90041-19409
91651-41020
91651-61030
91651-61040
91659-61225

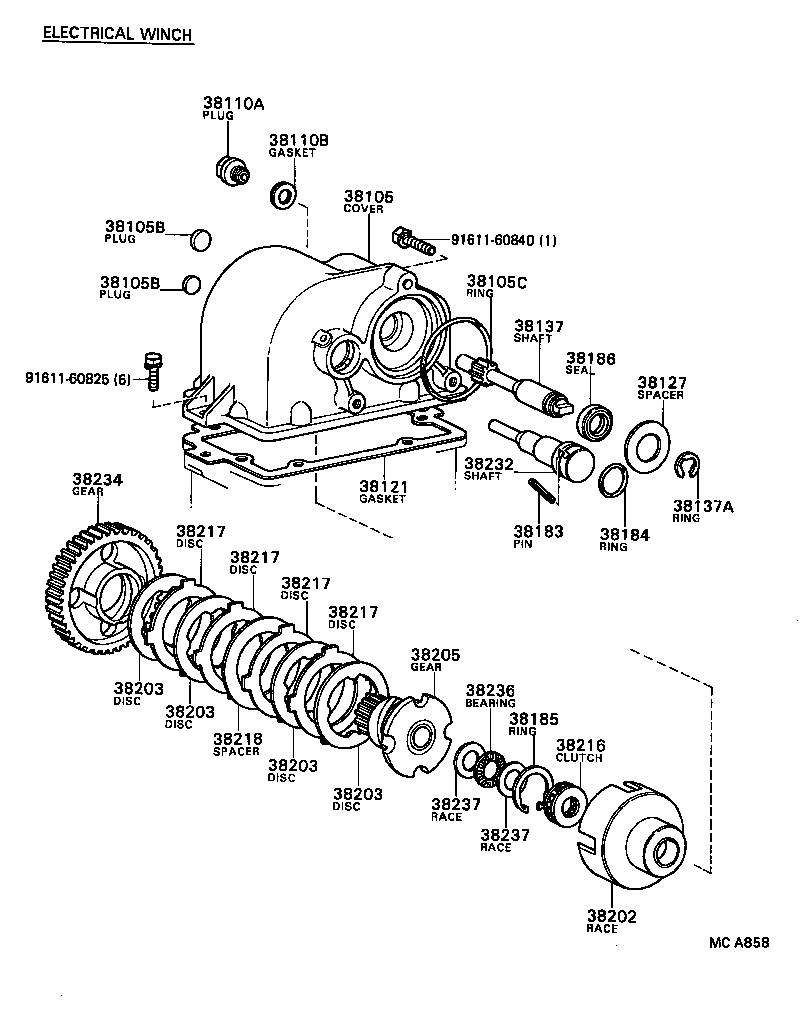

ILLUST NO. 2 OF 4(8405- )

Click highlighted areas on diagram

diagram 38105 38105B 38105B 38105C 38110A 38110B 38121 38127 38137 38137A 38183 38184 38185 38186 38202 38203 38203 38203 38203 38205 38216 38217 38217 38217 38217 38218 38232 38234 38236 38237 38237 9161160825 9161160840
Part # Description Qty Price
38105 - COVER SUB-ASSY, WINCH GEAR CASE
38105-60041

LD2#

ELECTRICAL

 1
38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER)
90331-20001

LD2#

OD=20,ELECTRICAL

 1
90331-16050

LD2#

OD=16,ELECTRICAL

 1
38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER)
90331-20001

LD2#

OD=20,ELECTRICAL

 1
90331-16050

LD2#

OD=16,ELECTRICAL

 1
38105C - RING, O (FOR WINCH GEAR CASE COVER)
90301-59044

LD2#

ELECTRICAL

 1
38110A - PLUG, FILLER
90341-18002

LD2#

ELECTRICAL

 1
90341-18049

LD2#

MECHANICAL

 1
38110B - GASKET (FOR FILLER PLUG)
90430-18007

LD2#

ELECTRICAL

 1
12157-10010

LD2#

MECHANICAL

 1
38121 - GASKET, WINCH GEAR CASE COVER
38121-60040

LD2#

ELECTRICAL

 1
38121-87603

LD2#

MECHANICAL

 1
38127 - SPACER, INPUT SHAFT
38127-60040

LD2#

ELECTRICAL

 1
38137 - SHAFT, WINCH INPUT
38137-60040

LD2#

ELECTRICAL

 1
38137A - RING, E (FOR WINCH INPUT SHAFT)
96160-01500

LD2#

ELECTRICAL

 1
38183 - PIN, BRAKE SHAFT LOCK
38183-60041

LD2#

ELECTRICAL

 1
38184 - RING, BRAKE SHAFT, O
38184-60041

LD2#

ELECTRICAL

 1
38185 - RING, CLUTCH OUTER RACE SNAP
38185-60041

LD2#

ELECTRICAL

 1
38186 - SEAL, GEAR CASE COVER OIL
38186-60040

LD2#

ELECTRICAL

 1
38202 - RACE SUB-ASSY, CLUTCH, OUTER
38202-60041

LD2#

ELECTRICAL

 1
38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER
38203-60040

LD2#

ELECTRICAL

 4
38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER
38203-60040

LD2#

ELECTRICAL

 4
38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER
38203-60040

LD2#

ELECTRICAL

 4
38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER
38203-60040

LD2#

ELECTRICAL

 4
38205 - GEAR SUB-ASSY, BRAKE SHAFT DRIVEN
38205-60040

LD2#

ELECTRICAL

 1
38216 - CLUTCH, WINCH 1 WAY
38216-60041

LD2#

ELECTRICAL

 1
38217 - DISC, WINCH CLUTCH, OUTER
38217-60040

LD2#

ELECTRICAL

 4
38217 - DISC, WINCH CLUTCH, OUTER
38217-60040

LD2#

ELECTRICAL

 4
38217 - DISC, WINCH CLUTCH, OUTER
38217-60040

LD2#

ELECTRICAL

 4
38217 - DISC, WINCH CLUTCH, OUTER
38217-60040

LD2#

ELECTRICAL

 4
38218 - SPACER, CLUTCH DISC
38218-60040

LD2#

ELECTRICAL

 1
38232 - SHAFT, WINCH BRAKE
38232-60041

LD2#

ELECTRICAL

 1
38234 - GEAR, BRAKE SHAFT DRIVE
38234-60040

LD2#

ELECTRICAL

 1
38236 - BEARING, GEAR THRUST
38236-60040

LD2#

ELECTRICAL

 1
38237 - RACE, GEAR THRUST BEARING
38237-60040

LD2#

ELECTRICAL

 2
38237 - RACE, GEAR THRUST BEARING
38237-60040

LD2#

ELECTRICAL

 2
Common parts
91611-60825
91611-60840

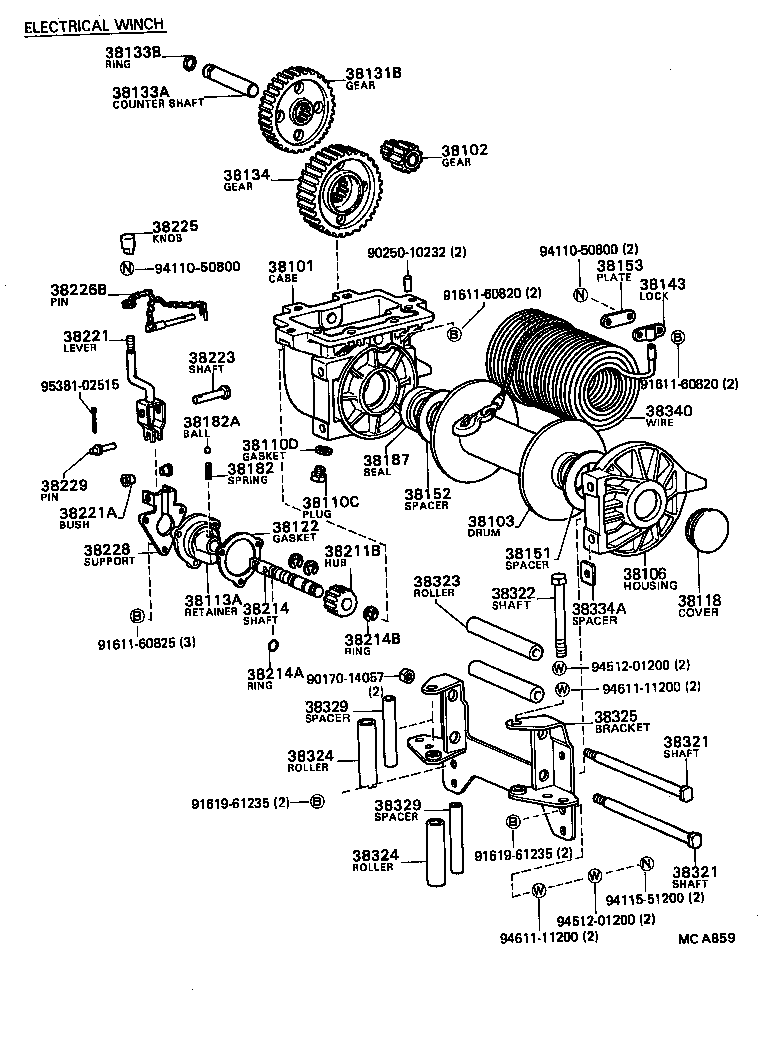

ILLUST NO. 3 OF 4(8405- )

Click highlighted areas on diagram

diagram 38101 38102 38103 38106 38110C 38110D 38113A 38118 38122 38131B 38133A 38133B 38134 38143 38151 38152 38153 38182 38182A 38187 38211B 38214 38214A 38214B 38221 38221A 38223 38225 38226B 38228 38229 38321 38321 38322 38323 38324 38324 38325 38329 38329 38334A 38340 9017014057 9025010232 9161160820 9161160820 9161160825 9161961235 9161961235 9411050800 9411050800 9411551200 9451201200 9451201200 9461111200 9461111200 9538102515
Part # Description Qty Price
38101 - CASE SUB-ASSY, WINCH GEAR
38101-60040

LD2#

ELECTRICAL

 1
38101-87605

LD2#

MECHANICAL

 1
38102 - GEAR SUB-ASSY, COUNTERSHAFT
38102-60040

LD2#

ELECTRICAL

 1
38103 - DRUM SUB-ASSY, WINCH
38103-60040

LD2#

ELECTRICAL

 1
38103-87603

LD2#

MECHANICAL

 1
38106 - HOUSING SUB-ASSY, WINCH DRUM
38106-60040

LD2#

ELECTRICAL

 1
38110C - PLUG, DRAIN
90341-18057

LD2#

ELECTRICAL

 1
90341-18049

LD2#

MECHANICAL

 1
38110D - GASKET (FOR DRAIN PLUG)
90430-18007

LD2#

ELECTRICAL

 1
12157-10010

LD2#

MECHANICAL

 1
38113A - RETAINER, SHIFT SHAFT
38113-60040

LD2#

ELECTRICAL

 1
38118 - COVER, WINCH DRUM HOUSING
38118-60040

LD2#

ELECTRICAL

 1
38122 - GASKET, SHIFT SHAFT RETAINER
38122-60040

LD2#

ELECTRICAL

 1
38131B - GEAR, COUNTER, NO.1
38131-60040

LD2#

ELECTRICAL

 1
38133A - COUNTER SHAFT
38133-60040

LD2#

ELECTRICAL

 1
38133B - RING, O (FOR COUNTER SHAFT)
96710-02014

LD2#

ELECTRICAL

 1
38134 - GEAR, WINCH OUTPUT
38134-60040

LD2#

ELECTRICAL

 1
38143 - LOCK, WIRE
38143-60010

LD2#

ELECTRICAL

 1
38143-87602

LD2#

MECHANICAL

 1
38151 - SPACER, WINCH DRUM, NO.1
38151-60040

LD2#

ELECTRICAL

 1
38152 - SPACER, WINCH DRUM, NO.2
38152-60040

LD2#

ELECTRICAL

 1
38153 - PLATE, WIRE LOCK
38153-60040

LD2#

ELECTRICAL

 1
38182 - SPRING, SHIFT LOCK
38182-60040

LD2#

ELECTRICAL

 1
38182A - BALL (FOR SHIFT LOCK SPRING)
90360-06004

LD2#

ELECTRICAL

 1
38187 - SEAL, GEAR CASE OIL
38187-60040

LD2#

ELECTRICAL

 1
38211B - HUB, WINCH CLUTCH
38211-60040

LD2#

ELECTRICAL

 1
38214 - SHIM, WINCH WORM ADJUST, NO.2
38214-60040

LD2#

ELECTRICAL

 1
38214A - RING, O (FOR CLUTCH HUB SHIFT SHAFT)
90301-11053

LD2#

ELECTRICAL

 1
38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT)
96160-01200

LD2#

ELECTRICAL

 3
38221 - LEVER, CLUTCH HUB SHIFT
38221-60040

LD2#

ELECTRICAL

 1
38221-87601

LD2#

MECHANICAL

 1
38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER)
90386-10121

LD2#

ELECTRICAL

 2
38223 - SHAFT, CLUTCH SHIFT LEVER
38223-60040

LD2#

ELECTRICAL

 1
38225 - KNOB, WINCH CLUTCH LEVER
38225-60040

LD2#

ELECTRICAL

 1
38225-87601

LD2#

MECHANICAL

 1
38226B - PIN, CLUTCH SHIFT LEVER LOCK
38226-60040

LD2#

ELECTRICAL

 1
90042-54040

LD2#

MECHANICAL

 1
38228 - SUPPORT, CLUTCH SHIFT LEVER
38228-60040

LD2#

ELECTRICAL

 1
38229 - PIN, CLUTCH SHIFT LEVER
38229-60040

LD2#

ELECTRICAL

 1
38321 - SHAFT, WINCH ROLLER
38321-87602

LD2#

MECHANICAL

 2
38321-60010

LD2#

ELECTRICAL

 2
38321 - SHAFT, WINCH ROLLER
38321-87602

LD2#

MECHANICAL

 2
38321-60010

LD2#

ELECTRICAL

 2
38322 - SHAFT, WINCH ROLLER, NO.2
90101-12029

LD2#

ELECTRICAL

 2
90041-01308

LD2#

MECHANICAL

 2
38323 - ROLLER, WINCH WIRE GUIDE, NO.1
38302-60010

LD2#

MECHANICAL

 2
38323-60040

LD2#

ELECTRICAL

 2
38324 - ROLLER, WINCH WIRE GUIDE, NO.2
38324-60040

LD2#

ELECTRICAL

 2
38324-87602

LD2#

MECHANICAL

 2
38324 - ROLLER, WINCH WIRE GUIDE, NO.2
38324-60040

LD2#

ELECTRICAL

 2
38324-87602

LD2#

MECHANICAL

 2
38325 - BRACKET, WINCH ROLLER, NO.1
38325-60040

LD2#

ELECTRICAL

 1
38329 - SPACER, WINCH WIRE GUIDE ROLLER
38329-60040

LD2#

ELECTRICAL

 2
38329-87602

LD2#

MECHANICAL

 2
38329 - SPACER, WINCH WIRE GUIDE ROLLER
38329-60040

LD2#

ELECTRICAL

 2
38329-87602

LD2#

MECHANICAL

 2
38334A - SPACER, REAR MEMBER
38334-60040

LD2#

ELECTRICAL

 4
38340 - WIRE ASSY, WINCH CHAIN
38340-60040

LD2#

ELECTRICAL

 1
38340-87602

LD2#

MECHANICAL

 1
Common parts
90170-14057
90250-10232
91611-60820
91611-60825
91619-61235
94110-50800
94115-51200
94512-01200
94611-11200
95381-02515

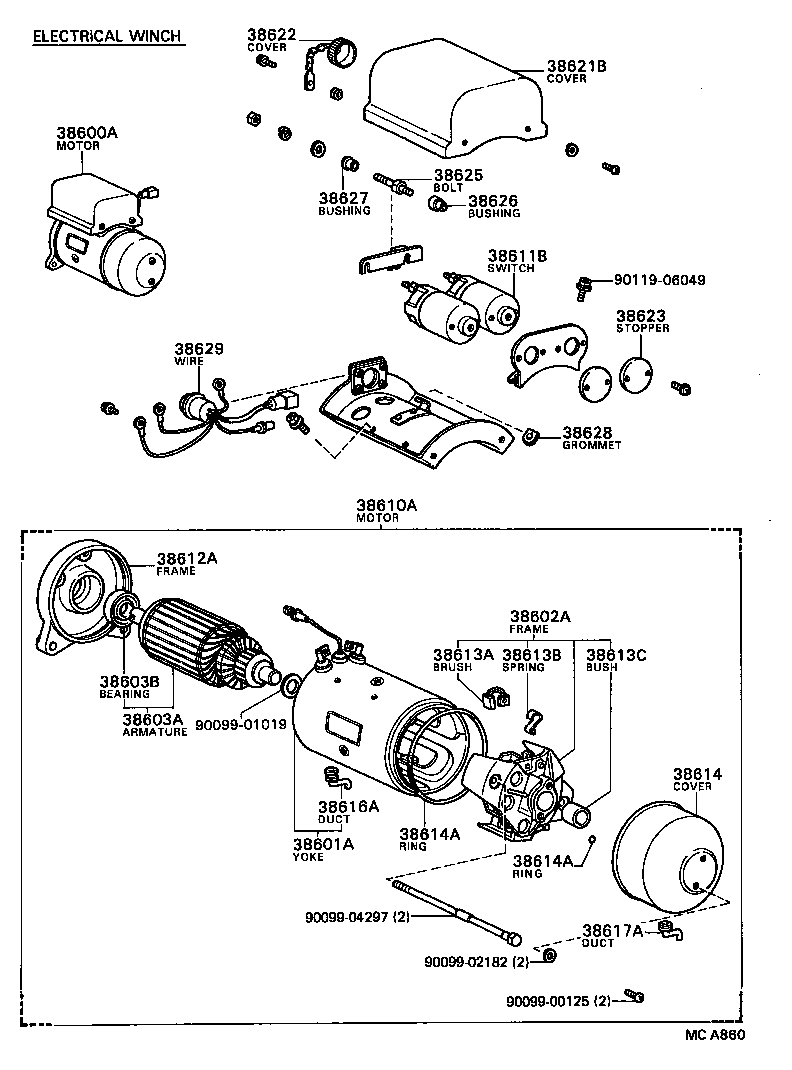

ILLUST NO. 4 OF 4(8405- )

Click highlighted areas on diagram

diagram 38600A 38601A 38602A 38603A 38603B 38610A 38611B 38612A 38613A 38613B 38613C 38614 38614A 38614A 38616A 38617A 38621B 38622 38623 38625 38626 38627 38628 38629 9009900125 9009901019 9009902182 9009904297 9011906049
Part # Description Qty Price
38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH
38600-60010

LD2#

ELECTRICAL

 1
38601A - YOKE SUB-ASSY, WINCH MOTOR
38601-60010

LD2#

ELECTRICAL

 1
38602A - FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER)
38602-60010

LD2#

ELECTRICAL

 1
38603A - ARMATURE SUB-ASSY, WINCH MOTOR
38603-60010

LD2#

ELECTRICAL

 1
38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)
90099-10130

LD2#

ELECTRICAL

 1
38610A - MOTOR ASSY, WINCH
38610-60010

LD2#

ELECTRICAL

 1
38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)
38611-60010

LD2#

ELECTRICAL

 2
38612A - FRAME, WINCH MOTOR END
38612-60010

LD2#

ELECTRICAL

 1
38613A - BRUSH, WINCH MOTOR
38613-60010

LD2#

ELECTRICAL

 4
38613B - SPRING, WINCH MOTOR BRUSH
28143-46012

LD2#

ELECTRICAL

 4
38613C - BUSH (FOR WINCH MOTOR)
28111-46011

LD2#

ELECTRICAL

 1
38614 - COVER, COMMUTATOR WINCH
38614-60010

LD2#

ELECTRICAL

 1
38614A - RING, O(FOR WINCH MOTOR)
90099-14023

LD2#

OD=112.4,ELECTRICAL

 1
90099-14028

LD2#

ELECTRICAL

 2
38614A - RING, O(FOR WINCH MOTOR)
90099-14023

LD2#

OD=112.4,ELECTRICAL

 1
90099-14028

LD2#

ELECTRICAL

 2
38616A - DUCT, YOKE WINCH
38616-60010

LD2#

ELECTRICAL

 1
38617A - DUCT, COVER WINCH
38617-60010

LD2#

ELECTRICAL

 1
38621B - COVER, MAGNET SWITCH WINCH
38621-60010

LD2#

ELECTRICAL

 1
38622 - COVER, CONNECTOR WINCH
38622-60010

LD2#

ELECTRICAL

 1
38623 - STOPPER, WINCH MOTOR
38623-60010

LD2#

ELECTRICAL

 2
38625 - BOLT, STUD WINCH MOTOR
38625-60010

LD2#

ELECTRICAL

 1
38626 - BUSHING, STEPPED FEMALE WINCH MOTOR
38626-60010

LD2#

ELECTRICAL

 1
38627 - BUSHING, STEPPED MALE WINCH MOTOR
38627-60011

LD2#

ELECTRICAL

 1
38628 - GROMET, WINCH
38628-60010

LD2#

ELECTRICAL

 1
38629 - WIRE, WINCH MOTOR
38629-60010

LD2#

ELECTRICAL

 1
Common parts
90099-00125
90099-01019
90099-02182
90099-04297
90119-06049

ILLUST NO. 1 OF 3(8405- )

Click highlighted areas on diagram

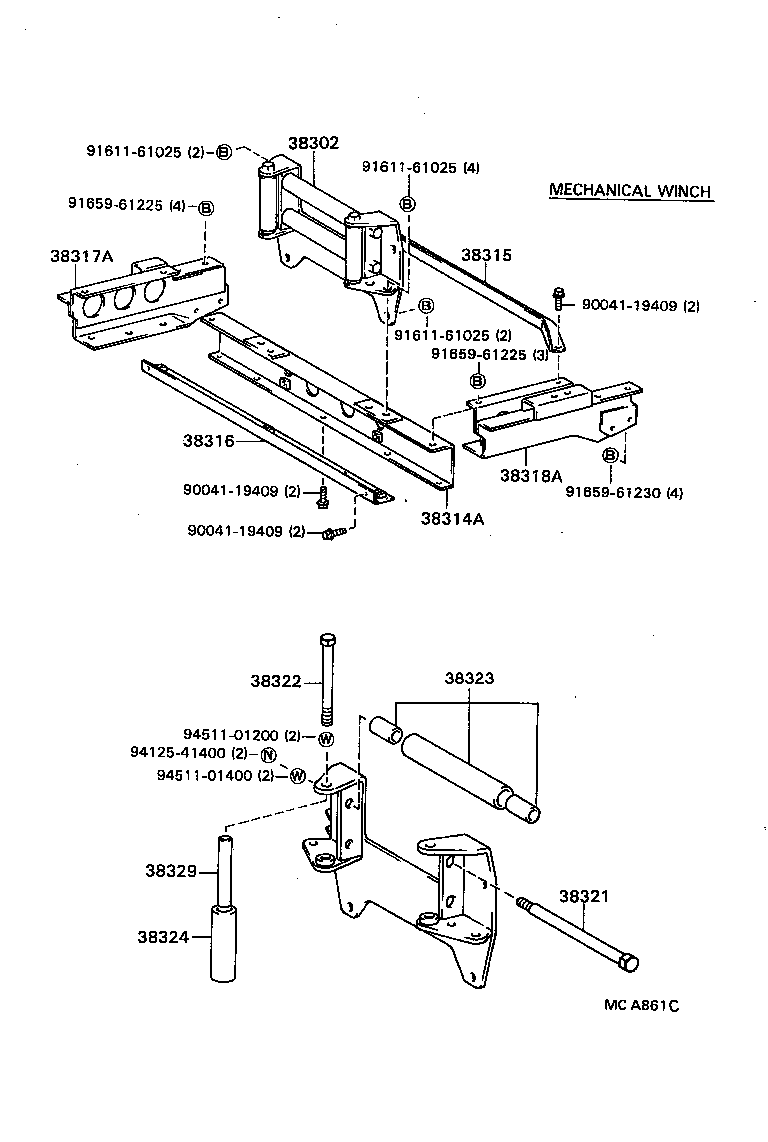

diagram 38302 38314A 38315 38316 38317A 38318A 38321 38322 38323 38324 38329 9004119409 9004119409 9004119409 9161161025 9161161025 9161161025 9165961225 9165961225 9165961230 9412541400 9451101200 9451101400
Part # Description Qty Price
38302 - ROLLER SUB-ASSY, WINCH WIRE GUIDE
38302-87601

LD2#

MECHANICAL

 1
38314A - CROSSMEMBER, WINCH SUPPORT, FRONT
38314-87603

LD2#

 1
38315 - CROSSMEMBER, WINCH SUPPORT, REAR
38315-87605

LD2#

MECHANICAL

 1
38316 - REINFORCEMENT, WINCH SUPPORT, FRONT
38316-87603

LD2#

 1
38317A - EXTENSION, WINCH SUPPORT, RH
38317-87605

LD2#

 1
38318A - EXTENSION, WINCH SUPPORT, LH
38318-87603

LD2#

 1
38321 - SHAFT, WINCH ROLLER
38321-87602

LD2#

MECHANICAL

 2
38321-60010

LD2#

ELECTRICAL

 2
38322 - SHAFT, WINCH ROLLER, NO.2
90101-12029

LD2#

ELECTRICAL

 2
90041-01308

LD2#

MECHANICAL

 2
38323 - ROLLER, WINCH WIRE GUIDE, NO.1
38302-60010

LD2#

MECHANICAL

 2
38323-60040

LD2#

ELECTRICAL

 2
38324 - ROLLER, WINCH WIRE GUIDE, NO.2
38324-60040

LD2#

ELECTRICAL

 2
38324-87602

LD2#

MECHANICAL

 2
38329 - SPACER, WINCH WIRE GUIDE ROLLER
38329-60040

LD2#

ELECTRICAL

 2
38329-87602

LD2#

MECHANICAL

 2
Common parts
90041-19409
91611-61025
91659-61225
91659-61230
94125-41400
94511-01200
94511-01400

ILLUST NO. 2 OF 3(8405- )

Click highlighted areas on diagram

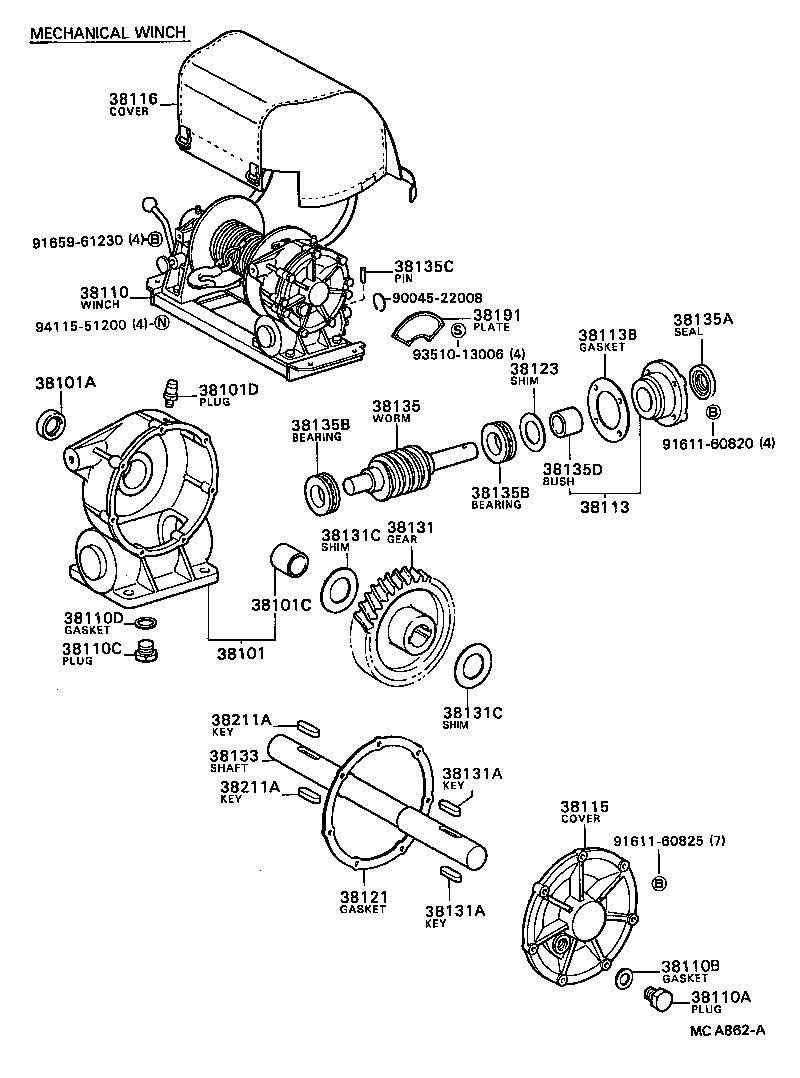

diagram 38101 38101A 38101C 38101D 38110 38110A 38110B 38110C 38110D 38113 38113B 38115 38116 38121 38123 38131 38131A 38131A 38131C 38131C 38133 38135 38135A 38135B 38135B 38135C 38135D 38191 38211A 38211A 9004522008 9161160820 9161160825 9165961230 9351013006 9411551200
Part # Description Qty Price
38101 - CASE SUB-ASSY, WINCH GEAR
38101-60040

LD2#

ELECTRICAL

 1
38101-87605

LD2#

MECHANICAL

 1
38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE)
90043-11152

LD2#

MECHANICAL

 1
38101C - BUSH, SOLID (FOR WINCH GEAR CASE)
90043-87062

LD2#

MECHANICAL

 1
38101D - PLUG, BREATHER (FOR WINCH GEAR CASE)
90930-03031

LD2#

MECHANICAL

 1
38110 - WINCH ASSY
38110-87605

LD2#

MECHANICAL

 1
38110-60051

LD2#

ELECTRICAL

 1
38110A - PLUG, FILLER
90341-18002

LD2#

ELECTRICAL

 1
90341-18049

LD2#

MECHANICAL

 1
38110B - GASKET (FOR FILLER PLUG)
90430-18007

LD2#

ELECTRICAL

 1
12157-10010

LD2#

MECHANICAL

 1
38110C - PLUG, DRAIN
90341-18057

LD2#

ELECTRICAL

 1
90341-18049

LD2#

MECHANICAL

 1
38110D - GASKET (FOR DRAIN PLUG)
90430-18007

LD2#

ELECTRICAL

 1
12157-10010

LD2#

MECHANICAL

 1
38113 - RETAINER, WORM BEARING
38104-87601

LD2#

MECHANICAL

 1
38113B - GASKET, WORM BEARING REATAINER
90044-30199

LD2#

MECHANICAL

 1
38115 - COVER, WINCH GEAR CASE
38105-87601

LD2#

MECHANICAL

 1
38116 - COVER, WINCH
38116-87605

LD2#

MECHANICAL

 1
38116-87608

LD2#

ELECTRICAL

 1
38121 - GASKET, WINCH GEAR CASE COVER
38121-60040

LD2#

ELECTRICAL

 1
38121-87603

LD2#

MECHANICAL

 1
38123 - SHIM, ADJUST
90045-64149

LD2#

T=0.1,MECHANICAL

 1
90045-64148

LD2#

T=0.2,MECHANICAL

 1
38131 - GEAR, WORM
38131-87603

LD2#

MECHANICAL

 1
38131A - KEY, SLIDING (FOR WINCH WORM GEAR)
90042-81031

LD2#

MECHANICAL

 2
38131A - KEY, SLIDING (FOR WINCH WORM GEAR)
90042-81031

LD2#

MECHANICAL

 2
38131C - SHIM, WORM GEAR
90045-64150

LD2#

T=0.2,MECHANICAL

 1
90045-64151

LD2#

T=0.1,MECHANICAL

 1
38131C - SHIM, WORM GEAR
90045-64150

LD2#

T=0.2,MECHANICAL

 1
90045-64151

LD2#

T=0.1,MECHANICAL

 1
38133 - SHAFT, WORM GEAR
38133-87603

LD2#

MECHANICAL

 1
38135 - WORM, WINCH
38135-87603

LD2#

MECHANICAL

 1
38135A - SEAL, TYPE T OIL (FOR WINCH WORM)
90043-11128

LD2#

MECHANICAL

 1
38135B - BEARING (FOR WINCH WORM)
90043-67018

LD2#

MECHANICAL

 2
38135B - BEARING (FOR WINCH WORM)
90043-67018

LD2#

MECHANICAL

 2
38135C - PIN, SAFETY LOCK
90042-50096

LD2#

MECHANICAL

 1
38135D - BUSH (FOR WINCH WORM)
90043-87084

LD2#

MECHANICAL

 1
38191 - PLATE, WINCH CAUTION, NO.1
38191-87605

LD2#

MECHANICAL

 1
38191-60040

LD2#

ELECTRICAL

 1
38211A - KEY, WINCH CLUTCH
90042-81032

LD2#

MECHANICAL

 2
38211A - KEY, WINCH CLUTCH
90042-81032

LD2#

MECHANICAL

 2
Common parts
90045-22008
91611-60820
91611-60825
91659-61230
93510-13006
94115-51200

ILLUST NO. 3 OF 3(8405- )

Click highlighted areas on diagram

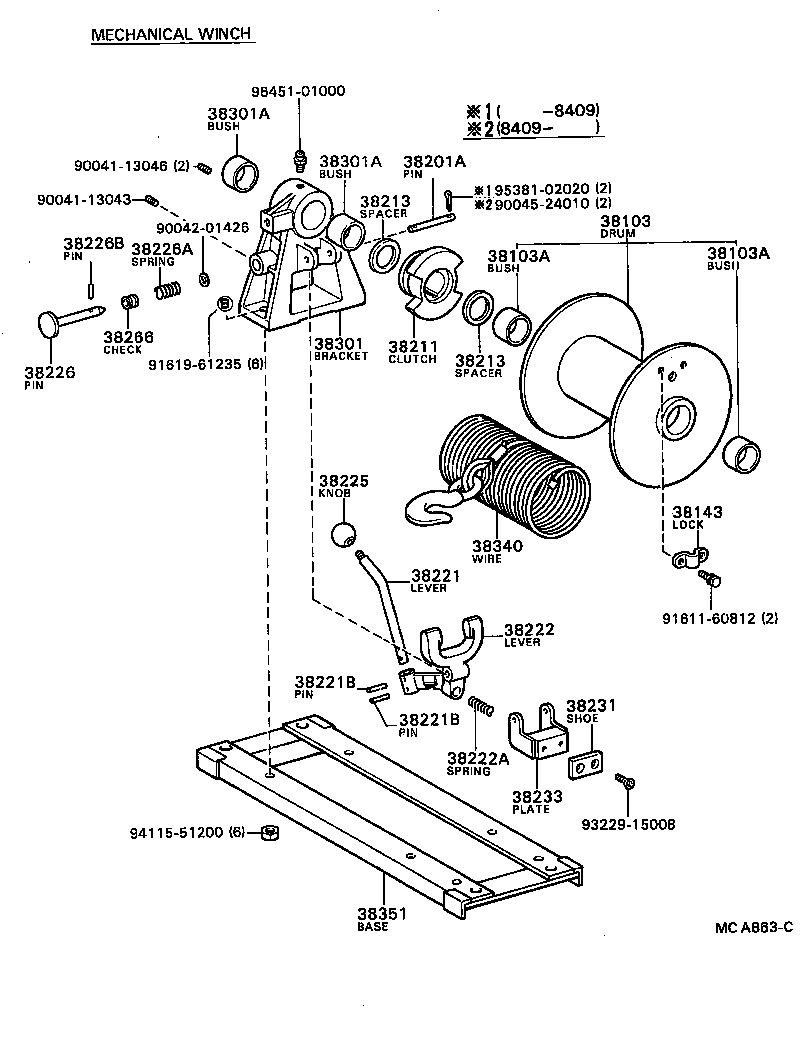

diagram 38103 38103A 38103A 38143 38201A 38211 38213 38213 38221 38221B 38221B 38222 38222A 38225 38226 38226A 38226B 38231 38233 38266 38301 38301A 38301A 38340 38351 9004113043 9004113046 9004201426 9004524010 9161160812 9161961235 9322915008 9411551200 9538102020 9645101000
Part # Description Qty Price
38103 - DRUM SUB-ASSY, WINCH
38103-60040

LD2#

ELECTRICAL

 1
38103-87603

LD2#

MECHANICAL

 1
38103A - BUSH (FOR WINCH DRUM)
90043-87062

LD2#

MECHANICAL

 2
38103A - BUSH (FOR WINCH DRUM)
90043-87062

LD2#

MECHANICAL

 2
38143 - LOCK, WIRE
38143-60010

LD2#

ELECTRICAL

 1
38143-87602

LD2#

MECHANICAL

 1
38201A - PIN, WINCH CLUTCH LEVER
90042-50085

LD2#

MECHANICAL

 1
38211 - CLUTCH, WINCH
38211-87601

LD2#

MECHANICAL

 1
38213 - SPACER, CLUTCH FEATHER KEY
90043-89022

LD2#

MECHANICAL

 2
38213 - SPACER, CLUTCH FEATHER KEY
90043-89022

LD2#

MECHANICAL

 2
38221 - LEVER, CLUTCH HUB SHIFT
38221-60040

LD2#

ELECTRICAL

 1
38221-87601

LD2#

MECHANICAL

 1
38221B - PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER)
90042-54039

LD2#

MECHANICAL

 2
38221B - PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER)
90042-54039

LD2#

MECHANICAL

 2
38222 - LEVER, WINCH CLUTCH, LOWER
38222-87601

LD2#

MECHANICAL

 1
38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER)
90045-01245

LD2#

MECHANICAL

 1
38225 - KNOB, WINCH CLUTCH LEVER
38225-60040

LD2#

ELECTRICAL

 1
38225-87601

LD2#

MECHANICAL

 1
38226 - PIN, LEVER SHIFT LOCK
38226-87602

LD2#

MECHANICAL

 1
38226A - SPRING, LEVER SHIFT LOCK PIN
90045-01244

LD2#

MECHANICAL

 1
38226B - PIN, CLUTCH SHIFT LEVER LOCK
38226-60040

LD2#

ELECTRICAL

 1
90042-54040

LD2#

MECHANICAL

 1
38231 - SHOE, BRAKE
38231-87602

LD2#

MECHANICAL

 1
38233 - PLATE, BRAKE
38233-87602

LD2#

MECHANICAL

 1
38266 - CHECK, LEVER SHIFT LOCK
38266-87601

LD2#

MECHANICAL

 1
38301 - BRACKET SUB-ASSY, WINCH END
38223-87602

LD2#

MECHANICAL

 1
38301A - BUSH (FOR WINCH END BRACKET)
90043-87063

LD2#

MECHANICAL

 2
38301A - BUSH (FOR WINCH END BRACKET)
90043-87063

LD2#

MECHANICAL

 2
38340 - WIRE ASSY, WINCH CHAIN
38340-60040

LD2#

ELECTRICAL

 1
38340-87602

LD2#

MECHANICAL

 1
38351 - BASE, WINCH
38351-87602

LD2#

MECHANICAL

 1
Common parts
90041-13043
90041-13046
90042-01426
90045-24010
91611-60812
91619-61235
93229-15008
94115-51200
95381-02020
96451-01000
