LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

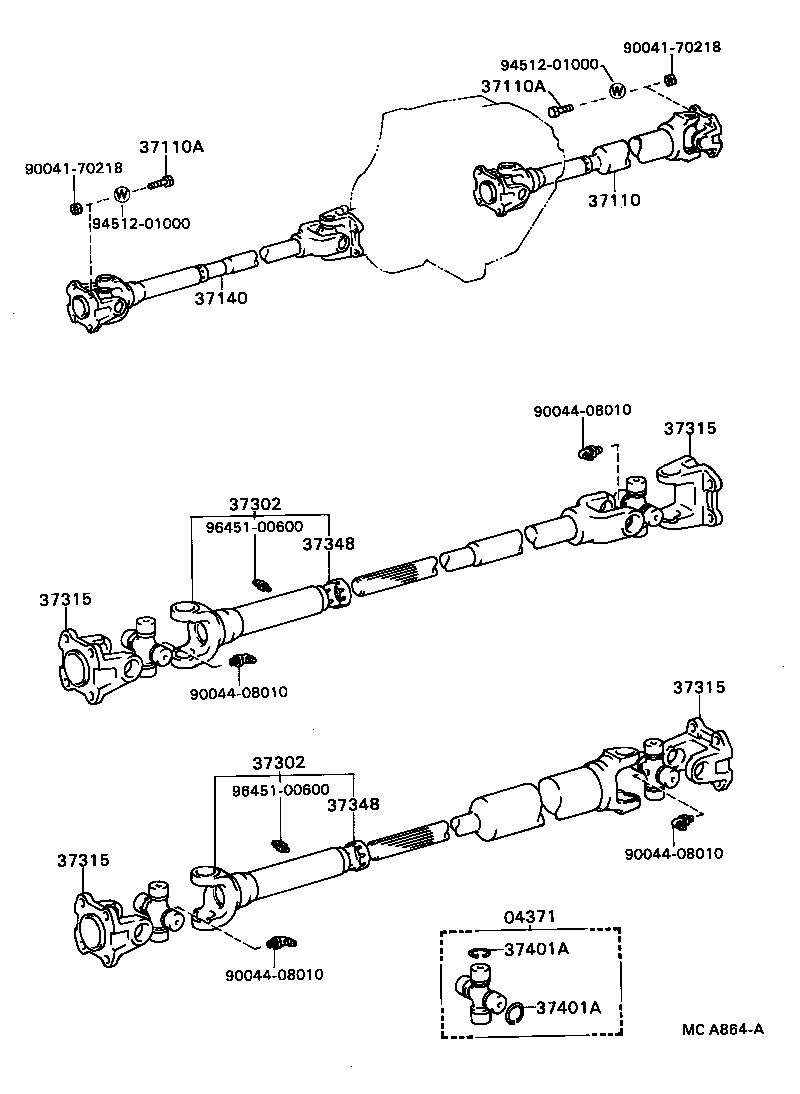

Click highlighted areas on diagram

diagram 04371 37110 37110A 37110A 37140 37302 37302 37315 37315 37315 37315 37348 37348 37401A 37401A 9004170218 9004170218 9004408010 9004408010 9004408010 9004408010 9451201000 9451201000 9645100600 9645100600
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-87303

LD2#

 4
37110 - SHAFT ASSY, PROPELLER
37110-87619

LD2#

 1
37110-87615

LD20

 1
37110-87611

LD20

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90041-01182

LD2#

 16
37110A - BOLT (FOR PROPELLER SHAFT)
90041-01182

LD2#

 16
37140 - SHAFT ASSY, PROPELLER, FRONT
37140-87610

LD20

 1
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-87606

LD2#

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-87606

LD2#

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-87601

LD20

 4
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-87601

LD20

 4
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-87601

LD20

 4
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-87601

LD20

 4
37348 - CAP, RETAINER
90043-13010

LD2#

 2
37348 - CAP, RETAINER
90043-13010

LD2#

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90045-21046

LD2#

厚さ=1.45,T=1.45

 16
90045-21048

LD2#

厚さ=1.55,T=1.55

 16
90045-21047

LD2#

厚さ=1.50,T=1.50

 16
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90045-21046

LD2#

厚さ=1.45,T=1.45

 16
90045-21048

LD2#

厚さ=1.55,T=1.55

 16
90045-21047

LD2#

厚さ=1.50,T=1.50

 16
Common parts
90041-70218
90044-08010
94512-01000
96451-00600
