LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8608)

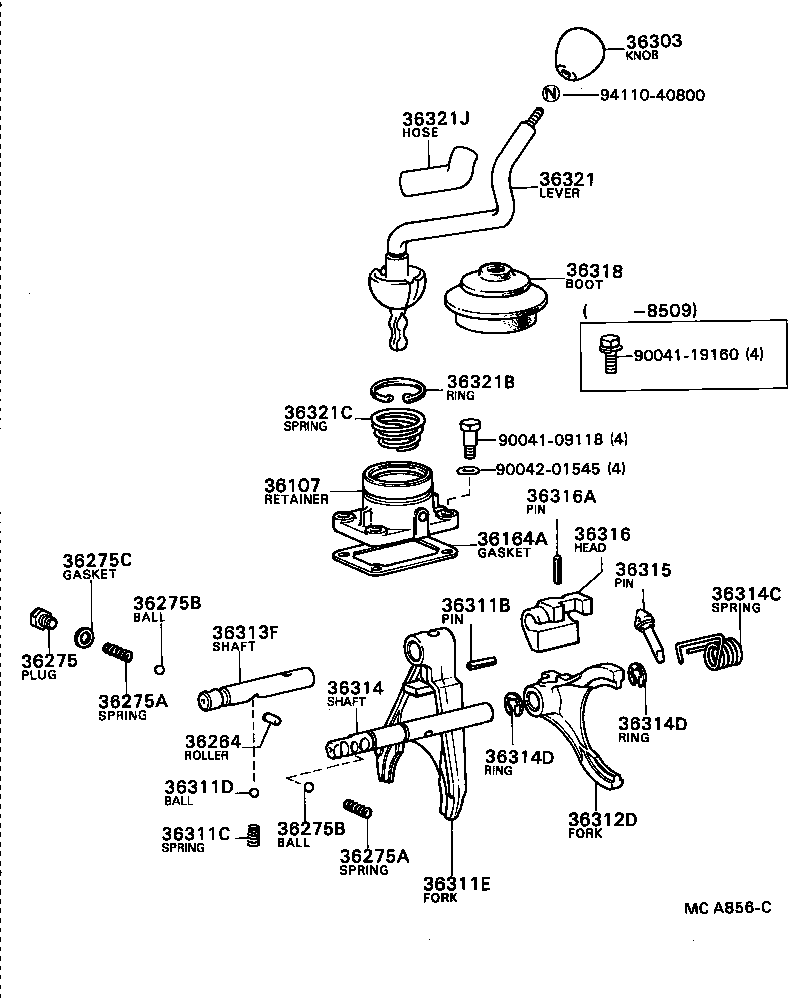

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36107 - RETAINER SUB-ASSY, TRANSFER SHIFT LEVER | ||||
| 36107-87605 |
LD20 |
1 | ||
| 36164A - GASKET, TRANSFER SHIFT LEVER RETAINER | ||||
| 36164-87601 |
LD20 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90043-61012 |
LD2# |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90041-01216 |
LD2# |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01321 |
LD2# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01321 |
LD2# |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD2# |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD2# |
2 | ||
| 36275C - GASKET (FOR SHIFT DETENT BALL SPRING PLUG) | ||||
| 90044-30026 |
LD2# |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-87602 |
LD2# |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90042-54021 |
LD2# |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90045-01284 |
LD2# |
1 | ||
| 36311D - BALL (FOR SHIFT FORK) | ||||
| 90043-60023 |
LD2# |
1 | ||
| 36311E - FORK, TRANSFER FRONT DRIVE SHIFT | ||||
| 36311-87605 |
LD2# |
1 | ||
| 36312D - FORK, TRANSFER HIGH & LOW SHIFT | ||||
| 36312-87606 |
LD2# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-87603 |
LD2# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-87606 |
LD2# |
1 | ||
| 36314C - SPRING (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 90045-08131 |
LD2# |
1 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD2# |
2 | ||
| 36314D - RING, E (FOR TRANSFER SHIFT FORK SHAFT) | ||||
| 96160-01200 |
LD2# |
2 | ||
| 36315 - PIN, TRANSFER FORK SHAFT | ||||
| 36315-87602 |
LD2# |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-87601 |
LD2# |
1 | ||
| 36316A - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT HEAD) | ||||
| 90042-54022 |
LD2# |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36318-87601 |
LD2# |
1 | ||
| 36321 - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36321-87615 |
LD2# |
1 | ||
| 36321-87612 |
LD20 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90045-21030 |
LD2# |
1 | ||
| 36321C - SPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT) | ||||
| 90045-02014 |
LD2# |
1 | ||
| 36321J - HOSE (FOR TRANSFER SHIFT LEVER) | ||||
| 90044-45883 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-09118 | ||||
| 90041-19160 | ||||
| 90042-01545 | ||||
| 94110-40800 | ||||
(8608- )

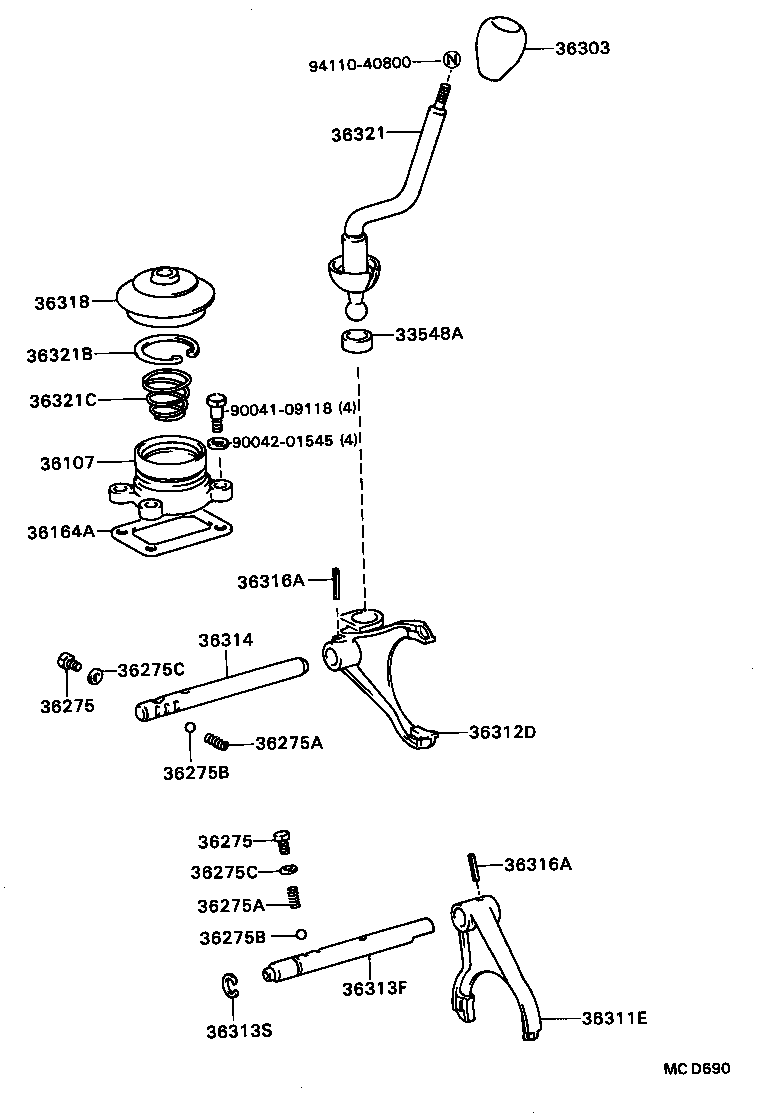

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33548A - BUSH, TRANSFER SHIFT LEVER | ||||
| 33548-31010 |
LD2# |
1 | ||
| 36107 - RETAINER SUB-ASSY, TRANSFER SHIFT LEVER | ||||
| 36107-87605 |
LD20 |
1 | ||
| 36164A - GASKET, TRANSFER SHIFT LEVER RETAINER | ||||
| 36164-87601 |
LD20 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90041-01216 |
LD2# |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90041-01216 |
LD2# |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01321 |
LD2# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01321 |
LD2# |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD2# |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90043-60003 |
LD2# |
2 | ||
| 36275C - GASKET (FOR SHIFT DETENT BALL SPRING PLUG) | ||||
| 90044-30026 |
LD2# |
1 | ||
| 36275C - GASKET (FOR SHIFT DETENT BALL SPRING PLUG) | ||||
| 90044-30026 |
LD2# |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-87602 |
LD2# |
1 | ||
| 36311E - FORK, TRANSFER FRONT DRIVE SHIFT | ||||
| 36311-87605 |
LD2# |
1 | ||
| 36312D - FORK, TRANSFER HIGH & LOW SHIFT | ||||
| 36312-87606 |
LD2# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-87603 |
LD2# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-87606 |
LD2# |
1 | ||
| 36316A - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT HEAD) | ||||
| 90042-54022 |
LD2# |
1 | ||
| 36316A - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT HEAD) | ||||
| 90042-54022 |
LD2# |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36318-87601 |
LD2# |
1 | ||
| 36321 - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36321-87615 |
LD2# |
1 | ||
| 36321-87612 |
LD20 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90045-21030 |
LD2# |
1 | ||
| 36321C - SPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT) | ||||
| 90045-02014 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-09118 | ||||
| 90042-01545 | ||||
| 94110-40800 | ||||
