LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

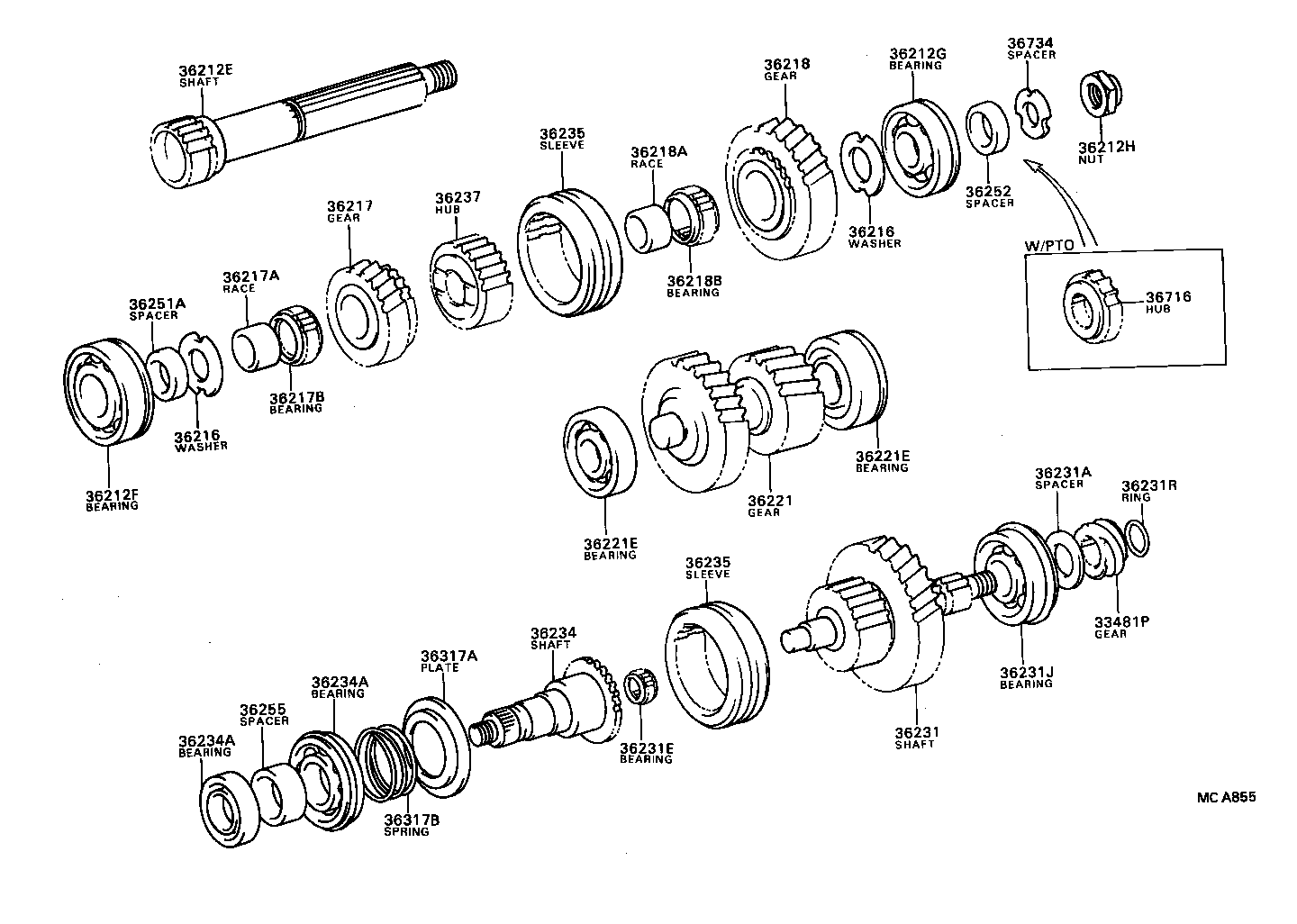

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-87606 |
LD2# |
1 | ||
| 36212E - SHAFT, TRANSFER INPUT | ||||
| 36212-87602 |
LD2# |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90043-63084 |
LD20..DSL |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90043-63066 |
LD2# |
1 | ||
| 36212H - NUT, LOCK (FOR TRANSFER INPUT SHAFT) | ||||
| 90041-78018 |
LD2# |
1 | ||
| 36216 - WASHER, TRANSFER INPUT GEAR THRUST | ||||
| 36216-87603 |
LD2# |
2 | ||
| 36216 - WASHER, TRANSFER INPUT GEAR THRUST | ||||
| 36216-87603 |
LD2# |
2 | ||
| 36217 - GEAR, TRANSFER LOW SPEED INPUT | ||||
| 36217-87605 |
LD2# |
1 | ||
| 36217A - RACE, TRANSFER INPUT LOW SPEED GEAR BEARING, INNER | ||||
| 36219-87603 |
LD2# |
1 | ||
| 36217B - BEARING (FOR INPUT HIGH SPEED GEAR) | ||||
| 90043-64023 |
LD2# |
1 | ||
| 36218 - GEAR, TRANSFER HI SPEED INPUT | ||||
| 36218-87614 |
LD2# |
1 | ||
| 36218A - RACE, TRANSFER INPUT HIGH SPEED GEAR BEARING, INNER | ||||
| 36219-87603 |
LD2# |
1 | ||
| 36218B - BEARING (FOR INPUT LOW SPEED GEAR) | ||||
| 90043-64023 |
LD2# |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-87608 |
LD2# |
1 | ||
| 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) | ||||
| 90043-63073 |
LD20..DSL RR |
1 | ||
| 97100-06306 |
LD2# FR |
1 | ||
| 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) | ||||
| 90043-63073 |
LD20..DSL RR |
1 | ||
| 97100-06306 |
LD2# FR |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36203-87603 |
LD2# |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36273-87602 |
LD2# |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90043-64024 |
LD2# |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90043-63059 |
LD20..DSL |
1 | ||
| 36231R - RING, O (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96711-35030 |
LD2# |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-87603 |
LD2# |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 97100-06007 |
LD2# FR |
1 | ||
| 97153-06208 |
LD2# RR |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 97100-06007 |
LD2# FR |
1 | ||
| 97153-06208 |
LD2# RR |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 33363-87304 |
LD2# |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 33363-87304 |
LD2# |
2 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36238-87603 |
LD2# |
1 | ||
| 36251A - SPACER, TRANSFER INPUT SHAFT, NO.1 | ||||
| 36251-87602 |
LD2# |
1 | ||
| 36252 - SPACER, TRANSFER INPUT SHAFT, NO.2 | ||||
| 36252-87602 |
LD2# |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-87601 |
LD2# |
1 | ||
| 36317A - PLATE, FRONT DRIVE DISENGAGE | ||||
| 36317-87601 |
LD2# |
1 | ||
| 36317B - SPRING, COMPRESSION (FOR FRONT DRIVE DISENGAGE PLATE) | ||||
| 90045-01285 |
LD2# |
1 | ||
| 36716 - HUB, POWER TAKE-OFF CLUTCH | ||||
| 36716-87603 |
LD2# W/PTO |
1 | ||
| 36734 - SPACER, TRANSFER INPUT SHAFT, NO.3 | ||||
| 36734-87602 |
LD2# |
1 | ||
