LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

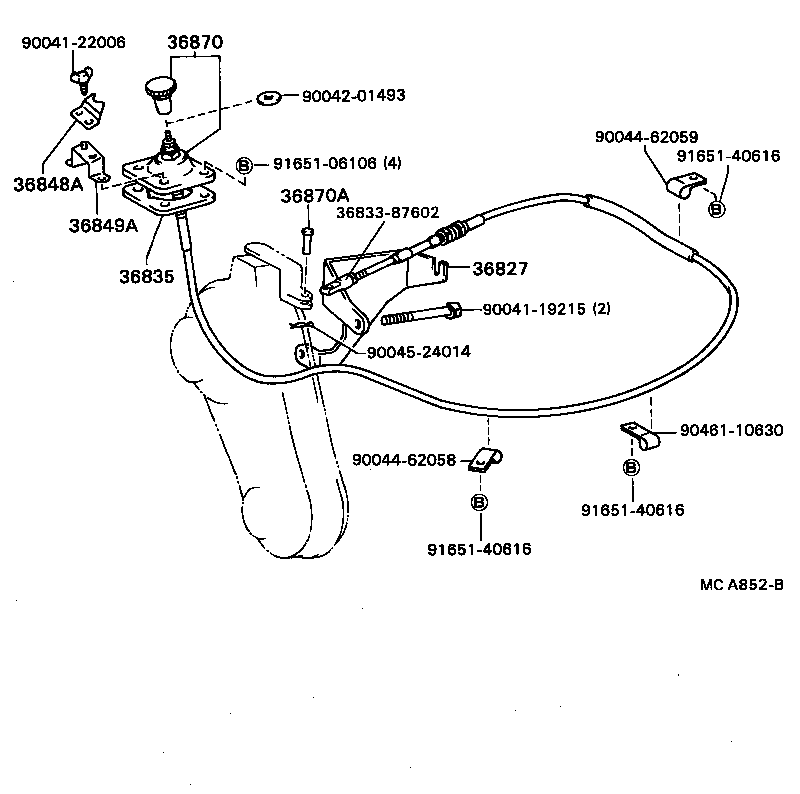

Click highlighted areas on diagram

diagram 36827 3683387602 36835 36848A 36849A 36870 36870A 9004119215 9004122006 9004201493 9004462058 9004462059 9004524014 9046110630 9165106106 9165140616 9165140616 9165140616
Part # Description Qty Price
36827 - BRACKET, POWER TAKE-OFF CABLE
36827-87601

LD2#

 1
36835 - PACKING, POWER TAKE-OFF SHIFT LEVER BOOT
36835-87603

LD2#

 1
36848A - PLATE, POWER TAKE-OFF SHIFT LEVER LOCK
36848-87603

LD2#

 1
36849A - BRACKET, POWER TAKE-OFF SHIFT LEVER LOCK
36849-87602

LD2#

 1
36870 - CABLE ASSY, POWER TAKE-OFF
36870-87603

LD2#

 1
36870A - PIN (FOR POWER TAKE-OFF CABLE)
90042-40027

LD2#

 1
Common parts
36833-87602
90041-19215
90041-22006
90042-01493
90044-62058
90044-62059
90045-24014
90461-10630
91651-06106
91651-40616
