LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

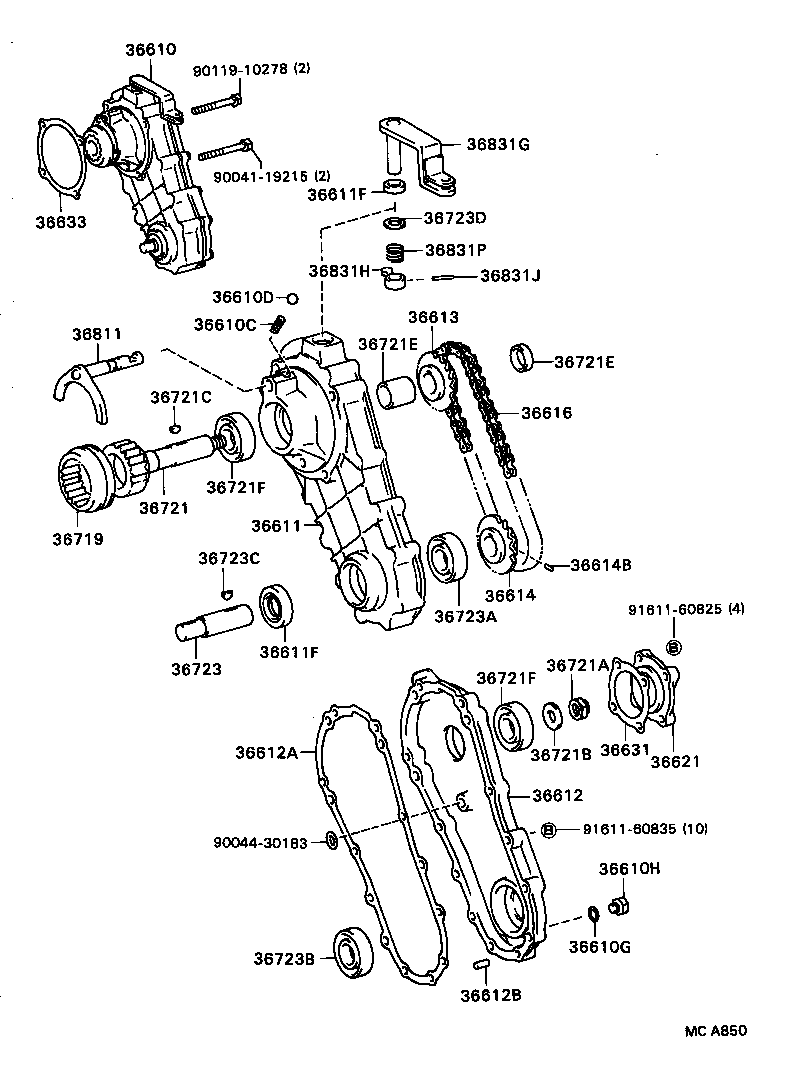

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-87612 |
LD2# |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90045-01317 |
LD2# |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90043-60021 |
LD2# |
1 | ||
| 36610G - GASKET (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 90044-30120 |
LD2# |
1 | ||
| 36610H - PLUG (FOR FRONT POWER TAKE-OFF DRAIN) | ||||
| 90043-41011 |
LD2# |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-87607 |
LD2# |
1 | ||
| 36611F - SEAL, OIL (FOR POWER TAKE-OFF CASE) | ||||
| 90043-11129 |
LD2# OUTPUT SHAFT |
1 | ||
| 90043-11169 |
LD2# POWER TAKE-OFF SHIFT LEVER |
1 | ||
| 36611F - SEAL, OIL (FOR POWER TAKE-OFF CASE) | ||||
| 90043-11129 |
LD2# OUTPUT SHAFT |
1 | ||
| 90043-11169 |
LD2# POWER TAKE-OFF SHIFT LEVER |
1 | ||
| 36612 - CASE, POWER TAKE-OFF REAR | ||||
| 36612-87604 |
LD2# |
1 | ||
| 36612A - GASKET, POWER TAKE-OFF COVER | ||||
| 36633-87603 |
LD2# |
1 | ||
| 36612B - PIN, STRAIGHT (FOR POWER TAKE-OFF COVER) | ||||
| 90042-50101 |
LD2# |
2 | ||
| 36613 - SPROCKET, POWER TAKE-OFF, NO.1 | ||||
| 36613-87603 |
LD2# |
1 | ||
| 36614 - SPROCKET, POWER TAKE-OFF, NO.2 | ||||
| 36614-87603 |
LD2# |
1 | ||
| 36614B - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SPROCKET) | ||||
| 90042-54039 |
LD2# |
1 | ||
| 36616 - CHAIN, POWER TAKE-OFF | ||||
| 36616-87603 |
LD2# |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-87602 |
LD2# |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-87602 |
LD2# |
1 | ||
| 36633 - GASKET, POWER TAKE-OFF | ||||
| 36632-87601 |
LD2# |
1 | ||
| 36719 - CLUTCH, POWER TAKE-OFF INPUT | ||||
| 36719-87601 |
LD2# |
1 | ||
| 36721 - SHAFT, POWER TAKE-OFF INPUT GEAR | ||||
| 36721-87605 |
LD2# |
1 | ||
| 36721A - NUT, CASTLE (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 90041-78016 |
LD2# |
1 | ||
| 36721B - WASHER, PLATE (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 90042-01425 |
LD2# |
1 | ||
| 36721C - KEY, WOODRUFF (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 90042-80007 |
LD2# |
1 | ||
| 36721E - COLLER (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 90043-89023 |
LD2# L=41,FR |
1 | ||
| 90043-89036 |
LD2# L=10,RR |
1 | ||
| 36721E - COLLER (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 90043-89023 |
LD2# L=41,FR |
1 | ||
| 90043-89036 |
LD2# L=10,RR |
1 | ||
| 36721F - BEARING (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 97100-06205 |
LD2# |
2 | ||
| 36721F - BEARING (FOR POWER TAKE-OFF INPUT SHAFT) | ||||
| 97100-06205 |
LD2# |
2 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-87601 |
LD2# |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
LD2# |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06205 |
LD2# |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90042-80007 |
LD2# |
1 | ||
| 36723D - WASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 94611-11400 |
LD2# |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36801-87603 |
LD2# |
1 | ||
| 36831G - LEVER, POWER TAKE-OFF SHIFT, NO.1 | ||||
| 36807-87601 |
LD2# |
1 | ||
| 36831H - LEVER, POWER TAKE-OFF SHIFT, NO.2 | ||||
| 36831-87501 |
LD2# |
1 | ||
| 36831J - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT LEVER) | ||||
| 90042-54039 |
LD2# |
1 | ||
| 36831P - SPRING, COMPRESSION (FOR POWER TAKE-OFF SHIFT LEVER) | ||||
| 90045-01316 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-19215 | ||||
| 90044-30183 | ||||
| 90119-10278 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
