LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

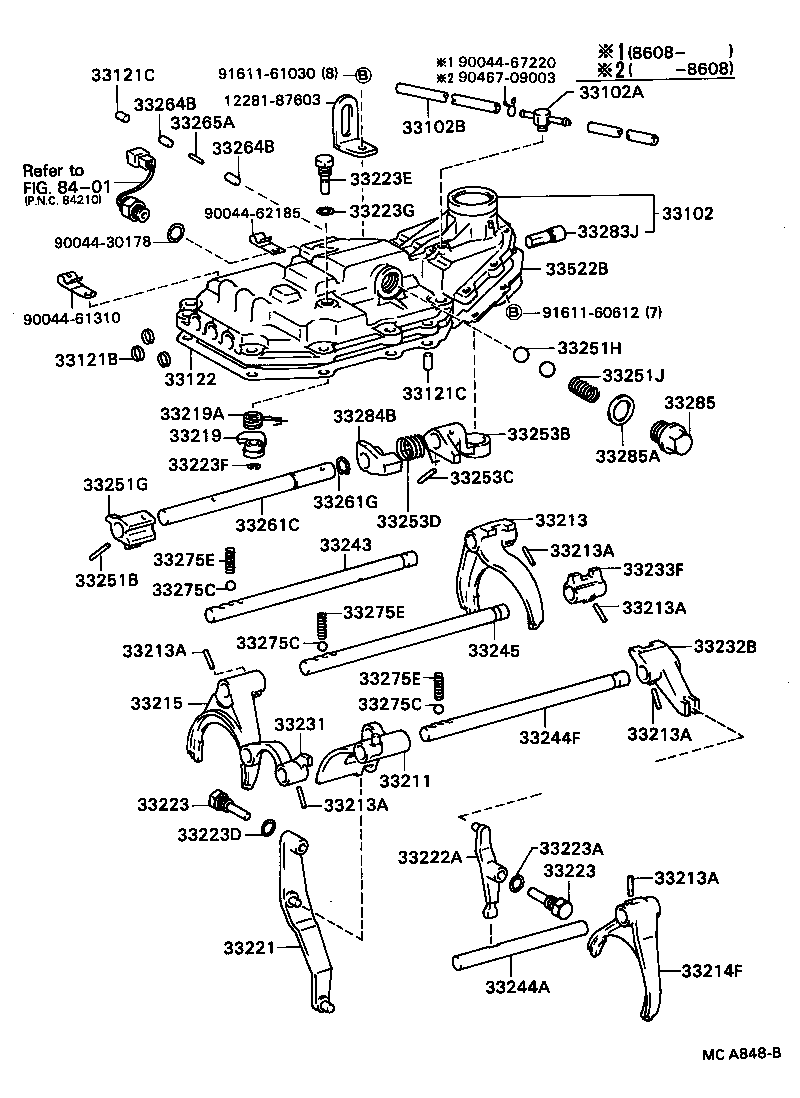

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-87610 |
LD2# |
1 | ||
| 33102A - UNION, BREATHER(FOR TRANSMISSION CASE COVER) | ||||
| 90044-05104 |
LD2# |
1 | ||
| 33102B - HOSE, BREATHER(FOR TRANSMISSION CASE COVER) | ||||
| 90044-46387 |
LD2# |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-11400 |
LD2# |
3 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90042-50003 |
LD2# OD=10,L=24 |
2 | ||
| 90042-50074 |
LD2# OD=8,L=12 |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90042-50003 |
LD2# OD=10,L=24 |
2 | ||
| 90042-50074 |
LD2# OD=8,L=12 |
1 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-87602 |
LD2# |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-87602 |
LD2# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-87601 |
LD2# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD2# |
6 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-87303 |
LD2# |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-87602 |
LD2# |
1 | ||
| 33219 - PLATE, SHIFT FORK LOCK | ||||
| 33219-87601 |
LD2# |
1 | ||
| 33219A - SPRING, TORSION(FOR SHIFT FORK LOCK PLATE) | ||||
| 90045-08182 |
LD2# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-87602 |
LD2# |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-87302 |
LD2# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-87302 |
LD2# |
2 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-87302 |
LD2# |
2 | ||
| 33223A - WASHER(FOR SHIFT ARM PIVOT) | ||||
| 90042-01391 |
LD2# |
1 | ||
| 33223D - GASKET(FOR SHIFT ARM PIVOT) | ||||
| 90044-30097 |
LD2# |
1 | ||
| 33223E - PIVOT, SHIFT FORK LOCK PLATE | ||||
| 33223-87602 |
LD2# |
1 | ||
| 33223F - RING, E(FOR SHIFT FORK LOCK PLATE PIVOT) | ||||
| 96160-00800 |
LD2# |
1 | ||
| 33223G - GASKET(FOR SHIFT FORK LOCK PLATE PIVOT) | ||||
| 90044-30097 |
LD2# |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33235-87601 |
LD2# |
1 | ||
| 33232B - HEAD, 5TH SHIFT | ||||
| 33234-87601 |
LD2# |
1 | ||
| 33233F - HEAD, 3RD & 4TH SHIFT | ||||
| 33233-87602 |
LD2# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-87601 |
LD2# |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-87302 |
LD2# |
1 | ||
| 33244F - SHAFT,5TH & REVERSE SHIFT | ||||
| 33247-87602 |
LD2# |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-87603 |
LD2# |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90042-54022 |
LD2# |
1 | ||
| 33251G - LEVER, SHIFT, INNER | ||||
| 33251-87601 |
LD2# |
1 | ||
| 33251H - BALL (FOR SHIFT INNER LEVER) | ||||
| 90043-60012 |
LD2# |
2 | ||
| 33251J - SPRING, COMPRESSION (FOR SHIFT INNER LEVER) | ||||
| 90045-01314 |
LD2# |
1 | ||
| 33253B - LEVER, SHIFT, OUTER | ||||
| 33253-87601 |
LD2# |
1 | ||
| 33253C - PIN, SLOTTED SPRING (FOR SHIFT OUTER LEVER) | ||||
| 90042-54022 |
LD2# |
1 | ||
| 33253D - SPRING, TORSION (FOR SHIFT OUTER LEVER) | ||||
| 90045-08183 |
LD2# |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-87601 |
LD2# |
1 | ||
| 33261G - RING, SNAP (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 96150-01600 |
LD2# |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90043-61010 |
LD2# |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90043-61010 |
LD2# |
2 | ||
| 33265A - ROLLER, NO.2 (FOR INTER LOCK) | ||||
| 90043-61011 |
LD2# |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90043-60003 |
LD2# |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90043-60003 |
LD2# |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90043-60003 |
LD2# |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01023 |
LD2# |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01023 |
LD2# |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90045-01023 |
LD2# |
3 | ||
| 33283J - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-87601 |
LD2# |
1 | ||
| 33284B - PIN, REVERSE RESTRICT, NO.2 | ||||
| 33284-87601 |
LD2# |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-87601 |
LD2# |
1 | ||
| 33285A - GASKET (FOR REVERSE RESTRICT PIN HOLDER) | ||||
| 90044-30204 |
LD2# |
1 | ||
| 33522B - COVER, SHIFT LEVER HOUSING DUST | ||||
| 33522-87601 |
LD2# |
1 | ||
| Common parts | ||||
| 12281-87603 | ||||
| 90044-30178 | ||||
| 90044-61310 | ||||
| 90044-62185 | ||||
| 90044-67220 | ||||
| 90467-09003 | ||||
| 91611-60612 | ||||
| 91611-61030 | ||||
| Linked diagrams | ||||
| 8401 | ||||
