LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

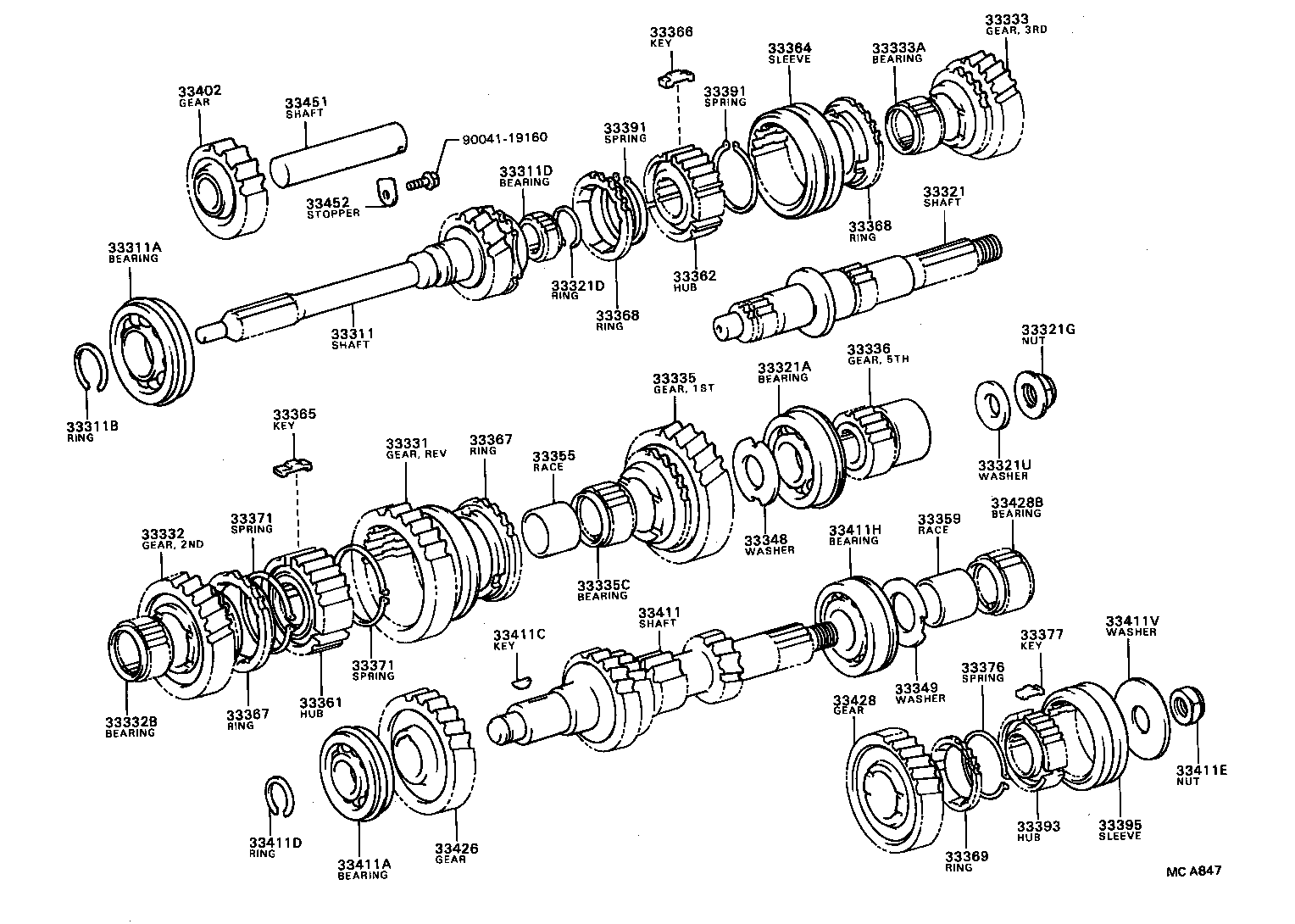

Click highlighted areas on diagram

diagram 33311 33311A 33311B 33311D 33321 33321A 33321D 33321G 33321U 33331 33332 33332B 33333 33333A 33335 33335C 33336 33348 33349 33355 33359 33361 33362 33364 33365 33366 33367 33367 33368 33368 33369 33371 33371 33376 33377 33391 33391 33393 33395 33402 33411 33411A 33411C 33411D 33411E 33411H 33411V 33426 33428 33428B 33451 33452 9004119160
Part # Description Qty Price
33311 - SHAFT, INPUT
33311-87609

LD2#

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90043-63072

LD2#

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90045-20079

LD2#

 1
33311D - BEARING, INPUT SHAFT
90043-64037

LD2#

 1
33321 - SHAFT, OUTPUT
33321-87605

LD2#

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90043-63059

LD2#

 1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90045-20080

LD2#

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90041-78031

LD2#

 1
33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
90042-08010

LD2#

 1
33331 - GEAR, REVERSE
33331-87311

LD2#

 1
33332 - GEAR, 2ND
33332-87305

LD2#

 1
33332-87601

LD2#

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90043-64031

LD2#

 1
33333 - GEAR, 3RD
33333-87608

LD2#

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90043-64032

LD2#

 1
33335 - GEAR, 1ST
33335-87603

LD2#

 1
33335-87604

LD2#

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90043-64031

LD2#

 1
33336 - GEAR, 5TH
33036-87601

LD2#

 1
33348 - WASHER, 1ST GEAR THRUST
33348-87303

LD2#

 1
33349 - WASHER, 5TH GEAR THRUST
33348-87303

LD2#

 1
33355 - RACE, 1ST GEAR BEARING INNER
33355-87302

LD2#

 1
33359 - RACE, 5TH GEAR BEARING INNER
33359-87302

LD2#

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-87302

LD2#

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-87303

LD2#

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33363-87304

LD2#

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-87303

LD2#

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-87303

LD2#

 3
33367 - RING, SYNCHRONIZER, NO.1
33367-87602

LD2#

1ST GEAR

 1
33368-87601

LD2#

2ND GEAR

 1
33368-87602

LD2#

2ND GEAR

 1
33367-87601

LD2#

1ST GEAR

 1
33367 - RING, SYNCHRONIZER, NO.1
33367-87602

LD2#

1ST GEAR

 1
33368-87601

LD2#

2ND GEAR

 1
33368-87602

LD2#

2ND GEAR

 1
33367-87601

LD2#

1ST GEAR

 1
33368 - RING, SYNCHRONIZER, NO.2
33369-87601

LD2#

 2
33368 - RING, SYNCHRONIZER, NO.2
33369-87601

LD2#

 2
33369 - RING, SYNCHRONIZER, NO.3
33369-87601

LD2#

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87303

LD2#

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-87303

LD2#

 2
33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391-87303

LD2#

 1
33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33366-87303

LD2#

 3
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391-87303

LD2#

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391-87303

LD2#

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33362-87303

LD2#

 1
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33363-87304

LD2#

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-87311

LD2#

 1
33411 - COUNTERSHAFT
33411-87612

LD20

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90043-63085

LD2#

 1
33411C - KEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
90042-80023

LD2#

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90045-20081

LD2#

 1
33411E - NUT(FOR COUNTER GEAR SHAFT)
90041-78018

LD2#

 1
90041-78010

LD20

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
97180-06307

LD2#

 1
33411V - WASHER, PLATE(FOR COUNTER GEAR SHAFT)
90042-01411

LD20

 1
33426 - GEAR, COUNTER SHAFT DRIVE
33421-87601

LD20..DSL

 1
33428 - GEAR, COUNTERSHAFT 5TH
33428-87601

LD2#

 1
33428B - BEARING (FOR COUNTER 5TH GEAR)
90043-64032

LD2#

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-87605

LD2#

 1
33452 - STOPPER, REVERSE IDLER GEAR SHAFT
33452-87601

LD2#

 1
Common parts
90041-19160
