LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

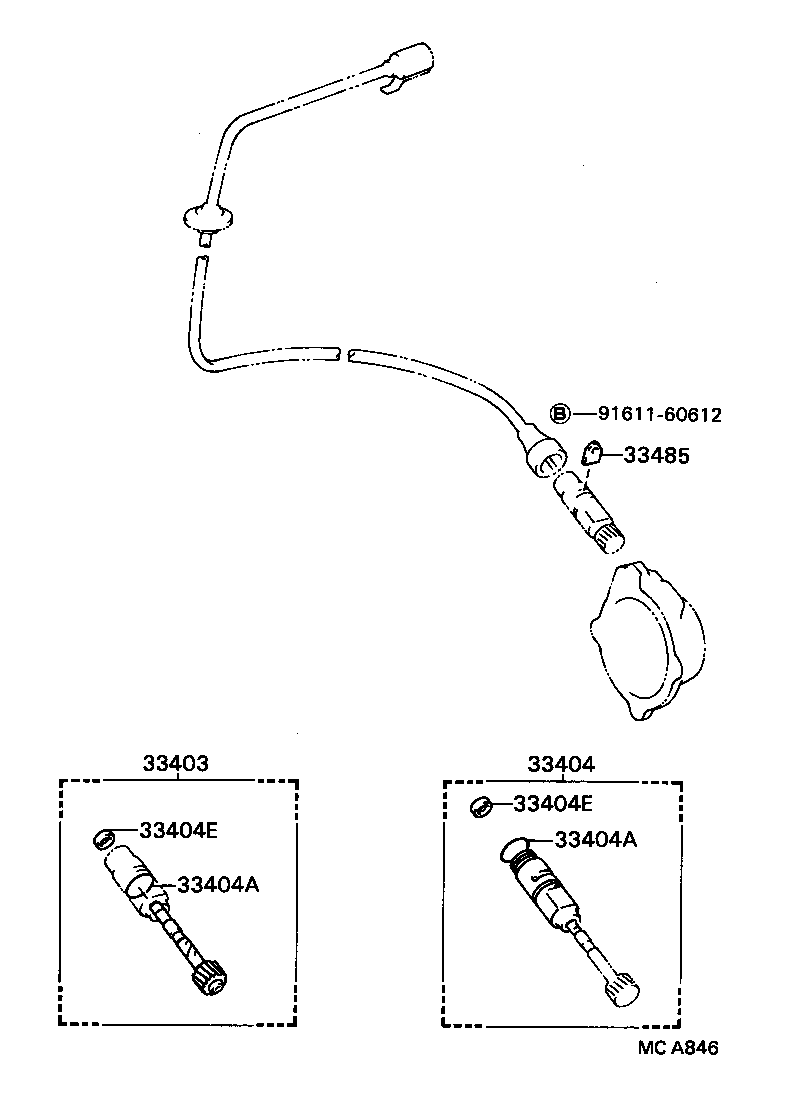

Click highlighted areas on diagram

diagram 33403 33404 33404A 33404A 33404E 33404E 33485 9161160612
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-87686

LD2#

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-87319

LD2#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24020

LD2#

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24020

LD2#

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90043-12001

LD2#

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90043-12001

LD2#

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-87601

LD2#

 1
Common parts
91611-60612
