LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

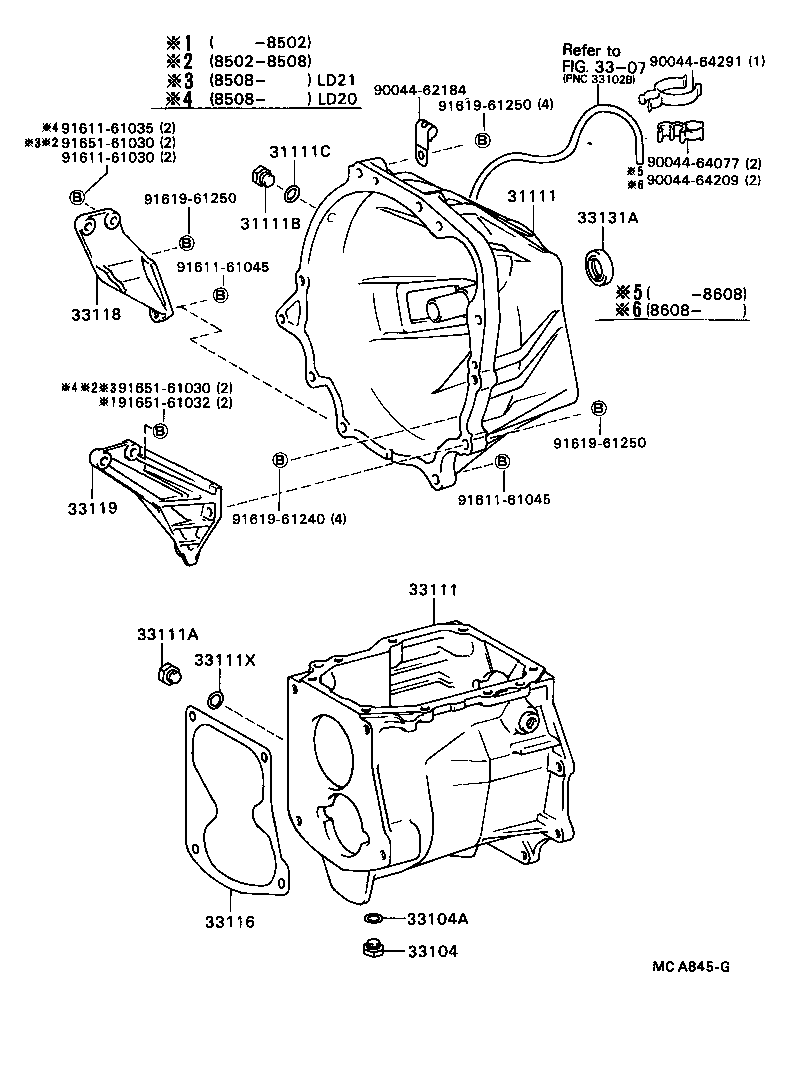

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-87612 |
LD2# |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LD2# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
LD2# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-87602 |
LD2# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18049 |
LD2# |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
LD2# |
1 | ||
| 33116 - GASKET, MANUAL TRANSMISSION CASE | ||||
| 33116-87302 |
LD20 |
1 | ||
| 33116-87303 |
LD20 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-87602 |
LD2# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LD2# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90043-11141 |
LD2# |
1 | ||
| Common parts | ||||
| 90044-62184 | ||||
| 90044-64077 | ||||
| 90044-64209 | ||||
| 90044-64291 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61240 | ||||
| 91619-61250 | ||||
| 91651-61030 | ||||
| 91651-61032 | ||||
| Linked diagrams | ||||
| 3307 | ||||
