LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

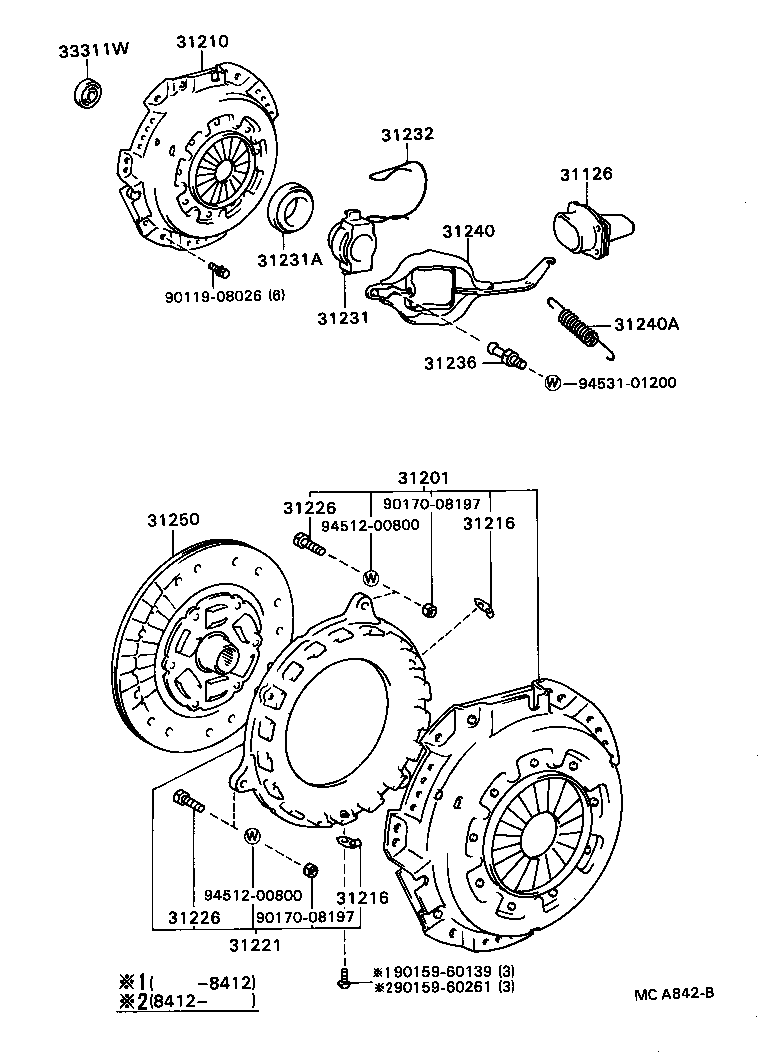

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-87602 |
LD2# |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-19095 |
LD20..DSL |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35090 |
LD20..DSL |
1 | ||
| 31210-14130 |
LD20..DSL |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LD2# |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LD2# |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39056 |
LD20..DSL |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
LD2# |
3 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
LD2# |
3 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-87602 |
LD2# |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
LD2# |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-87606 |
LD20 |
1 | ||
| 31232-87604 |
LD20 |
1 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-87304 |
LD20 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-87603 |
LD20 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90045-06168 |
LD2# |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-26050 |
LD20 |
1 | ||
| 31250-26051 |
LD20..DSL |
1 | ||
| 31250-26150 |
LD2# |
1 | ||
| 31250-60160 |
LD2# |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
LD2# |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90159-60139 | ||||
| 90159-60261 | ||||
| 90170-08197 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||
