LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

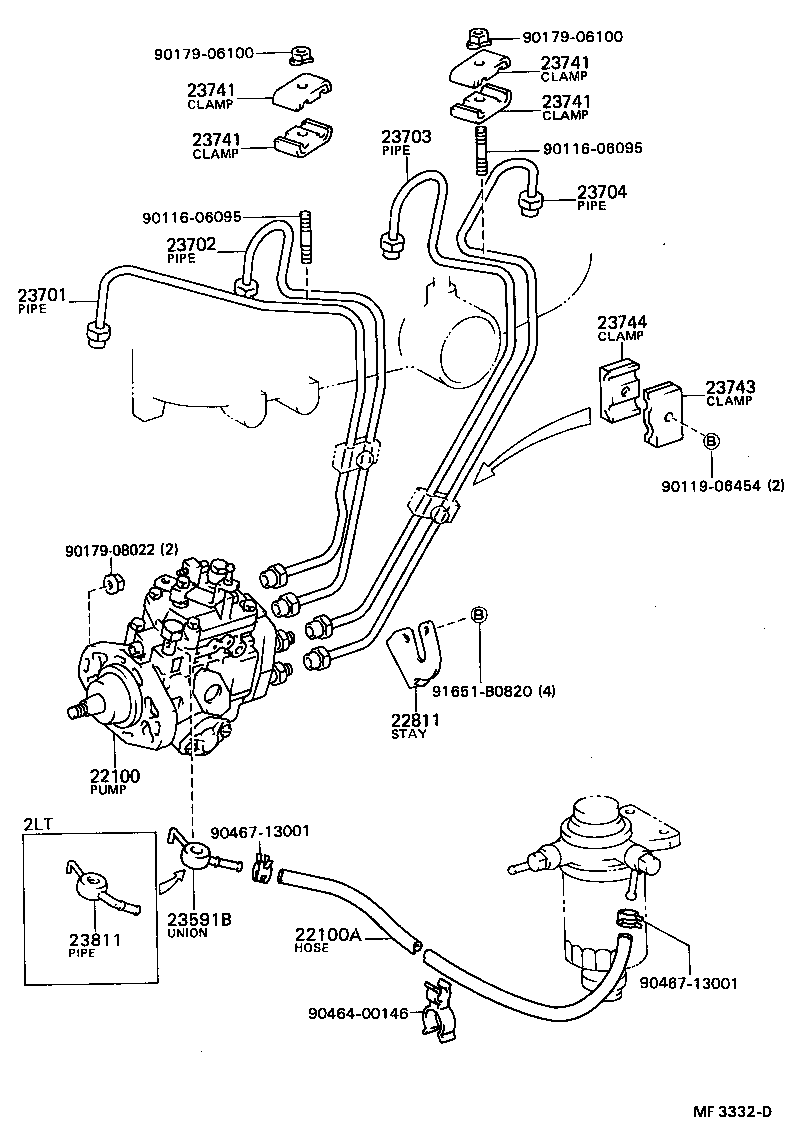

Click highlighted areas on diagram

diagram 22100 22100A 22811 23591B 23701 23702 23703 23704 23741 23741 23741 23741 23743 23744 23811 9011606095 9011606095 9011906454 9017906100 9017906100 9017908022 9046400146 9046713001 9046713001 91651B0820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54311

2L..LD20

 1
22100-54310

2L..LD20

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08060

2L..LD20

*H,L=600,ε†…εΎ„=7.6

 1
95333-08060

2L..LD20

長さ=600

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L#..LD2#

 1
23591B - UNION(FOR INJECTION PUNP INLET)
23591-54010

2L..LD20

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54082

2L#..LD2#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54081

2L#..LD2#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54050

2L..LD20

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54050

2L..LD20

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L#..LD2#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L#..LD2#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L#..LD2#

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

2L#..LD2#

 4
23743 - CLAMP, INJECTION PIPE, NO.3
23741-54010

2L#..LD2#

 2
23744 - CLAMP, INJECTION PIPE, NO.4
23742-54010

2L#..LD2#

 2
Common parts
90116-06095
90119-06454
90179-06100
90179-08022
90464-00146
90467-13001
91651-B0820
