LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-8911)2L

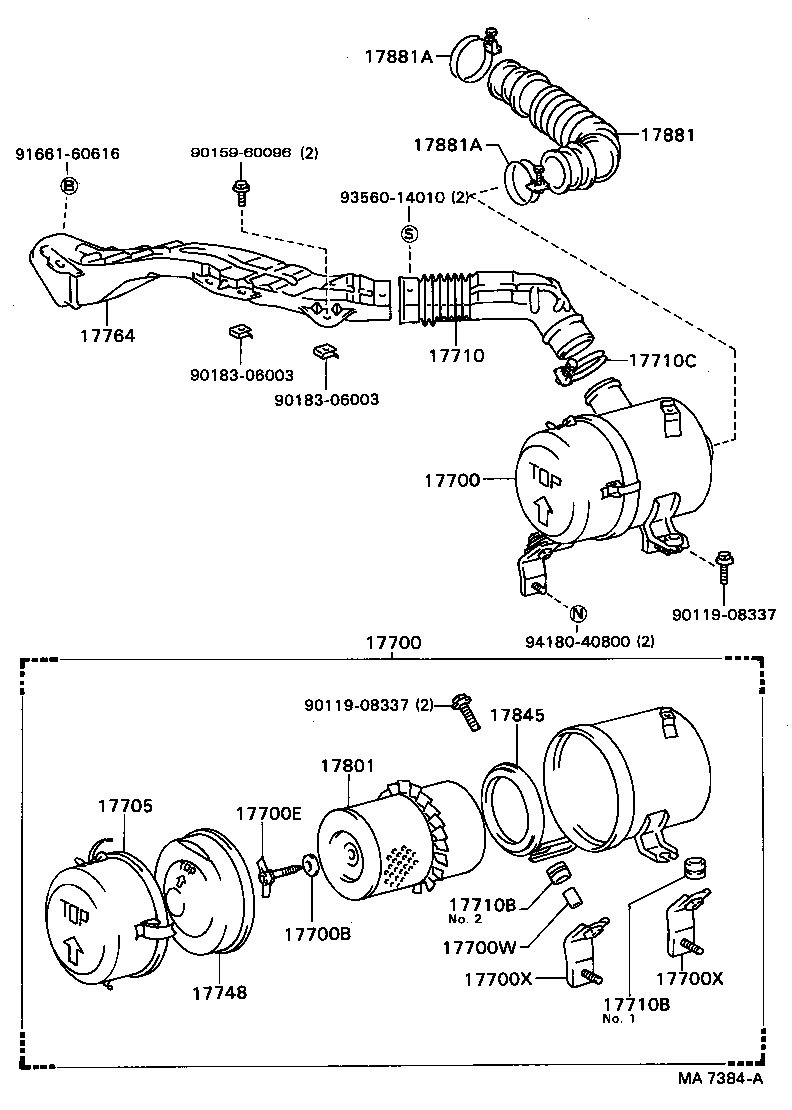

Click highlighted areas on diagram

diagram 17700 17700 17700B 17700E 17700W 17700X 17700X 17705 17710 17710B 17710B 17710C 17748 17764 17801 17845 17881 17881A 17881A 9011908337 9011908337 9015960096 9018306003 9018306003 9166160616 9356014010 9418040800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-87629

2L..LD20

 1
17700 - CLEANER ASSY, AIR
17700-87629

2L..LD20

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09006

2L#..LD2#

 1
17700E - BOLT, WING(FOR AIR CLEANER)
90122-10002

2L#..LD2#

 1
17700W - SPACER(FOR AIR CLEANER)
90045-60124

2L#..LD2#

 3
17700X - BRACKET, AIR CLEANER
17771-87602

2L#..LD2#

 2
17700X - BRACKET, AIR CLEANER
17771-87602

2L#..LD2#

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17703-87602

2L#..LD20

 1
17703-87603

2L..LD20

 1
17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1
52812-87601

2L..LD20

 1
52812-87603

2L..LD20

 1
17710B - GROMMET
90044-80296

2L#..LD2#

NO.1

 1
90044-80315

2L#..LD2#

NO.2

 2
17710B - GROMMET
90044-80296

2L#..LD2#

NO.1

 1
90044-80315

2L#..LD2#

NO.2

 2
17710C - CLAMP(FOR AIR CLEANER INLET DUCT)
96111-10710

2L#..LD2#

 1
17748 - BAFFLE, AIR CLEANER
17748-87602

2L#..LD2#

 1
17764 - DUCT, AIR CLEANER
52811-87603

2L..LD20

 1
52811-87601

2L..LD20

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-87304

2L#..LD2#

 1
17845 - GASKET, AIR CLEANER CAP
17846-87301

2L#..LD2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-87607

2L..LD20

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2L..LD20

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2L..LD20

 2
Common parts
90119-08337
90159-60096
90183-06003
91661-60616
93560-14010
94180-40800
